  6. Outlet Strip, Rack Mounted, 4 5-15R-HG, 5-15P-HG, 7 ft., White

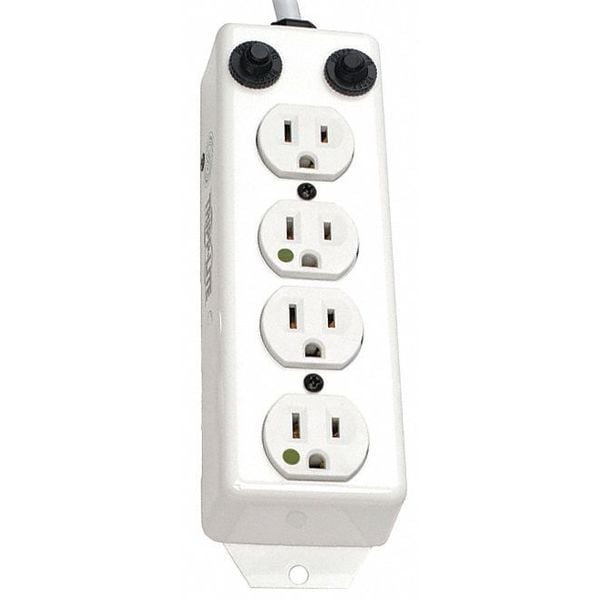

Tripp Lite Outlet Strip, Rack Mounted, 4 5-15R-HG, 5-15P-HG, 7 ft., White PS-407-HG-OEM - main

Outlet Strip, Rack Mounted, 4 5-15R-HG, 5-15P-HG, 7 ft., White

  • Mfr # PS-407-HG-OEM

  • Zoro # G0744088

product price:  $94.35
/ea
Free Shipping & Returns

Key Features

Type
Rack Mounted
Total Number of Outlets
4
Receptacle Configuration
5-15R-HG
Plug Configuration
5-15P-HG
Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PS-407-HG-OEM
Zoro #
G0744088
UPC #
037332203632
Country of Origin
China

Dimensions

Cord Length
7 ft.
Length
6 3/8 in
Cord Length - Ext. Cords and Outlet Strips
7 ft.
Width
2 1/2 in
Height
1 1/2 in
Depth
1.5"
Wire Size
14 AWG
Length (Straight Wireway)
6 5/16 in

Details

Item
Outlet Strip
Type
Rack Mounted
Total Number of Outlets
4
Receptacle Configuration
5-15R-HG
Plug Configuration
5-15P-HG
Color
White
Gauge/Conductor
14/3
Standards
NFPA 99: 10.2.3.6; RoHS; UL 1363A
Power Indicator
No
Max. Amps - Ext. Cords and Outlet Strips
15.0
Color - Ext. Cords and Outlet Strips
White
Number of Power Switches
0
For Use With
Industrial, Automotive, Factory and Hardware Environments
Medical Grade
Yes
Mounting Style
Screw
Outlet Center Distance
1 1/4 in
Gauge/Conductor - Ext. Cords and Outlet Strips
14/3
NEMA Plug Configuration - Ext. Cords and Outlet Strips
5-15P-HG
NEMA Receptacle Configuration
(4) NEMA 5-15R-HG
Number of Total Outlets - Ext. Cords and Outlet Strips
4
Circuit Breaker
600VAC FD
Number of Outlet Rows
1
Voltage
120V AC
Green Environmental Attribute
RoHS 2011/65/EU Compliant
NEC Cord Designation
SJT
Number of Outlets
4
Number of Transformer Outlets
0
Special Features
Coiled Cord
Housing Material
Metal
Hz
60 Hz
Material
Metal
NEMA Plug Configuration
NEMA 5-15P-HG
Includes
PS-407-HG-OEM 4-Outlet Power Strip Owner's Manual
Max. Amps
15A
Medical Facility Use
Patient Care - Only When Permanently Mounted (UL 1363A)
Number of Conductors
3
Trade Designation
SJT
Application
Healthcare Facility
Frequency
50/60 Hz
Features
Anti-Microbial Protected, Integrated Keyhole Mounting Slots
Green Certification or Other Recognition
TÃœV, RoHS
Watts
1800W
Form Factor
Rack-mountable, Surface-mountable
Input Voltage
120 V AC
Certifications & Standards
UL 1363, TUV
Maximum Frequency
60 Hz
Maximum Input Current
15 A
Package Contents
PS-407-HG-OEM 4-Outlet Power Strip , Owner's Manual
Product Type
Power Strip
Frequency Compatibility
50 / 60 Hz
Form Factors Supported
IV poles, mobile carts, crash carts and mobile medical workstations
Output Receptacles
(4) 5-15R-HG
Circuit Breaker (amps)
15
Included Mounting Accessories
Mounting tabs and flanges
Material of Construction
Metal
Outlet Orientation
Single row of 4
Built-In Circuit Breaker
Yes
Nominal Input Voltage(s) Supported
120V AC
Input Plug Features
Hospital Grade Plug
Mounting Holes or Slots
Yes
Overload Protection
2 x 15amp breakers (1 line, 1 neutral)
Mounting Details
Includes flanges
Package Includes
PS-407-HG-OEM UL 1363A Medical-Grade Power Strip, 7-ft. (2.13 m)cord;Owner's manual
Outlets Measurement (Center to Center)
Inner outlets = 1.27 in.

Description

Outlet Strip, Application Healthcare Facility, Housing Material Metal, Total Number of Outlets 4, Max. Amps 15 A, Cord Length 7 ft, Number of Power Switches 0, Power Indicator No, Number of Outlet Rows 1, Receptacle Configuration Hospital Grade NEMA 5-15R, Plug Configuration Hospital Grade NEMA 5-15P, Wire Size 14 AWG, Mounting Style Screw, Color White, Medical Facility Use Patient Care - Only When Permanently Mounted (UL 1363A), Number of Transformer Outlets 0, Number of Conductors 3
