Shop TRIPP LITE

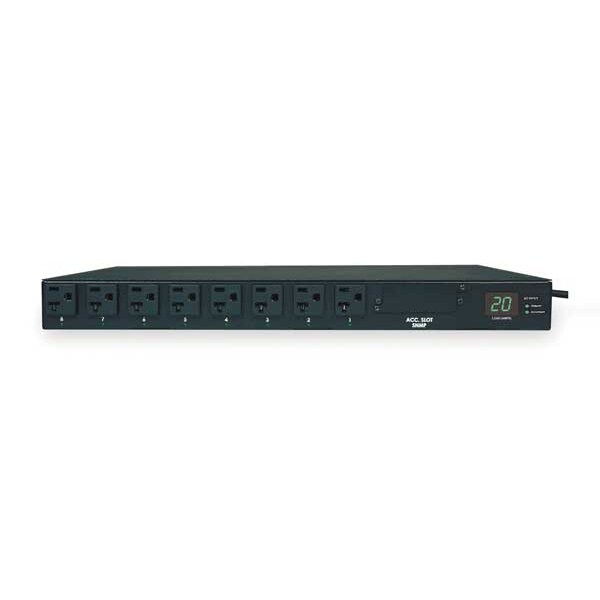

PDU, Auto-Transfer Switch, Local Metered, 5-15R, 5-20P, 12 ft., Black

  • Mfr # PDUMH20AT

  • Zoro # G2677832

product price:
$
616.99
/ea
Free Shipping & Returns

Key Features

Type
Auto-Transfer Switch, Local Metered
Receptacle Configuration
5-15R
Plug Configuration
5-20P
Cord Length
12 ft.
Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PDUMH20AT
Zoro #
G2677832
UPC #
037332126665
Country of Origin
China

Dimensions

Cord Length
12 ft.
Height
1 3/4 in
Width
17 1/2 in
Length
17 1/2 in
Depth
14.5"
Length (Straight Wireway)
14 1/2 in
Overall Length
17 1/2 in
Overall Height
1 3/4 in
Overall Width
14 1/2 in
Manufacturers Warranty Length
2 yr
Minimum Required Rack Depth (inches)
19.5
Wire Rope Length
17 1/2 in

Details

Item
PDU
Type
Auto-Transfer Switch, Local Metered
Receptacle Configuration
5-15R
Plug Configuration
5-20P
Color
Black
Standards
CE; EAC; FCC Part 15 Class A; RoHS Compliant; Trade Agreements Act
Mounting Style
Horizontal Rackmount/1U
Phase
Single
Special Features
Digital Current Monitoring Display indicates total PDU power consumption in amps. Auto Transfer Switching allows operation from secondary input source if primary input fails. Includes slot for optional SNMPWEBCARD accessory to enable remote individual outlet control over IP.
Number of Outlets
16
Circuit Breaker
No
Housing Material
Metal
Max. Amps
20A
Voltage
120V
Plug Type
NEMA 5-20P, NEMA L5-20P
Metered
Non-Metered
Power Indicator
Light
GFCI Protected
No
Receptacle Type
NEMA 5-15/20R
Includes
Mounting Brackets
Outlet Surge Protection
No
Green Environmental Attribute
Yes
Hz
50/60 Hz
NEMA Receptacle Configuration
NEMA 5-15/20R
NEMA Plug Configuration
(2) NEMA 5-20P; (2) NEMA L5-20P
Frequency
50/60 Hz
Features
Digital Current Monitoring Display
Mouting Style
Rack-mountable
Watts
2.03kW (127V), 1.92kW (120V), 1.6kW (100V)
Package Contents
PDUMH20AT PDU Metered ATS 120V 20A 16 Outlet, PDU with attached L5-20P input power cord, Detachable C19 to NEMA L5-20P 12 ft/3.6m power cord for optional secondary input, Two NEMA L5-20R to NEMA 5-20P plug adapters, User manual with warranty information
Receptacle Detail
16 x NEMA 5-15/20R
Number of Cord/Cable
2
Certifications & Standards
60950, Class A
Input Voltage
120 V AC
Output Voltage
120 V AC
Mount Type
Rack-mountable
Power Rating (VA)
2400 VA
Maximum Operating Temperature
104 Degrees F
Built-In Circuit Breaker
Yes
Rack Units
1
Maximum Input Voltage
120V AC
Maximum Current
16 A
Maximum Output Voltage
120V AC
Minimum Operating Temperature
32 Degrees F
PDU Input Voltage
120
Operating Elevation (ft.)
0-10,000
Input Phase
Single-Phase
Form Factors Supported
1U rackmount
Input Cord Details
Set of two L5-20P cordsets with two 5-20P adapters enable connection to separate PRIMARY and SECONDARY power sources
Frequency Compatibility
50 / 60 Hz
Storage Temperature Range
-22° to 122°F (-30° to 50°C)
Maximum Input Amps
16
Output Nominal Voltage
120V
PDU Form Factor
Horizontal (1U)
Front Panel LEDs
16 front panel LEDs display power on / off status for each outlet, plus 2 additional LEDs to indicate input power status for primary and secondary inputs
Network Management Cards
SNMPWEBCARD; WEBCARDLX; WEBCARDLXE
Input Connection Type
Primary: Attached L5-20P, Secondary: C20 inlet with detachable C19-to-L5-20P cordset; L5-20-to-L5-20P adapters
Output Receptacles
(16) 5-15/20R
Front Panel LCD Display
Digital display reports total PDU output current in amps
Material of Construction
Metal
High Availability PDU Features
Auto-Transfer Switching
Operating Temperature Range
32° to 104°F (0° to 40°C)
Output Capacity Details
1.92kW (120V) / 16A total capacity; 16A max per outlet
Package Includes
ATS / Local Metered PDU with attached L5-20P primary input cord;Detachable C19 to NEMA L5-20P secondary input cord;Set of two L5-20R to 5-20P plug adapters;1U rackmount installation brackets;User manual with warranty information
PDU Type
Auto-Transfer Switch; Local Metered
Grounding
Rear grounding lug

Description

PDU with Automatic Transfer Switch, Built-In Circuit Breaker Yes, Color Black, Cord Length 12 ft, Number of Outlets 16, Receptacle Type NEMA 5-15/20R, Maximum Input Voltage 120V AC, Outlet Surge Protection No, Metered Non-Metered, Rack Units 1, Mounting Location Horizontal Rack, Plug Type NEMA 5-20P, NEMA L5-20P, Features Digital Current Monitoring Display, Housing Material Metal, Includes Mounting Brackets, Manufacturers Warranty Length 2 yr, Maximum Current 16 A
