- MFR #
- PDUMNV32HV2
- Zoro #
- G5178050
- UPC #
- 037332181718
- Country of Origin
- Taiwan, Province of China

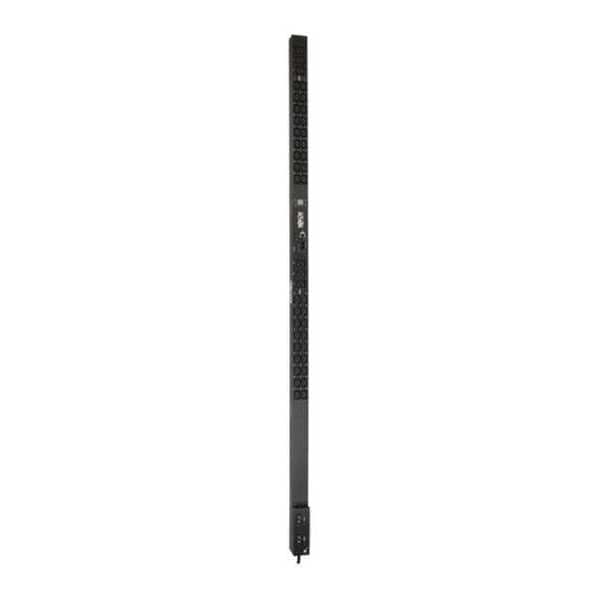

- Item
- PDU
- Type
- Monitored
- Receptacle Configuration
- (36) C13, (6) C19
- Plug Configuration
- IEC-309 32A BLUE (2P+E)
- Standards
- EC60950-1 (CE)Class A (Emissions)TAA
- Circuit Breaker
- Yes
- NEMA Plug Configuration
- IEC-309 32A BLUE (2P+E)
- NEMA Receptacle Configuration
- (36) C13; (6) C19
- Number of Outlets
- 42
- Includes
- Monitored PDUMNV32HV2 42-Outlet PDUPlug-lock Cord Retention SleevesRack Mounting BracketsOwner's Manual
- Housing Material
- Metal
- Voltage
- 230V
- Max. Amps
- 32A
- Green Environmental Attribute
- Yes
- Mounting Style
- Vertical Rackmount/0U
- Frequency
- 50/60 Hz
- Green Certification or Other Recognition
- RoHS
- Mouting Style
- Rack-mountable
- Mounting Orientation
- Vertical
- Package Contents
- Monitored PDUMNV32HV2 42-Outlet PDU, Plug-lock Cord Retention Sleeves, Rack Mounting Brackets, Owner's Manual
- Network (RJ-45)
- Yes
- Input Current
- 32 A
- Power Rating (Watt)
- 7400 W
- Receptacle Detail
- 6 x IEC 60320 C19, 36 x IEC 60320 C13
- Certifications & Standards
- EC60950-1 (CE), Class A (Emissions), TAA
- Output Voltage
- 230 V AC
- Product Type
- PDU
- Mount Type
- Rack-mountable
- Input Voltage
- 230 V AC
- PDU Type
- Monitored
- Output Nominal Voltage
- 200; 208; 220; 230; 240
- Overload Protection
- Two 20A circuit breakers protect 21 outlets each
- Frequency Compatibility
- 50 / 60 Hz
- Package Includes
- Rackmount PDU;Plug-lock cord retention sleeves;Rack mounting brackets;Owner's manual
- Front Panel LCD Display
- Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top
- Form Factors Supported
- 0U vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
- Operating Temperature Range
- 0C ~ 40C (32F ~ 104F)
- Material of Construction
- Metal
- Operating Elevation (ft.)
- 0-10,000
- Network Compatibility
- 10 Mbps; 100 Mbps (Fast Ethernet)
- Output Capacity Details
- 7.7kW (240V), 7.4kW (230V), 7kW (220V), 6.7kW (208V), 6.4kW (200V) / 32A total capacity; 16A max per breakered outlet bank; 16A max per C19 outlet; 10A max per C13 outlet
- Input Phase
- Single-Phase
- Storage Temperature Range
- 5 to 122F (-15 to 50C)
- PDU Form Factor
- Vertical (0U)
- Maximum Input Amps
- 32
- Front Panel LEDs
Front panel LEDs indicate which loading segment the digital LCD current display is reporting; Bank 1 LED indicates the meter is reporting load level for outlets 1-21; Bank 2 LED indicates the meter is reporting load level for outlets 22-42; Both LEDs lighted indicates the meter is reporting load level for all outlets combined
- Communications Cable
- RJ45-to-DB9 configuration/console Access cable
- Output Receptacles
- (36) C13; (6) C19
