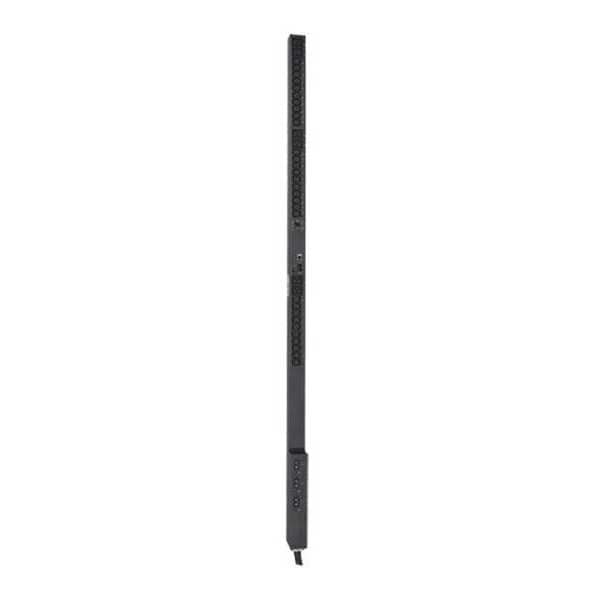

PDU, Monitored, (42) C13, (6) C19, CS8365C, 3 ft.

PDU, Monitored, (42) C13, (6) C19, CS8365C, 3 ft.

Mfr # PDU3VN3H50
Zoro # G5179100

$1,048.99

Free Shipping & Returns

Key Features

Type

Monitored

Receptacle Configuration

(42) C13, (6) C19

Plug Configuration

CS8365C

Cord Length

3 ft.

Standards

RoHS Compliant; TAA Compliant

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

PDU3VN3H50

Zoro #

G5179100

UPC #

037332195050

Country of Origin

China

Dimensions

Cord Length

3 ft.

Width

2.2"

Height

70"

Depth

3.3"

Details

Item

PDU

Type

Monitored

Receptacle Configuration

(42) C13, (6) C19

Plug Configuration

CS8365C

Standards

RoHS Compliant; TAA Compliant

Number of Outlets

Mounting Style

Vertical Rackmount/0U

NEMA Plug Configuration

HUBBELL CS8365C 50A

Voltage

200/208/240V

NEMA Receptacle Configuration

(42) C13; (6) C19

Housing Material

Metal

Max. Amps

35A

Power Indicator

Yes

Frequency

50/60 Hz

Power Rating (Watt)

12.60 kW

Receptacle Detail

6 x IEC 60320 C19, 30 x IEC 60320 C13

PDU Type

Monitored

Mount Type

Rack-mountable

Package Contents

Monitored PDU3VN3H50 36-Outlets 12.6kW PDU, Cord Retention Brackets, Rack Mounting Brackets, Owner's Manual

Product Type

PDU

Mounting Orientation

Vertical

Input Voltage

230 V AC

Output Voltage

208 V AC

Output Nominal Voltage

200; 208; 240

Operating Elevation (ft.)

0-10,000

Output Capacity Details

14.5kW (240V), 13.9kW (230V), 13.3kW (220V), 12.6kW (208V), 12.1kW (200V) total capacity; 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet

Input Cord Details

Cord length specifications are nominal and subject to manufacturing variance

Frequency Compatibility

50 / 60 Hz

Reported Load Segments

Reports input current per phase (L1, L2, L3) and output current for each breakered load bank (20A balanced max per banks B1-B3); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1); L2-L3 feeds dark-gray outlets (B2); L3-L1 feeds light-gray outlets (B3)

Network Compatibility

10 Mbps; 100 Mbps (Fast Ethernet)

Form Factors Supported

Vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks

Maximum Input Amps

Output Receptacles

(42) C13; (6) C19

Input Phase

3-Phase

Current Measurement Accuracy (Amps)

+/-1%

Front Panel LEDs

Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output load bank (B1-B3) offers information power availability: GREEN (<80% load), YELLOW (>80% load), RED (Power OFF), RED FLASHING (Power OFF/breaker trip)

Front Panel LCD Display

Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP)

Package Includes

PDU3VN3H50 14.5kW 200/208/240V 3-Phase Monitored PDU, 3 ft. cord;(42) C13/C14 plug-lock inserts;(6) C19/C20 plug-lock inserts;Spare mounting buttons;(2) Conventional mounting brackets;Configuration cable for network interface;Button/bracket-mounting hardware;Owner's manual

Overload Protection

3 20A circuit breakers, 1 per outlet bank

Communications Cable

RJ45-to-DB9 configuration/console Access cable

Operating Temperature Range

5 to 140F (-15 to 50C)

PDU Form Factor

Vertical (0U)

Storage Temperature Range

5 to 140F (-15 to 60C)

Material of Construction

Metal

Power Measurement Accuracy (Watts)

+/-1%

Description

PDU,3-Ph,Monitored,14.5kW,42 C13,6C19,0U
