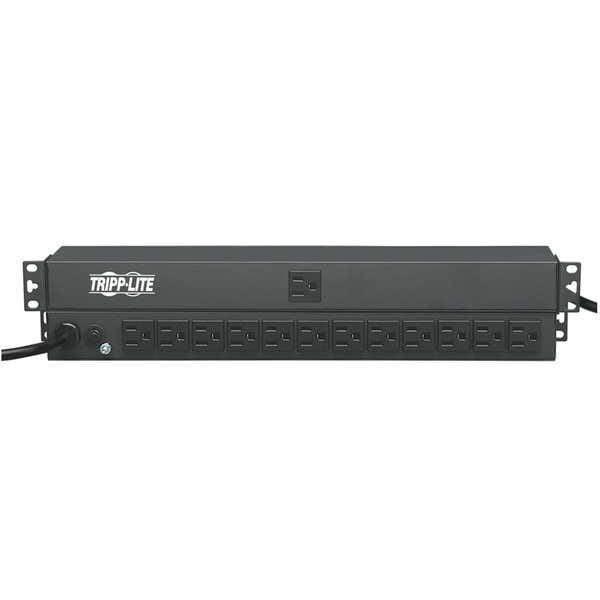

PDU, Rack Mounted, 5-15R, 5-15P, 15 ft., Black

PDU, Rack Mounted, 5-15R, 5-15P, 15 ft., Black

Mfr # PDU1215
Zoro # G3607091

$125.99

Free Shipping & Returns

Key Features

Type

Rack Mounted

Receptacle Configuration

5-15R

Plug Configuration

5-15P

Cord Length

15 ft.

Color

Black

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

PDU1215

Zoro #

G3607091

UPC #

037332116727

Country of Origin

China

Dimensions

Cord Length

15 ft.

Length

4 1/2 in

Height

1 3/4 in

Width

17 1/2 in

Depth

4.5"

Length (Straight Wireway)

4 1/2 in

Overall Height

1 3/4 in

Overall Width

17 1/2 in

Overall Length

4 1/2 in

Manufacturers Warranty Length

5 yr

Minimum Required Rack Depth (inches)

7.5

Details

Item

PDU

Type

Rack Mounted

Receptacle Configuration

5-15R

Plug Configuration

5-15P

Color

Black

Standards

CE; EAC; FCC Part 15 Class A; RoHS Compliant; TAA Compliant

Outlet Center Distance

30.2mm

Max. Amps

15A

GFCI Protected

Plug Type

NEMA 5-15P

Phase

Single

Outlet Surge Protection

Includes

Mounting Hardware

Receptacle Type

NEMA 5-15R

Special Features

Detachable Mounting Flanges

Circuit Breaker

Voltage

120VAC

Power Indicator

Metered

Non-Metered

Mounting Style

Vertical Rackmount/0U

Housing Material

Metal

Number of Outlets

50/60 Hz

NEMA Plug Configuration

NEMA 5-15P

NEMA Receptacle Configuration

NEMA 5-15R

Frequency

50/60 Hz

Features

Detachable Mounting Flanges

Watts

1.9kW (127V), 1.8kW (120V), 1.5kW (100V)

Mount Type

Rack-mountable

Mounting Orientation

Horizontal

Package Contents

PDU1215 PDU Basic 120V 15A 13 Outlet, PDU1215 Rackmount Power Strip, Warranty information, Instruction manual

Power Rating (Watt)

1800 W

Certifications & Standards

cUL, UR

Network (RJ-45)

Yes

Output Voltage

120 V AC

PDU Type

Basic

Compatibility

TYPICAL APPLICATIONS: Multi-outlet power distribution unit is the ideal means of powering multiple loads in 19 inch rackmount, wallmount and under-counter applications, such as internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment.

Input Current

15 A

Receptacle Detail

13 x NEMA 5-15R

Input Voltage

120 V AC

Maximum Operating Temperature

104 Degrees F

Maximum Current

15 A

Maximum Output Voltage

120V AC

Built-In Circuit Breaker

Yes

Minimum Operating Temperature

32 Degrees F

Maximum Input Voltage

120V AC

Frequency Compatibility

50 / 60 Hz

PDU Form Factor

Horizontal (1U)

Material of Construction

Metal

Outlets Measurement (Center to Center)

30.2mm

Overload Protection

15A Breaker

Maximum Input Amps

Input Phase

Single-Phase

PDU Input Voltage

120

Output Capacity (kW)

1.8

Package Includes

PDU1215 1.8kW Single-Phase 120V Basic PDU;Mounting hardware;Owner's manual

Grounding

Grounding lug

Operating Temperature Range

32Â° to 104Â°F (0Â° to 40Â°C)

Output Receptacles

(13) 5-15R

Form Factors Supported

1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported

Output Capacity Details

1.8kW (120V) / 15A total capacity; 12A max per 5-15R outlet

Storage Temperature Range

-22Â° to 122Â°F (-30Â° to 50Â°C)

Output Nominal Voltage

120V

Operating Elevation (ft.)

0-10,000

Description

Power Distribution Unit, Built-In Circuit Breaker Yes, Color Black, Cord Length 15 ft, Number of Outlets 13, Receptacle Type NEMA 5-15R, Maximum Input Voltage 120V AC, Outlet Surge Protection No, Metered Non-Metered, Rack Units Not Applicable, Mounting Location Vertical Rack, Plug Type NEMA 5-15P, Features Detachable Mounting Flanges, Housing Material Metal, Includes Mounting Hardware, Manufacturers Warranty Length 5 yr, Maximum Current 15 A, Maximum Operating Temperature 104 Degrees F
