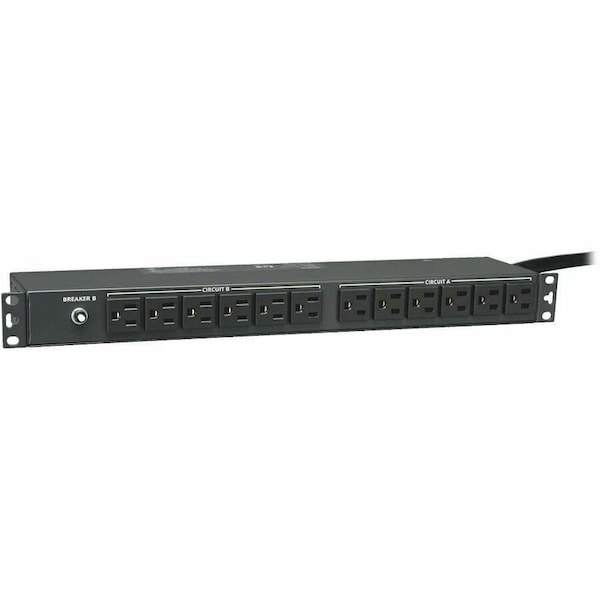

Tripp Lite PDU, Surge, Rack Mounted, 5-15R, L5-30P, 15 ft., Black PDU2430 - main

PDU, Surge, Rack Mounted, 5-15R, L5-30P, 15 ft., Black

  • Mfr # PDU2430

  • Zoro # G3670292

product price: $306.99
/ea
Item requires special delivery charges. A $155.00 per item surcharge will be applied.

Key Features

Type
Surge, Rack Mounted
Receptacle Configuration
5-15R
Plug Configuration
L5-30P
Cord Length
15 ft.
Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PDU2430
Zoro #
G3670292
UPC #
037332117281
Country of Origin
China

Dimensions

Cord Length
15 ft.
Height
1 3/4 in
Length
4 1/2 in
Width
17 1/2 in
Length (Straight Wireway)
4 1/2 in
Overall Height
1 3/4 in
Overall Width
17 1/2 in
Overall Length
4 3/8 in
Manufacturers Warranty Length
5 yr
Minimum Required Rack Depth (inches)
7.5

Details

Item
PDU
Type
Surge, Rack Mounted
Receptacle Configuration
5-15R
Plug Configuration
L5-30P
Color
Black
Standards
CE; EAC; FCC Part 15 Class A; RoHS Compliant; TAA Compliant
Circuit Breaker
Yes
Special Features
(2) 15A Circuit Breakers, Detachable Mounting Flanges
Outlet Center Distance
30.2mm
Includes
Mounting Hardware
Housing Material
Metal
Max. Amps
30A
GFCI Protected
No
Power Indicator
No
Phase
Single
Plug Type
NEMA L5-30P
Mounting Style
Horizontal Rackmount/1U
Outlet Surge Protection
No
Number of Outlets
24
Metered
Non-Metered
Receptacle Type
NEMA 5-15R
Voltage
120V
NEMA Receptacle Configuration
NEMA 5-15R
Hz
50/60 Hz
NEMA Plug Configuration
NEMA L5-30P
Frequency
50/60 Hz
Features
Detachable Mounting Flanges
Mouting Style
Rack-mountable
Watts
3.05kW (127V), 2.88kW (120V), 2.4kW (100V)
Number of Cord/Cable
1
Output Voltage
120 V AC
Input Voltage
120 V AC
PDU Type
Basic
Mount Type
Rack-mountable
Package Contents
PDU2430 2.9kW Single-Phase 120V Basic PDU, Mounting Hardware, Owner's Manual
Certifications & Standards
cUL, UR
Receptacle Detail
24 x NEMA 5-15R
Rack Units
1
Maximum Operating Temperature
104 Degrees F
Minimum Operating Temperature
32 Degrees F
Maximum Input Voltage
120V AC
Maximum Current
24 A
Built-In Circuit Breaker
Yes
Maximum Output Voltage
120V AC
Overload Protection
Two 15A breakers protect 12 outlets each
PDU Input Voltage
120
Input Phase
Single-Phase
Form Factors Supported
1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported
Output Nominal Voltage
120V
Operating Elevation (ft.)
0-10,000
Grounding
Grounding lug
Material of Construction
Metal
Outlets Measurement (Center to Center)
Distance between Front outlets = 30.2mm; Distance between Rear outlets = 30.2mm
Storage Temperature Range
-22° to 122°F (-30° to 50°C)
Operating Temperature Range
32° to 104°F (0° to 40°C)
PDU Form Factor
Horizontal (1U)
Output Receptacles
(24) 5-15R
Output Capacity Details
2.88kW (120V) / 24A total capacity; 12A max per breakered load bank; 12A max per outlet
Maximum Input Amps
24
Package Includes
PDU2430 2.9kW Single-Phase 120V Basic PDU;Mounting hardware;Owner's manual
Frequency Compatibility
50 / 60 Hz

Description

Power Distribution Unit, Built-In Circuit Breaker Yes, Color Black, Cord Length 15 ft, Number of Outlets 24, Receptacle Type NEMA 5-15R, Maximum Input Voltage 120V AC, Outlet Surge Protection No, Metered Non-Metered, Rack Units 1, Mounting Location Vertical Rack, Plug Type NEMA L5-30P, Features Detachable Mounting Flanges, Housing Material Metal, Includes Mounting Hardware, Manufacturers Warranty Length 5 yr, Maximum Current 24 A, Maximum Operating Temperature 104 Degrees F
