- Item
- PDU
- Type
- Switched
- Receptacle Configuration
- (12) C13, (12) C19
- Plug Configuration
- IEC-309 32A RED (3P+N+E)
- Standards
- CE/IEC 60950; CE Class A
- Housing Material
- Metal
- Includes
- Mounting Brackets
- Number of Outlets
- 24
- Hz
- 50/60 Hz
- Power Indicator
- Yes
- Mounting Style
- Vertical Rackmount/0U
- Phase
- 3
- Voltage
- 400/230V
- Max. Amps
- 32A
- NEMA Receptacle Configuration
- (12) C13; (12) C19
- Circuit Breaker
- Yes
- Metered
- Yes
- NEMA Plug Configuration
- IEC-309 32A RED (3P+N+E)
- Frequency
- 50/60 Hz
- Features
- Large Digital Display Reports Amperage, Kilowatts, Voltage, Unbalance Percentage, Temperature and Humidity, Small Digital Display Provides Detail On The Measurement The Large Display Is Reporting
- Watts
- 23kW (415/240V), 22.2kW (400/230V), 21.1kW (380/220V), 20kW (360/200V)
- Power Rating (Watt)
- 22.10 kW
- Input Voltage Range
- 380 V AC - 400 V AC
- Certifications & Standards
- UL60950-1, CSA22.2, NOM, FCC Class A
- Receptacle Detail
- 12 x IEC 60320 C13, 12 x IEC 60320 C19
- Input Current
- 32 A
- Mount Type
- Rack-mountable
- Package Contents
- Switched PDU3XVSR6G32A 24-Outlets PDU, Plug-Lock Cable Retention Inserts, Spare Installation Buttons (2 9mm / 4 6mm), Mounting Brackets, Configuration Cable, Owner's Manual
- Output Voltage
- 230 V AC
- Mounting Orientation
- Vertical
- PDU Type
- Switched
- Product Type
- PDU
- Output Capacity Details
- 23kW (415/240V), 22.2kW (400/230V), 21.1kW (380/220V), 20kW (360/200V) total capacity; 32A max per output phase (L1, L2, L3); 20A max per breakered outlet bank; 16A max per C19 outlet; 10A max per C13 outlet
- Output Nominal Voltage
- 220 (380V input); 230 (400V input)
- Reported Load Segments
Reports input current per phase (L1, L2, L3), plus output current for each output load bank (B1-B6) and individual output receptacle (1-24); Outlets are color-coded and labeled for phase and load bank identification; L1-N feeds black outlets (B1, B4); L2-N feeds dark-gray outlets (B2, B5); L3-N feeds light-gray outlets (B3, B6)
- Frequency Compatibility
- 50 / 60 Hz
- Material of Construction
- Metal
- PDU Form Factor
- Vertical (0U)
- Power Measurement Accuracy (Watts)
- +/-1%

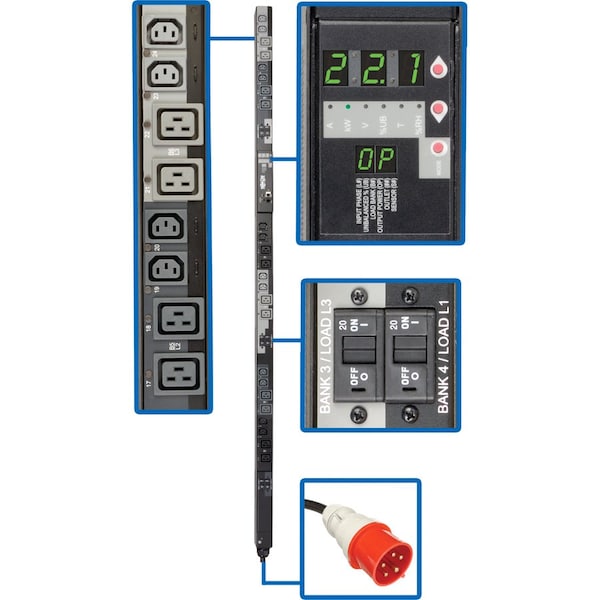

- Front Panel LCD Display
Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Outlet (##), Load unbalance % (UB), Output power (OP)
- Maximum Input Amps
- 32
- Communications Cable
- RJ45-to-DB9 configuration/console Access cable
- Storage Temperature Range
- -30°C to +60°C (-22°F to +140°F)
- Overload Protection
- 6 20A circuit breakers, 1 per outlet bank
- Operating Temperature Range
- 32 to 122F (0C to 50C)
- Package Includes
- Switched, vertical rackmount PDU with pre-installed mounting buttons;12 C13/C14 and 12 C19/C20 Plug-lock cable retention inserts;Spare installation buttons (2 9mm / 4 6mm), Mounting brackets;Configuration cable;Owner's manual
- Operating Elevation (ft.)
- 0-10,000
- Input Phase
- 3-Phase
- Output Receptacles
- (12) C13; (12) C19
- Form Factors Supported
- Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
- Current Measurement Accuracy (Amps)
- +/-1%
- Front Panel LEDs
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip)
- Network Compatibility
- 10 Mbps; 100 Mbps (Fast Ethernet)
