  11. PDU, Switched, (20) C13, (4) C19, L6-30P, 10 ft.
Tripp Lite PDU, Switched, (20) C13, (4) C19, L6-30P, 10 ft. PDUMV30HVNET - main

PDU, Switched, (20) C13, (4) C19, L6-30P, 10 ft.

  • Mfr # PDUMV30HVNET

  • Zoro # G5177910

product price: $848.99
/ea
Free Shipping & Returns

Key Features

Type
Switched
Receptacle Configuration
(20) C13, (4) C19
Plug Configuration
L6-30P
Cord Length
10 ft.
Standards
RoHS Compliant; TAA Compliant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PDUMV30HVNET
Zoro #
G5177910
UPC #
037332139740
Country of Origin
Taiwan, Province of China

Dimensions

Cord Length
10 ft.
Depth
2.7"
Width
2.2"
Height
70"

Details

Item
PDU
Type
Switched
Receptacle Configuration
(20) C13, (4) C19
Plug Configuration
L6-30P
Standards
RoHS Compliant; TAA Compliant
NEMA Plug Configuration
NEMA L6-30P
Mounting Style
Vertical Rackmount/0U
Max. Amps
30A
NEMA Receptacle Configuration
(20) C13; (4) C19
Voltage
208/240V
Number of Outlets
24
Frequency
50/60 Hz
Product Type
PDU
Receptacle Detail
4 x IEC 60320 C19, 20 x IEC 60320 C13
Output Voltage
240 V AC, 208 V AC
Mount Type
Rack-mountable
Package Contents
PDUMV30HVNET PDU Switched 208V - 240V 30A 24 Outlet, Rackmount PDU, Rack mounting brackets, Owner's manual
PDU Type
Switched
Input Voltage
230 V AC
Input Voltage Range
208 V AC - 240 V AC
Mounting Orientation
Vertical
Package Includes
Rackmount PDU;Rack mounting brackets;Owner's manual;PDUMVROTATEBRKT mounting accessory
Customized Load Management Receptacles
Each outlet is individually controllable via remote interface
Output Nominal Voltage
200; 208; 240
Output Receptacles
(20) C13; (4) C19
Network Compatibility
10 Mbps; 100 Mbps (Fast Ethernet)
Communications Cable
RJ45-to-DB9 configuration/console Access cable
Operating Elevation (ft.)
0-10,000
Input Phase
Single-Phase
Output Capacity Details
5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet

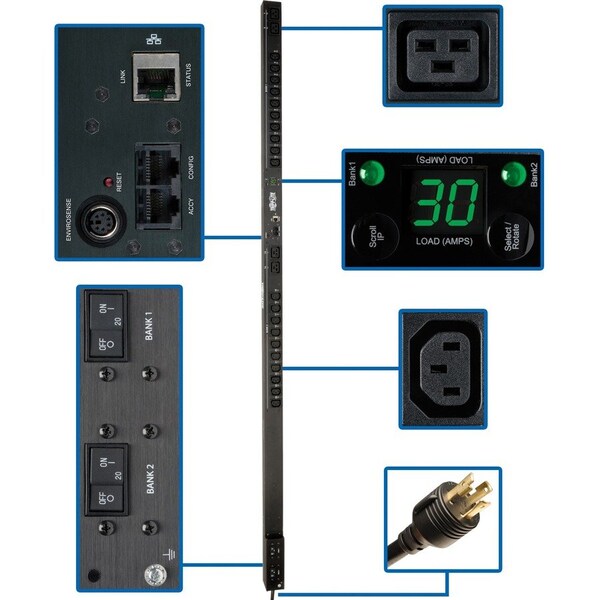

Front Panel LEDs
24 power availability LEDs confirm power off/on status for each built-in outlet
Overload Protection
Two 20A breakers protect 12 outlets each
Form Factors Supported
0U vertical rackmount. Includes mounting brackets. Supports toolless mounting in button-mount compatible racks
PDU Form Factor
Vertical (0U)
Front Panel LCD Display
Digital display reports output amps in 3 separately metered loading segments (BANK 1: Outlets #1-12; BANK 2: Outlets #13-24; BANK 3: All outlets combined)
Frequency Compatibility
50 / 60 Hz
Maximum Input Amps
30

Description

PDU,Switched,5/5.8kW,20 C13,4 C19,0U
