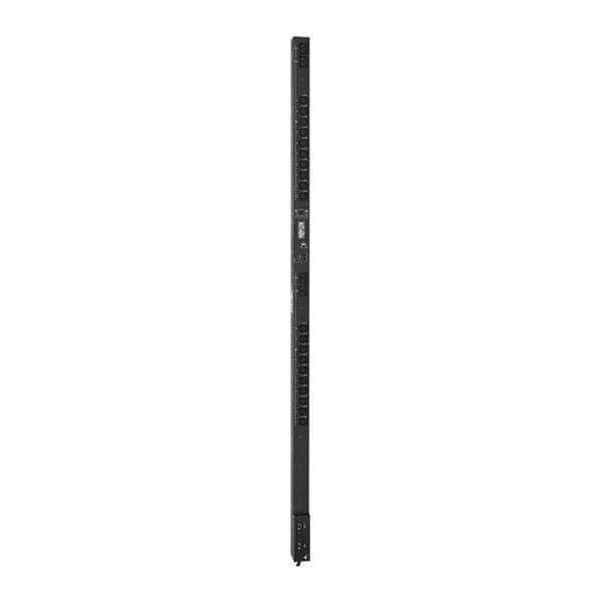

Tripp Lite PDU, Switched, (20) C13, (4) C19, L6-30P, 10 ft. PDUMVR30HVNET - main

PDU, Switched, (20) C13, (4) C19, L6-30P, 10 ft.

  • Mfr # PDUMVR30HVNET

  • Zoro # G5177859

product price: $1,379.99
/ea
Free Shipping & Returns

Key Features

Type
Switched
Receptacle Configuration
(20) C13, (4) C19
Plug Configuration
L6-30P
Cord Length
10 ft.
Standards
RoHS Compliant; TAA Compliant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PDUMVR30HVNET
Zoro #
G5177859
UPC #
037332166920
Country of Origin
Taiwan, Province of China

Dimensions

Cord Length
10 ft.

Details

Item
PDU
Type
Switched
Receptacle Configuration
(20) C13, (4) C19
Plug Configuration
L6-30P
Standards
RoHS Compliant; TAA Compliant
NEMA Plug Configuration
NEMA L6-30P
Max. Amps
30A
Voltage
208/240V
Number of Outlets
24
Mounting Style
Vertical Rackmount/0U
NEMA Receptacle Configuration
C13; C19
Frequency
50/60 Hz
PDU Type
Switched
Mounting Orientation
Vertical
Product Type
PDU
Mount Type
Rack-mountable
Package Contents
Switched PDUMVR30HVNET 24-Outlets PDU, User's Guide CD-ROM, Screws, Cord Retention Shelf, 4 x Mounting Buttons, RJ-45 Cable, Mounting Bracket, Cable Ties
Network (RJ-45)
Yes
Receptacle Detail
4 x IEC 60320 C19, 20 x IEC 60320 C13
Input Voltage
230 V AC
Overload Protection
Two 20A breakers protect 12 outlets each
Communications Cable
RJ45-to-DB9 configuration/console Access cable
Output Capacity Details
5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Operating Elevation (ft.)
0-10,000
PDU Form Factor
Vertical (0U)
Maximum Input Amps
30
Front Panel LEDs
BANK 1 and BANK 2 LEDs verify which load bank the digital current display is reporting (Bank 1, Bank 2 or Banks 1&2 Combined); BANK 1 or BANK 2 LED will flash when the digital display is reporting output current for one of the outlets in that load bank; 24 additional LEDs, one near each output receptacle, will light continuously to verify power on/off status and flash to indicate that the digital display is reporting output current for just that individual receptacle
Frequency Compatibility
50 / 60 Hz
Output Receptacles
(20) C13; (4) C19
Front Panel LCD Display
Digital display reports load level in amps for LOAD BANK 1 (Outlets 1-12), LOAD BANK 2 (Outlets 13-24), LOAD BANKS 1&2 COMBINED (Outlets 1-24) and each individual output receptacle; Digital display can also be used to scroll the configured IP address
Package Includes
Rackmount PDU;Rackmount brackets;PDUMVROTATEBRKT
Customized Load Management Receptacles
Each outlet is individually controllable via remote interface
Input Phase
Single-Phase
Network Compatibility
10 Mbps; 100 Mbps (Fast Ethernet)
Form Factors Supported
0U vertical rackmount; includes rackmount brackets. Supports toolless mounting in button-mount compatible racks
Output Nominal Voltage
200; 208; 240
Storage Temperature Range
5 to 122F (-15 to 50C)

Description

PDU,Switched,5/5.8kW,20 C13,4 C19,0U
