- Item
- PDU
- Type
- Switched
- Receptacle Configuration
- (21) C13, (3) C19
- Plug Configuration
- L21-20P
- Standards
- RoHS Compliant; TAA Compliant
- Max. Amps
- 16A
- Mounting Style
- Vertical Rackmount/0U
- Voltage
- 208V
- NEMA Plug Configuration
- NEMA L21-20P
- Housing Material
- Metal
- NEMA Receptacle Configuration
- (21) C13; (3) C19
- Number of Outlets
- 24
- Frequency
- 50/60 Hz
- Power Rating (Watt)
- 5700 W
- Input Voltage
- 230 V AC
- Product Type
- PDU
- Package Contents

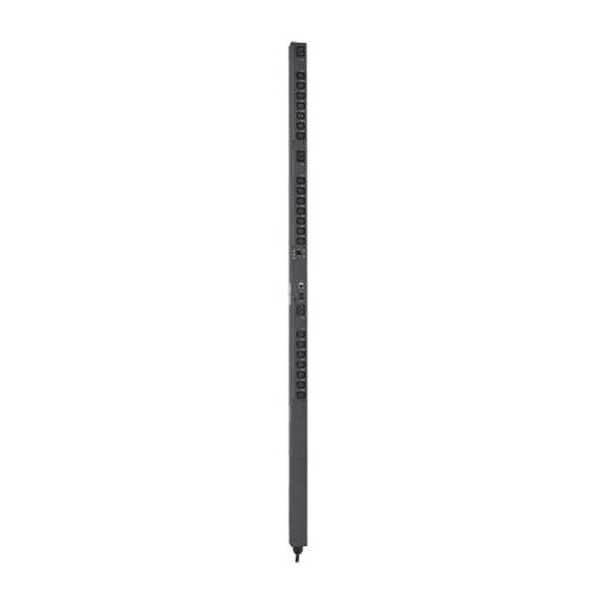

- Switched PDU3VSR3L2120 24-Outlets 5.7kW PDU, Cord Retention Brackets, Rack Mounting Brackets, Owner's Manual
- Receptacle Detail
- 3 x IEC 60320 C19, 21 x IEC 60320 C13
- Output Voltage
- 208 V AC
- Mount Type
- Rack-mountable
- PDU Type
- Switched
- Mounting Orientation
- Vertical
- Package Includes
- Switched rackmount PDU with pre-installed mounting buttons;Cord retention brackets;Rack mounting brackets;Owner's manual
- Communications Cable
- RJ45-to-DB9 configuration/console Access cable
- Reported Load Segments
- Supports local monitoring of current for each output phase (9.2A max balanced per L1-L2, L2-L3 and L3-L1) and for each output receptacle; BANK "L1" is powered by L1-L2 (outlets 1-8); BANK "L2" is powered by L2-L3 (outlets 9-16); BANK "L3" is powered by L3-L1 (outlets 17-24)
- Input Phase
- 3-Phase
- Maximum Input Amps
- 16
- PDU Form Factor
- Vertical (0U)
- Network Compatibility
- 10 Mbps; 100 Mbps (Fast Ethernet)
- Form Factors Supported
- Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
- Output Capacity Details
- 5.7kW (208V) total capacity / 9.2A max per output phase (L1-L2, L2-L3, L3-L1)
- Customized Load Management Receptacles
- Each outlet is individually controllable via remote interface
- Input Cord Details
- Cord length specifications are nominal and subject to manufacturing variance
- Current Measurement Accuracy (Amps)
- +/-1%
- Output Receptacles
- (21) C13; (3) C19
- Frequency Compatibility
- 50 / 60 Hz
- Output Nominal Voltage
- 208
- Operating Elevation (ft.)
- 0-10,000
- Front Panel LEDs
Set of 3 LEDs (L1, L2, L3) indicate the output load segment the digital current display is reporting; LEDs for L1, L2, L3 will also flash to indicate that the display is reporting current level for one of the outlets in that load bank; One additional LED per output receptacle indicates power ON/OFF status for that outlet
- Storage Temperature Range
- 5 to 122F (-15 to 50C)
- Power Measurement Accuracy (Watts)
- +/-1%
- Front Panel LCD Display
- Digital display reports output load level in amps separately for each output phase and each individual output receptacle; Can also be used to scroll the configured IP address
- Material of Construction
- Metal
