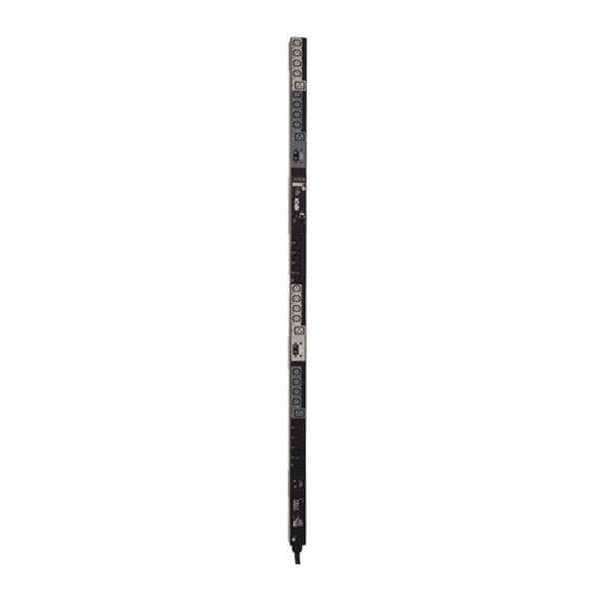

PDU, Switched, (24) C13, (6) C19, CS8365C, 6 ft.

PDU, Switched, (24) C13, (6) C19, CS8365C, 6 ft.

Mfr # PDU3VSR6H50
Zoro # G5178778

$1,492.99

Item requires special delivery charges. A $75.00 per item surcharge will be applied.

Key Features

Type

Switched

Receptacle Configuration

(24) C13, (6) C19

Plug Configuration

CS8365C

Cord Length

6 ft.

Standards

UL/CAN 60950-1; Class A; NOM; TAA Compliant

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

PDU3VSR6H50

Zoro #

G5178778

UPC #

037332180247

Country of Origin

China

Dimensions

Cord Length

6 ft.

Height

70"

Width

2.2"

Depth

2.9"

Details

Item

PDU

Type

Switched

Receptacle Configuration

(24) C13, (6) C19

Plug Configuration

CS8365C

Standards

UL/CAN 60950-1; Class A; NOM; TAA Compliant

Circuit Breaker

Yes

Phase

Metered

Yes

50/60 Hz

Number of Outlets

NEMA Plug Configuration

HUBBELL CS8365C 50A

Housing Material

Metal

Power Indicator

Yes

Includes

Mounting Brackets

NEMA Receptacle Configuration

(24) C13; (6) C19

Max. Amps

35A

Voltage

200/208/240V

Mounting Style

Vertical Rackmount/0U

Frequency

50/60 Hz

Features

Large Digital Display Reports Amperage, Kilowatts, Voltage, Unbalance Percentage, Temperature and Humidity, Small Digital Display Provides Detail On The Measurement The Large Display Is Reporting

Watts

14.5kW (240V), 13.9kW (230V), 13.3kW (220V), 12.6kW (208V), 12.1kW (200V)

Input Voltage

230 V AC

PDU Type

Switched

Input Current

35 A

Receptacle Detail

6 x IEC 60320 C19, 24 x IEC 60320 C13

Input Voltage Range

200 V AC - 240 V AC

Output Voltage

208 V AC, 240 V AC, 200 V AC

Package Contents

Switched PDU3VSR6H50 30-Outlet PDU, Plug Lock Cord Retention Sleeves, Spare Installation Buttons (2 9mm / 4 6mm), Mounting Brackets, Configuration Cable, Owner's Manual

Mounting Orientation

Vertical

Power Rating (Watt)

14.50 kW

Product Type

PDU

Mount Type

Rack-mountable

Operating Elevation (ft.)

0-10,000

Output Receptacles

(24) C13; (6) C19

Customized Load Management Receptacles

Each outlet is individually controllable via remote interface

Power Measurement Accuracy (Watts)

+/-1%

Input Phase

3-Phase

Operating Temperature Range

32 to 122F (0 to 50C)

Overload Protection

3 20A circuit breakers, 1 per outlet bank

Output Nominal Voltage

200; 208; 240

Reported Load Segments

Reports input current per phase (L1, L2, L3), plus output current for each output load bank (20A balanced max per banks B1-B3) and individual output receptacle (1-30); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1); L2-L3 feeds dark-gray outlets (B2); L3-L1 feeds light-gray outlets (B3)

Output Capacity Details

14.5kW (240V), 13.9kW (230V), 13.3kW (220V), 12.6kW (208V), 12.1kW (200V) total capacity; 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet

Front Panel LEDs

Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip)

Front Panel LCD Display

Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Outlet (##), Load unbalance % (UB), Output power (OP)

Maximum Input Amps

Material of Construction

Metal

Current Measurement Accuracy (Amps)

+/-1%

Form Factors Supported

Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks

PDU Form Factor

Vertical (0U)

Network Compatibility

10 Mbps; 100 Mbps (Fast Ethernet)

Communications Cable

RJ45-to-DB9 configuration/console Access cable

Package Includes

Switched vertical rackmount PDU with pre-installed mounting buttons;Plug lock cord retention sleeves;Spare installation buttons (2 9mm / 4 6mm), Mounting brackets;Configuration cable;Owner's manual

Frequency Compatibility

50 / 60 Hz

Storage Temperature Range

-30°C to +60°C (-22°F to +140°F)

Description

PDU,3-Ph,Switched,14.5kW,24 C13,6 C19,0U
