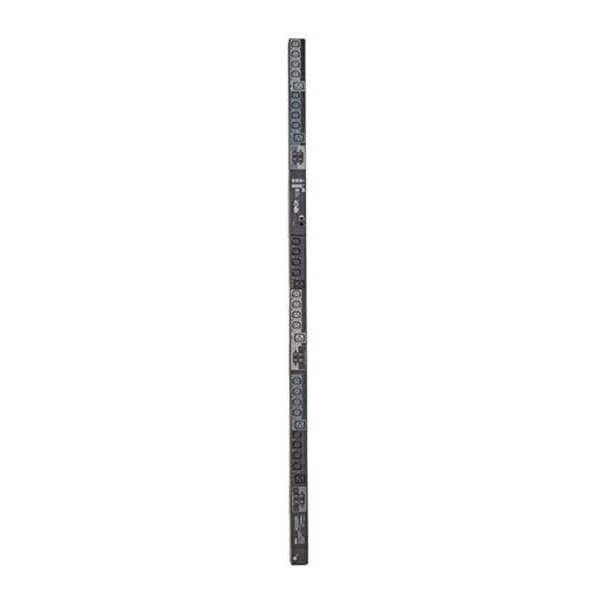

Receptacle Configuration
(24) C13, (6) C19
Plug Configuration
Hardwire
Standards
CE; UL60950-1; CSA22.2; NOM; FCC Class A; TAA Compliant
Mounting Style
Vertical Rackmount/0U
Includes
Mounting Brackets
NEMA Plug Configuration
Hardwire
NEMA Receptacle Configuration
(24) C13; (6) C19
Features
Large Digital Display Reports Amperage, Kilowatts, Voltage, Unbalance Percentage, Temperature and Humidity, Small Digital Display Provides Detail On The Measurement The Large Display Is Reporting
Watts
28.8kW (415/240V), 27.7kW (400/230V), 26.3kW (380/220V)
Mounting Orientation
Vertical
Input Voltage Range
380 V AC - 415 V AC
Certifications & Standards
UL60950-1, CSA22.2, NOM, FCC Class A
Receptacle Detail
24 x IEC 60320 C13, 6 x IEC 60320 C19
Power Rating (Watt)
28.80 kW
Package Contents

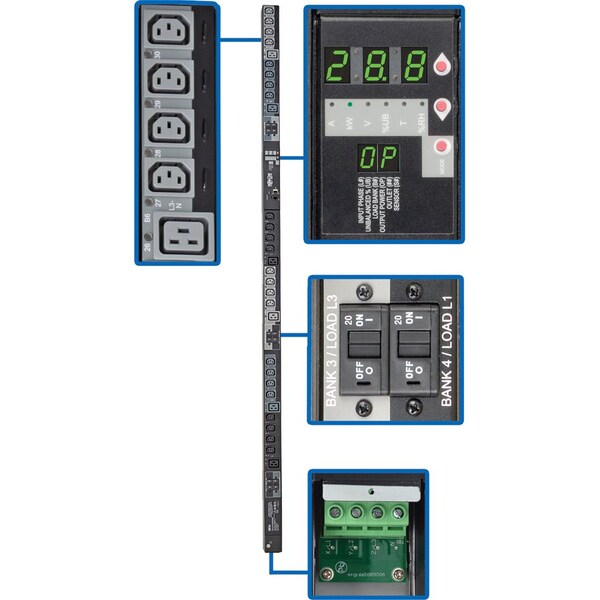

Switched PDU3XVSRHWB 30-Outlets PDU, Plug-Lock Cable Retention Inserts, Spare Installation Buttons (2 9mm / 4 6mm), Mounting Brackets, Configuration Cable, Owner's Manual
Mount Type
Rack-mountable
Operating Temperature Range
32 to 122F (0-50C)
Output Receptacles
(24) C13; (6) C19
Front Panel LEDs
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip)
Package Includes
Switched, vertical rackmount PDU with pre-installed mounting buttons;24 C13/C14 and 6 C19/C20 Plug-lock cable retention inserts;Spare installation buttons (2 9mm / 4 6mm), Mounting brackets;Configuration cable;Owner's manual
Overload Protection
6 20A circuit breakers, 1 per outlet bank
Output Nominal Voltage
220 (380V input); 230 (400V input); 240 (415V input)
Front Panel LCD Display
Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Outlet (##), Load unbalance % (UB), Output power (OP)
Network Compatibility
10 Mbps; 100 Mbps (Fast Ethernet)
Communications Cable
RJ45-to-DB9 configuration/console Access cable
Storage Temperature Range
-30°C to +60°C (-22°F to +140°F)
Frequency Compatibility
50 / 60 Hz
Operating Elevation (ft.)
0-10,000
Output Capacity Details
28.8kW (415/240V), 27.7kW (400/230V), 26.3kW (380/220V) total capacity; 40A max per output phase (L1, L2, L3); 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max (10A CE) per C13 outlet
PDU Form Factor
Vertical (0U)
Power Measurement Accuracy (Watts)
+/-1%
Form Factors Supported
Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
Reported Load Segments
Reports input current per phase (L1, L2, L3), plus output current for each output load bank (B1-B6) and individual output receptacle (1-30); Outlets are color-coded and labeled for phase and load bank identification; L1-N feeds black outlets (B1, B4); L2-N feeds dark-gray outlets (B2, B5); L3-N feeds light-gray outlets (B3, B6)
Current Measurement Accuracy (Amps)
+/-1%
Material of Construction
Metal
