- Item
- PDU
- Type
- Switched
- Receptacle Configuration
- (24) C13, (6) C19
- Plug Configuration
- IEC-309 16/20A RED (3P+N+E)
- Standards
- TAA Tested to UL60950-1CE (EN 60950-1) CE / FCC Class A (Emissions)
- NEMA Receptacle Configuration
- (24) C13; (6) C19
- Hz
- 50/60 Hz
- Housing Material
- Metal
- Power Indicator
- Yes
- Max. Amps
- 16A
- Phase
- 3
- Metered
- Yes
- NEMA Plug Configuration
- IEC-309 16/20A RED (3P+N+E)
- Voltage
- 400/230V
- Green Environmental Attribute
- Yes
- Number of Outlets
- 30
- Mounting Style
- Vertical Rackmount/0U
- Includes
- PDU3XVSR6G20 30-Outlets PDU24 C13/C14 and 6 C19/C20 Plug-Lock Cable Retention InsertsSpare Installation Buttons (2 9mm / 4 6mm)Mounting BracketsConfiguration CableOwner's Manual
- Frequency
- 50/60 Hz
- Features
- Large Digital Display Reports Amperage, Kilowatts, Voltage, Unbalance Percentage, Temperature and Humidity, Small Digital Display Provides Detail On The Measurement The Large Display Is Reporting
- Green Certification or Other Recognition
- RoHS
- Watts
- 11.5kW (415/240V), 11.1kW (400/230V), 10.5kW (380/220V)
- Package Contents
- PDU3XVSR6G20 30-Outlets PDU, 24 C13/C14 and 6 C19/C20 Plug-Lock Cable Retention Inserts, Spare Installation Buttons (2 9mm / 4 6mm), Mounting Brackets, Configuration Cable, Owner's Manual
- Input Voltage Range
- 380 V AC - 415 V AC
- Input Current
- 16 A
- Receptacle Detail
- 24 x IEC 60320 C13, 6 x IEC 60320 C19
- Mounting Orientation
- Vertical
- Product Type
- PDU
- Network (RJ-45)
- Yes
- Certifications & Standards
- TAA, Tested to UL60950-1, CE (EN 60950-1), CE / FCC Class A (Emissions)
- Output Voltage
- 400 V AC, 380 V AC, 415 V AC
- Power Rating (Watt)
- 11.50 kW
- Communications Cable
- RJ45-to-DB9 configuration/console Access cable
- Output Receptacles
- (24) C13; (6) C19
- Network Compatibility
- 10 Mbps; 100 Mbps (Fast Ethernet)
- Frequency Compatibility
- 50 / 60 Hz
- Operating Temperature Range
- 0C ~ 50C (32F ~ 122F)
- Package Includes
- Switched, vertical rackmount PDU with pre-installed mounting buttons;24 C13/C14 and 6 C19/C20 Plug-lock cable retention inserts;Spare installation buttons (2 9mm / 4 6mm), Mounting brackets;Configuration cable;Owner's manual
- Output Nominal Voltage
- 208-240V

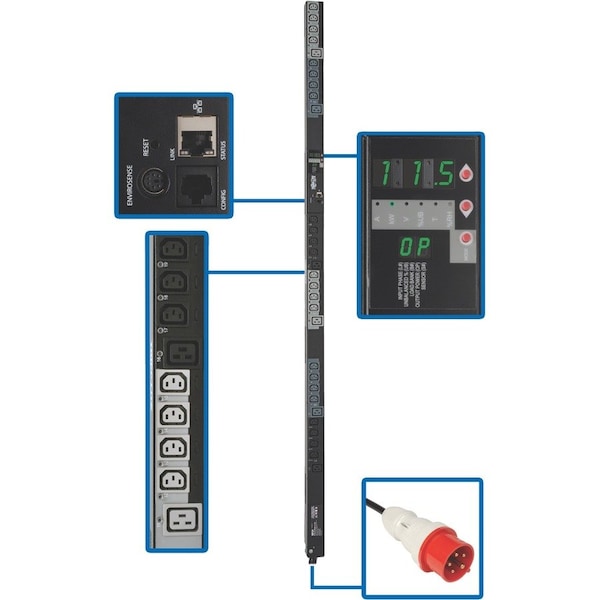

- Front Panel LCD Display
Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Outlet (##), Load unbalance % (UB), Output power (OP)
- Operating Elevation (ft.)
- 0-10,000
- Input Phase
- 3-Phase
- Power Measurement Accuracy (Watts)
- +/-1%
- Maximum Input Amps
- 16
- Material of Construction
- Metal
- Form Factors Supported
- Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
- Front Panel LEDs
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip)
- PDU Type
- Switched
- Customized Load Management Receptacles
- Each outlet is individually controllable via remote interface
- Current Measurement Accuracy (Amps)
- +/-1%
- Storage Temperature Range
- -30°C to +60°C (-22°F to +140°F)
- PDU Form Factor
- Vertical (0U)
- PDU Input Voltage
- 360; 380; 400; 415
- Reported Load Segments
Reports input current per phase (L1, L2, L3), plus output current for each output load bank (16A balanced max per B1-B3) and individual output receptacle (1-30); Outlets are color-coded and labeled for phase and load bank identification; L1-N feeds black outlets (B1); L2-N feeds dark-gray outlets (B2); L3-N feeds light-gray outlets (B3)
- High Availability PDU Features
- Auto Load Shedding
- Output Capacity Details
- 11.5kW (415/240V), 11.1kW (400/230V), 10.5kW (380/220V), 10kW (360/208V) total capacity; 16A max per output phase (L1-L2, L2-L3, L3-L1); 16A max per C19 outlet; 12A (10A CE) max per C13 outlet
