- Item
- PDU
- Type
- Switched
- Receptacle Configuration
- 5-15/20R
- Plug Configuration
- L5-30P
- Standards
- RoHS Compliant; TAA Compliant
- Voltage
- 120V
- NEMA Plug Configuration
- NEMA L5-30P
- Max. Amps
- 30A
- Number of Outlets
- 24
- NEMA Receptacle Configuration
- NEMA 5-15/20R
- Mounting Style
- Vertical Rackmount/0U
- Frequency
- 50/60 Hz
- Product Type
- PDU
- Input Voltage
- 120 V AC
- Package Contents
- Rackmount PDU, Rackmount Brackets
- Input Voltage Range
- 100 V AC - 127 V AC
- Mount Type
- Rack-mountable
- Mounting Orientation
- Vertical
- Output Voltage
- 120 V AC
- Receptacle Detail
- 24 x NEMA 5-15/20R
- Output Receptacles
- (24) 5-15/20R
- Customized Load Management Receptacles
- Each outlet is individually controllable via remote interface
- PDU Form Factor
- Vertical (0U)
- Input Phase
- Single-Phase

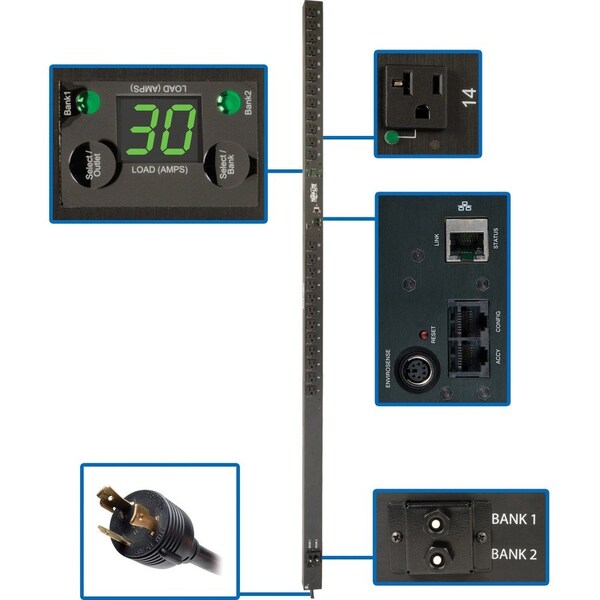

- Front Panel LCD Display
- Digital display reports load level in amps for LOAD BANK 1 (Outlets 1-12), LOAD BANK 2 (Outlets 13-24), LOAD BANKS 1&2 COMBINED (Outlets 1-24) and each individual output receptacle; Digital display can also be used to scroll the configured IP address
- Maximum Input Amps
- 30
- Output Nominal Voltage
- 100-127V nominal, single phase
- Frequency Compatibility
- 50 / 60 Hz
- Operating Elevation (ft.)
- 0-10,000
- Front Panel LEDs
BANK 1 and BANK 2 LEDs verify which load bank the digital current display is reporting (Bank 1, Bank 2 or Banks 1&2 Combined); BANK 1 or BANK 2 LED will flash when the digital display is reporting output current for one of the outlets in that load bank; 24 additional LEDs, one near each output receptacle, will light continuously to verify power on/off status and flash to indicate that the digital display is reporting output current for just that individual receptacle
- PDU Type
- Switched
- Communications Cable
- RJ45-to-DB9 configuration/console Access cable
- Network Compatibility
- 10 Mbps; 100 Mbps (Fast Ethernet)
- Output Capacity Details
- 3.05kW (127V), 2.88kW (120V), 2.4kW (100V) / 30A total capacity (Agency de-rated 24A); 20A max per breakered load bank; 16A max per outlet
- Form Factors Supported
- 0U vertical rackmount; includes rackmount brackets. Supports toolless mounting in button-mount compatible racks
- Overload Protection
- Two 20A breakers protect 12 outlets each
- Storage Temperature Range
- 5 to 122F (-15 to 50C)
