  11. Plug Adapter, Surge, 5-15R, 5-15P, 0 ft., Black

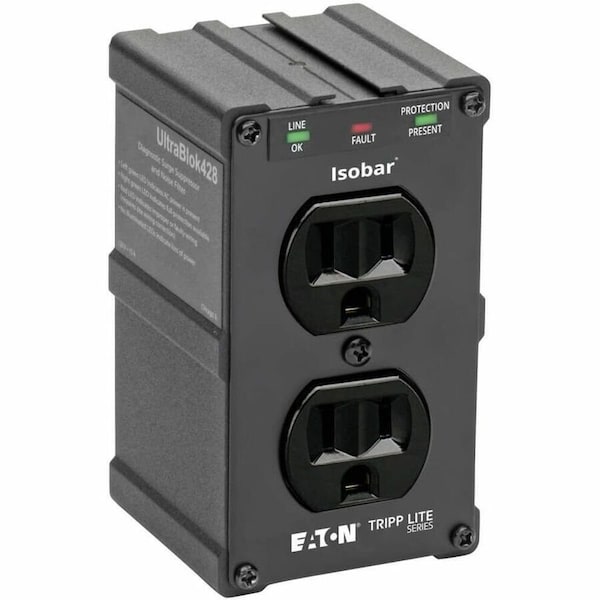

Tripp Lite Plug Adapter, Surge, 5-15R, 5-15P, 0 ft., Black ULTRABLOK - main

Plug Adapter, Surge, 5-15R, 5-15P, 0 ft., Black

  • Mfr # ULTRABLOK

  • Zoro # G2358133

product price: $46.59
/ea

Key Features

Type
Surge
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Cord Length
0 ft.
Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ULTRABLOK
Zoro #
G2358133
UPC #
037332010476
Country of Origin
China

Dimensions

Cord Length
0 ft.
Width
2.5"
Height
4"
Depth
2.5"

Details

Item
Plug Adapter
Type
Surge
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
Black
Gauge/Conductor
None
Standards
NOM (Mexico); RoHS; UL 1363; UL 1449
Voltage
120VAC
Circuit Breaker
Yes
Rated Joules
1,410 J
Number of Outlets
2
NEMA Connector
5-15R
Max. Surge Current
48 kA
Amps
15A
Connector Type
5-15R
Power Indicator
Yes
Noise Attenuation
40 to 80dB
Plug Configuration - Ext. Cords and Power Strips
No Swivel, Right Angle
Telephone/Fax Surge Protection
No
Outlet Surge Protection
Yes
Coax Surge Protection
No
NEMA Receptacle Configuration
NEMA 5-15R
Mounting Style
Wall
Max. Amps
15A
NEMA Plug Configuration
NEMA 5-15P
Phase
Single
Hz
50/60 Hz
Housing Material
Metal
Includes
Mounting Hardware
Frequency
50/60 Hz
Features
Automatic Shut-Off, Diagnostic LED(s), Safe Thermal Fusing
Watts
1800W
Wattage
1,800 W
Maximum Surge Energy
1,410 J
Housing Color
Black
Slot End Voltage Rating
120V AC
Blade End Voltage Rating
120V AC
Maximum Surge Current
48 kA
Blade End Current Rating
15 A
Surge Protection
Yes
Adapter Type
Multi-Outlet Tap Surge Protector
Power Indicating Light
Yes
Slot End Current Rating
15 A
Output Voltage
125 V AC
Compatibility
Personal Computers with Peripherals, Network And CAD/CAM/CAE Workstations, Internetworking Accessories, Telecommunications Systems, Point of Sale Equipment, Audio/Video and Home Theater Systems
Surge Energy Rating
1410 J
Package Contents
Isobar ULTRABLOK Premium 2-Outlets Surge Suppressor, Instruction Manual, Warranty information
Input Voltage
120 V AC
Power Handling
1800 VA
Maximum Line Current
15 A
Form Factors Supported
Direct plug-in format with retaining bracket supports wall mounting directly to a standard AC wall socket
Output Receptacles
(2) 5-15R
Circuit Breaker (amps)
15
Material of Construction
Metal
Diagnostic LED(s)
Yes
Frequency Compatibility
50 / 60 Hz
Network (Ethernet) Protection
No
EMI / RFI Filtering
40-80 dB
AC Suppression Components Used
Metal oxide varistors, toroidal balanced chokes and VHF capacitors
AC Suppression Response Time
NM = 0 ns. CM = <1 ns
Nominal Input Voltage(s) Supported
120V AC
Included Mounting Accessories
Mounting hardware
Mounting Holes or Slots
No
AC Suppression Joule Rating
1410
AC Suppression Surge Current Rating
48,000 amps
Package Includes
ULTRABLOK Isobar 2-Outlet Surge Protector, Black Metal Housing;Mounting hardware;Owner's manual
Immunity
Conforms to IEE 587 / ANSI C62.41
Diagnostic LED Details
PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)
Protection Modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression

Description

Isolated Filter Surge Protector Plug Adapter, Blade End Current Rating 15 A, Blade End Voltage Rating 120V AC, Housing Color Black, Maximum Surge Current 48 kA, Maximum Surge Energy 1,410 J, NEMA Plug Configuration 5-15P, NEMA Receptacle Configuration 5-15R, Number of Outlets 2, Slot End Current Rating 15 A, Slot End Voltage Rating 120V AC, Wattage 1,800 W, Adapter Type Multi-Outlet Tap Surge Protector, Phase Single, Power Indicating Light Yes, Surge Protection Yes, Circuit Breaker Yes
