  11. Power Cord, HD, C19, 5-20P, 20A, 12AWG, 10ft

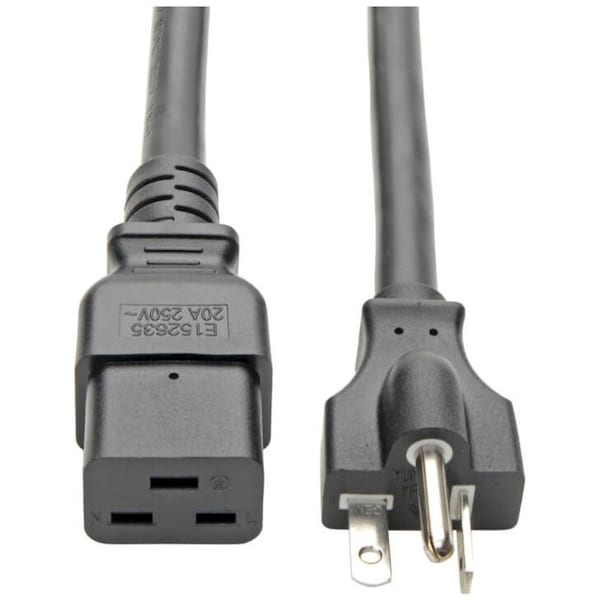

Tripp Lite Power Cord, HD, C19, 5-20P, 20A, 12AWG, 10ft P049-010 - main

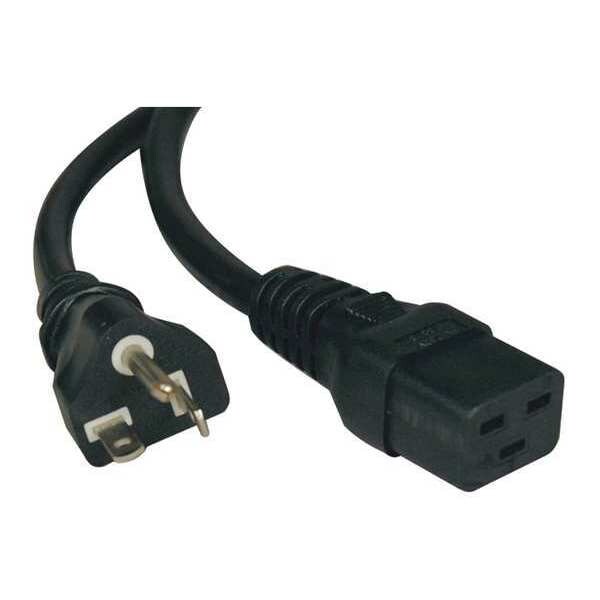

Power Cord, HD, C19, 5-20P, 20A, 12AWG, 10ft

  • Mfr # P049-010

  • Zoro # G5179916

product price: $40.39
/ea

Key Features

Max. Amps
20
Number of Conductors
3
Cord Length
10 ft.
Wire Size
12 AWG
Voltage
125V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P049-010
Zoro #
G5179916
UPC #
037332140944
Country of Origin
China

Dimensions

Cord Length
10 ft.
Wire Size
12 AWG
Cable Outer Diameter (OD)
11mm
Cable Length (ft.)
10

Details

Item
Power Cord,HD,C19,5-20P,20A,12AWG,10ft
Max. Amps
20
Number of Conductors
3
Voltage
125V AC
Standards
UL-approved
NEC Cord Designation
SJT
Color
Black
Voltage Rating
125 V AC
End 2 Connection Type
IEC-320-C19
End 1 Connection Type
NEMA 5-20P
Frequency
60 Hz
Product Color
Black
Product Name
P049-010 Standard Power Cord
Additional Information
Fully molded end
Package Contents
P049-010 Standard Power Cord, C19 to 5-20P Power Cable, 10 ft.
Cable Jacket Rating
VW-1
Power Cord Jacket Type
SJT
Plug Color
Black
Cable Jacket Material
PVC
Cable Jacket Color
Black
Maximum Input Amps
20
Package Includes
P049-010 C19 to 5-20P Heavy-Duty Extension Cord, 10-ft. (3.05 m), Black
Voltage Compatibility (VAC)
125
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Wire Gauge (AWG)
12
Side B - Connector 1
IEC-320-C19
Side A - Connector 1
NEMA 5-20P
Relative Humidity
10% to 65% RH, Non-Condensing
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Device Compatibility
Server; Router; Network Switch; UPS; PDU
Product Certifications
cUL Listed; UL Listed

Description

Power Supply Cord
