- Item
- Power Inverter
- Peak Output Power
- 2,500 W
- Continuous Output Power
- 1,250 W
- Inverter Output Form
- Modified Sine Wave
- Inverter Input Voltage
- 12V DC; 230V AC
- Inverter Output Voltage
- 230V AC
- Outlet Type
- Standard 3-Prong Outlet
- DC Connection
- Bolt Down Terminals
- Number of Outlets
- 2
- Case Material
- Polycarbonate
- Standards
- RoHS
- Nominal Output Power
- 1,250 W
- Features
- Expandable Runtime; Overload Protection
- Max. Input Current
- Full continuous load - 125 A at 12V DC; 9.3 A at 230V AC with full inverter and charger load
- Charger Output Amps
- 30 A
- Inveter Output Voltage
- 230V
- Output Frequency
- 50 Hz
- Product Line
- PowerVerter
- Product Color
- Black
- Maximum Frequency
- 50 Hz
- Product Series
- APS X
- Input Voltage
- 12 V DC
- Product Name

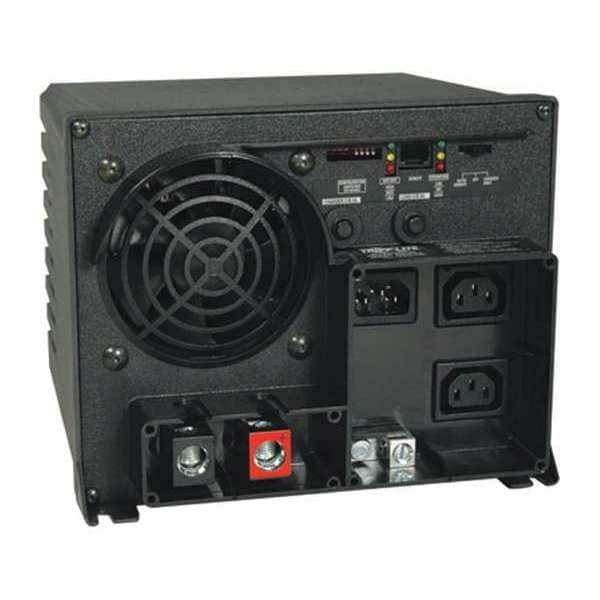

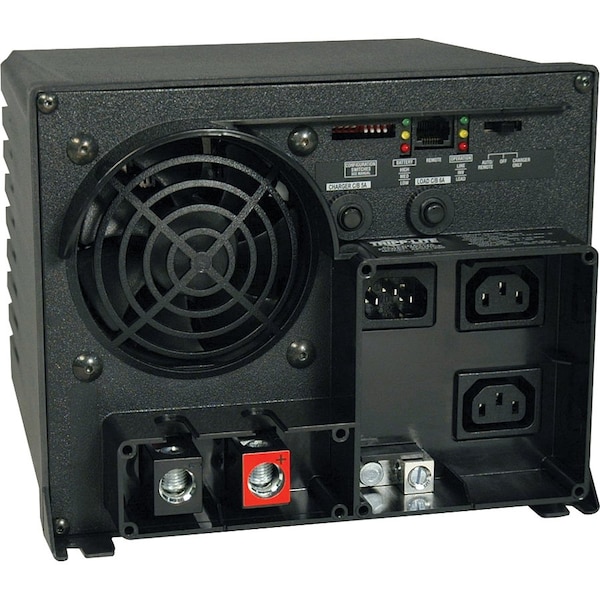

- PowerVerter APS X Series 1250W Charger Inverter
- Output Voltage
- 230 V AC
- Package Contents
- PowerVerter APS X Series 1250W Charger Inverter, Instruction Manual with Warranty Information
- Material of Construction
- Polycarbonate
- Form Factors Supported
- Mounting slots enable permanent placement of APSX1250 on any horizontal surface (see manual for additional mounting information)
- Output Receptacles
- (2) Universal outlets
- Front Panel LEDs
- Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
- Battery Charge
- Selectable 7.5 / 30A with 1/2 cycle transfer time
- DC System Voltage (VDC)
- 12
- Transfer Time (Line Power to Battery Mode)
- 10 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications)
- Recommended Electrical Service
DC INPUT: Requires 12VDC input source capable of delivering 125A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 225A minimum battery system fusing is recommended. AC INPUT: 230VAC
- Output Voltage Regulation
- LINE POWER (AC): Maintains 230V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 230 VAC (+/-5%).
- Nominal Output Voltage(s) Supported
- 230V
- High Voltage Transfer to Battery Power
- In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 272V
- Output Frequency Regulation
- 50 Hz (+/- 0.3 Hz)
- Relative Humidity
- 0%-95% Non-Condensing
- Maximum Input Amps / Watts
DC INPUT: Full continuous load - 125A at 12VDC. AC INPUT: 9.3A at 230VAC with full inverter and charger load (3.3A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output loading using the charger limiting set points - see manual for setting instructions)
- Voltage Compatibility (VDC)
- 12
- Voltage Compatibility (VAC)
- 230
- Overload Protection
- Includes 5A input breaker dedicated to the charging system and 6A output breaker for AC output loads
- Low Voltage Transfer to Battery Power
- In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 144V (user adjustable to 163, 182, 201V - see manual)
- Package Includes
- APSX1250 1250W APS X Series 12V DC 230V AC Inverter/Charger;Owner's manual
- AC Suppression Joule Rating
- 1020
- Battery Pack Accessory (Optional)
- 98-121 sealed lead acid battery (optional)
- Nominal Input Voltage(s) Supported
- 230V AC
- Expandable Runtime
- Yes
- Switches
3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, auto/remote setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads.
- Frequency Compatibility
- 50 Hz
