  11. Power Strip, 5-15R, 5-15P, 25 ft., Black/Yellow

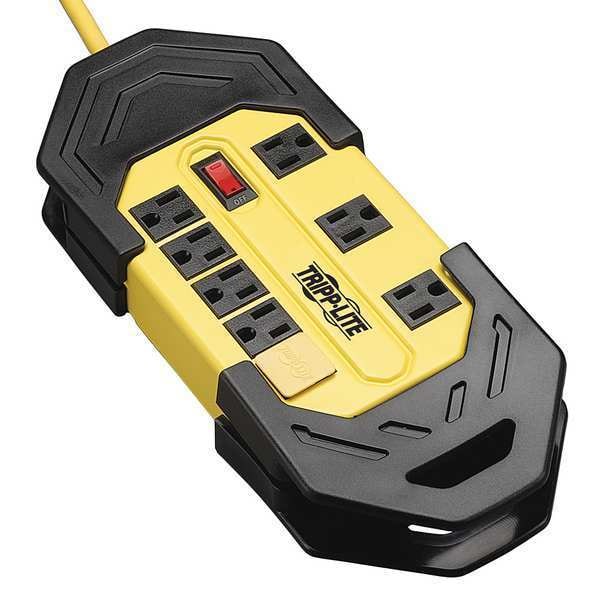

Tripp Lite Power Strip, 5-15R, 5-15P, 25 ft., Black/Yellow TLM825GF - main

Power Strip, 5-15R, 5-15P, 25 ft., Black/Yellow

  • Mfr # TLM825GF

  • Zoro # G1556073

product price: $121.99
/ea
Free Shipping & Returns

Key Features

Receptacle Configuration
5-15R
Plug Configuration
5-15P
Cord Length
25 ft.
Color
Black/Yellow
Gauge/Conductor
14/3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TLM825GF
Zoro #
G1556073
UPC #
037332140128
Country of Origin
China

Dimensions

Cord Length
25 ft.
Range of Lengths
25 ft.
Height
10.3"
Depth
1.6"
Width
5.1"
Wire Size
14 AWG

Details

Item
Power Strip
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
Black/Yellow
Gauge/Conductor
14/3
Standards
cUL Listed; UL Listed; RoHS
Voltage Rating
120VAC
NEC Cord Designation
SJT
NEMA Plug Configuration
NEMA 5-15P
Outlet Configuration
8 Outlets
Hz
60 Hz
Amps
15A
Enclosure Rating
Indoor
NEMA Receptacle Configuration
(8) NEMA 5-15R
Outlet Center Distance
25.40 mm Standard; 50.80 mm Transformer
Voltage
120VAC
Max. Amps
15A
Circuit Breaker
Yes
Housing Material
Metal
Power Indicator
Yes
Number of Outlets
8
GFCI Protected
Yes
Number of Transformer Outlets
6
Mounting Style
Keyhole
Number of Wires
3
Plug Style
Right Angle
Number of Conductors
3
Trade Designation
SJT
Frequency
60 Hz
Features
Integrated Cord Clip, Integrated Keyhole Mounting Slots
Watts
1800W
Material of Construction
Metal
Maximum Frequency
60 Hz
Input Voltage
120 V AC
Package Contents
8-Outlets Power Strip, TLM825GF Safety Power Strip, 4 safety covers, Owner's manual
Maximum Input Current
15 A
Circuit Breaker (amps)
15
Mounting Holes or Slots
Yes
Outlet Orientation
1 bank of 5, 1 bank of 3 (transformer outlets)
Built-In Circuit Breaker
Yes
Output Receptacles
(8) 5-15R
Nominal Input Voltage(s) Supported
120V AC
Outlet Safety Covers Detail
Includes 4 outlet safety covers
Integrated Cord Clip
Yes
Outlets Measurement (Center to Center)
Distance between standard outlets = 1 in.; Distance between transformer outlets = 2 in.
Frequency Compatibility
60 Hz
Package Includes
TLM825GF Safety Power Strip;4 safety covers;Owner's manual
Overload Protection
GFCI plug

Description

Plug-In GFCI, Cord Length 25 ft, Color Black/Yellow, Max. Amps 15 A, Plug Configuration NEMA 5-15P, Receptacle Configuration NEMA 5-15R, Enclosure Rating Indoor, Number of Outlets 8, Trade Designation SJT, Voltage 120V AC, Hz 60 Hz, Wire Size 14 AWG, Number of Conductors 3, Housing Material Metal
