  11. Power Strip, Surge, Rack Mounted, 5-15R, 5-15P, 15 ft., Black

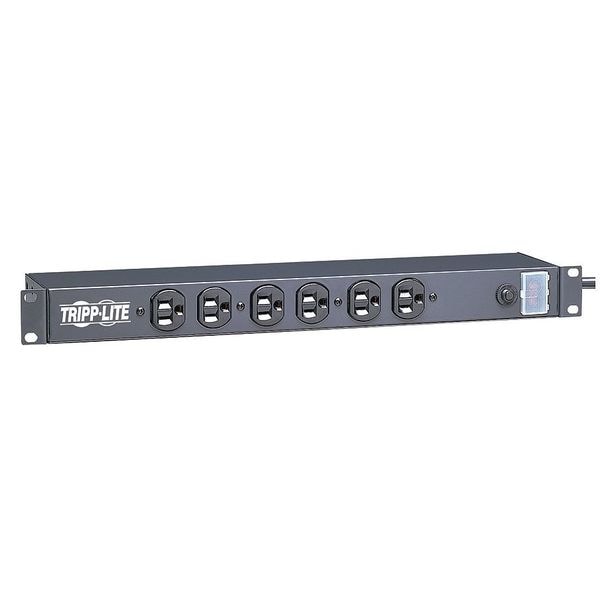

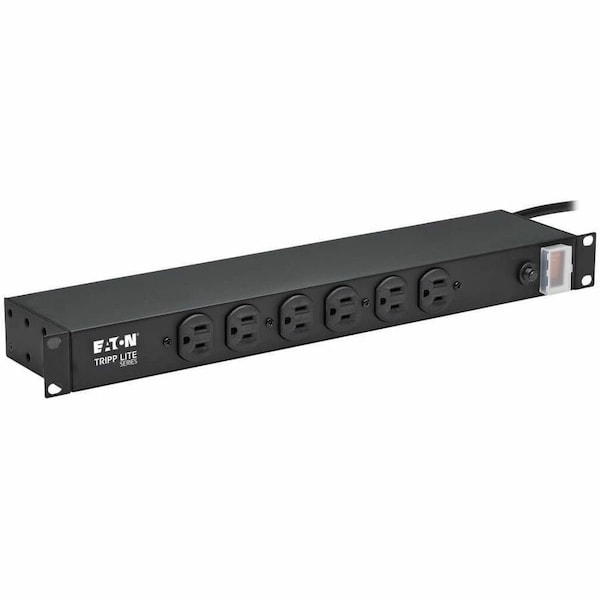

Tripp Lite Power Strip, Surge, Rack Mounted, 5-15R, 5-15P, 15 ft., Black RS-1215 - main

Power Strip, Surge, Rack Mounted, 5-15R, 5-15P, 15 ft., Black

  • Mfr # RS-1215

  • Zoro # G5096147

product price: $92.59
/ea
Free Shipping & Returns

Key Features

Type
Surge, Rack Mounted
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Cord Length
15 ft.
Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RS-1215
Zoro #
G5096147
UPC #
037332011534
Country of Origin
China

Dimensions

Cord Length
15 ft.
Height
1 3/4 in
Length
4 1/2 in
Width
17 1/2 in
Depth
4.5"
Length (Straight Wireway)
4 1/2 in
Overall Length
17 1/2 in
Overall Width
4 in
Overall Height
1 3/4 in

Details

Item
Power Strip
Type
Surge, Rack Mounted
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
Black
Standards
cUL Listed; RoHS Compliant; UL 1363; UL Listed
Number of Outlets
12
Outlet Surge Protection
No
Mounting Style
Rack
Circuit Breaker
Yes
Max. Amps
15A
Housing Material
Metal
Includes
Instruction Manual with Warranty Information
Receptacle Type
NEMA 5-15R
Phase
Single
Power Indicator
Yes
Voltage
120VAC
Plug Type
NEMA 5-15P
GFCI Protected
No
Hz
50/60 Hz
Number of Transformer Outlets
5
NEMA Receptacle Configuration
(12) NEMA 5-15R
Outlet Center Distance
83.35 mm Front; 114.3 mm Rear
NEMA Plug Configuration
NEMA 5-15P
Metered
Non-Metered
Frequency
50/60 Hz
Features
Detachable Mounting Flanges, Under-Counter Mounting Option
Watts
1800W
Input Voltage
120 V AC
Maximum Input Current
15 A
Maximum Frequency
60 Hz
Maximum Output Voltage
120 V AC
Package Contents
RS-1215 6-Outlet Power Strip, Mounting hardware, Instruction manual
Certifications & Standards
UL1363 (UR status)
Form Factor
Rack-mountable, Wall Mountable
Distance Between Rear Outlets
4 1/2 in
Distance Between Front Outlets
3 1/4 in
Maximum Current
15 A
Maximum Input Voltage
120V AC
Built-In Circuit Breaker
Yes
Rack Units
1
Locking Switch Cover
Transparent locking switch cover prevents accidental shutoff
Included Mounting Accessories
Rackmount flanges
Package Includes
RS-1215;Mounting hardware;Instruction manual
Outlets Measurement (Center to Center)
Distance between Front outlets = 3.28 in.; Distance between Rear outlets = 4.5 in.
Material of Construction
Metal
Form Factors Supported
1U rackmount, wall-mount and undercounter installation supported
Frequency Compatibility
50 / 60 Hz
Output Receptacles
(12) 5-15R
Outlet Orientation
6 front facing / 6 rear facing
Mounting Holes or Slots
No
Grounding
Back panel nut and bolt grounding lug
Nominal Input Voltage(s) Supported
120V AC
Circuit Breaker (amps)
15

Description

Power Distribution Unit, Built-In Circuit Breaker Yes, Color Black, Cord Length 15 ft, Number of Outlets 12, Receptacle Type NEMA 5-15R, Maximum Input Voltage 120V AC, Outlet Surge Protection No, Metered Non-Metered, Rack Units 1, Mounting Location Horizontal Rack, Wall, Plug Type NEMA 5-15P, Distance Between Front Outlets 3 1/4 in, Distance Between Rear Outlets 4 1/2 in, Features Detachable Mounting Flanges, Under-Counter Mounting Option, Housing Material Metal, Maximum Current 15 A
