- MFR #
- TR-6FM
- Zoro #
- G5175339
- UPC #
- 037332010612
- Country of Origin
- China
- Item

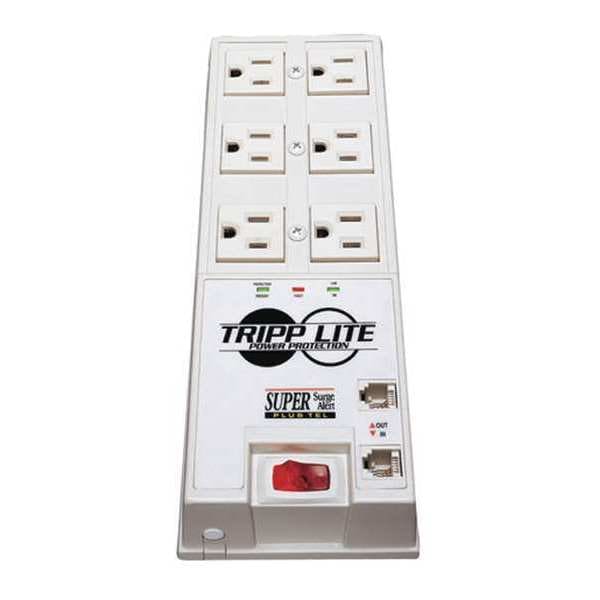

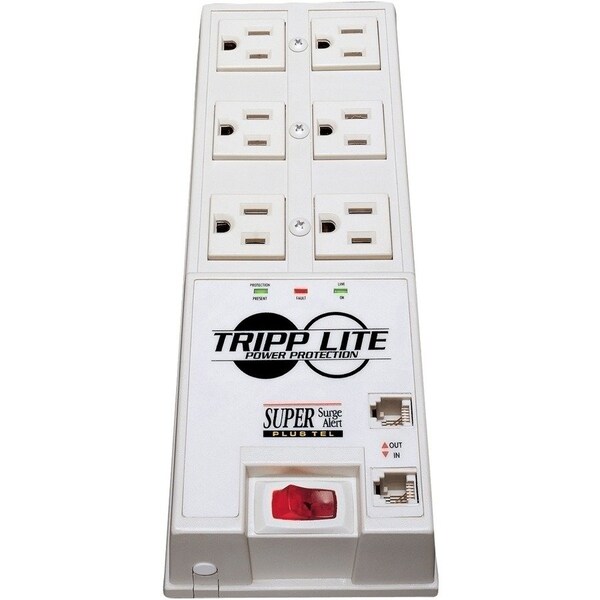

- Power Strip
- Type
- Surge, Tel/DSL Protection
- Receptacle Configuration
- 5-15R
- Plug Configuration
- 5-15P
- Color
- Light Gray
- Gauge/Conductor
- 14/3
- Standards
- UL 1449; UL 497A; FCC Part 68; RoHS
- Circuit Breaker
- Yes
- Max. Amps
- 15A
- NEMA Receptacle Configuration
- NEMA 5-15R
- Voltage
- 120VAC
- Mounting Style
- Keyhole
- Hz
- 50/60 Hz
- Housing Material
- Plastic
- Power Indicator
- Yes
- Max. Surge Current
- 78.5 kA
- Number of Transformer Outlets
- 2
- Outlet Center Distance
- 44.20 mm Horizontal; 39 mm Vertical
- Communication Port
- FCC Part 68
- Outlet Surge Protection
- Yes
- Number of Outlets
- 6
- NEMA Plug Configuration
- NEMA 5-15P
- Rated Joules
- 3040 J
- Coax Surge Protection
- No
- Frequency
- 50/60 Hz
- Features
- Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots
- Watts
- 1800W
- Compatibility
- Personal computers, CAD/CAM/CAE workstations, network nodes, fileservers, phone systems, point-of-sale terminals and audio/visual devices
- Input Voltage
- 120 V AC
- Certifications & Standards
- UL1449 (Let through rating 330V), IEEE 587 category A and B specifications, FCC Part 68, ANSI C62.41, cUL, UL1363, UL497A
- Output Voltage
- 120 V AC
- Maximum Line Current
- 15 A
- Power Handling
- 1800 VA
- Maximum Surge Current
- 78.5 kA
- Dataline Protection
- Fax/Modem/Phone
- Surge Energy Rating
- 3040 J
- Package Contents
- TR-6FM 6 Outlets 120V Surge Suppressor, TR-6FM Surge Suppressor, 6 ft. Telephone cord, Child Safety Covers, Color-coded cord identifiers, Warranty information with instruction manual
- Output Receptacles
- (6) 5-15R
- AC Suppression Response Time
- < 1 ns
- Material of Construction
- Plastic
- AC Suppression Surge Current Rating
- 78,500 amps
- Diagnostic LED(s)
- Yes
- Frequency Compatibility
- 50 / 60 Hz
- Network (Ethernet) Protection
- No
- Protection Modes
- Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
- Mounting Holes or Slots
- Yes
- Outlets Measurement (Center to Center)
- Distance between horizontal outlets = 44.20mm; Distance between vertical outlets = 39mm
- Immunity
- Conforms to IEE 587 / ANSI C62.41
- Package Includes
- TR-6FM Surge Suppressor;6-ft. (1.83 m) Telephone cord;Child Safety Covers;Color-coded cord identifiers;Warranty information with instruction manual
- Nominal Input Voltage(s) Supported
- 120V AC
- EMI / RFI Filtering
- Yes
- Circuit Breaker (amps)
- 15
- Input Cord Details
- SJT
- Diagnostic LED Details
- PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)
- AC Suppression Joule Rating
- 3040
- Maximum Surge Amps
- 105000
- Product Type
- Surge Protector Outlet Strip
