  9. Rack Enclosure, 12U, 27.95 in H, 26.38 in W

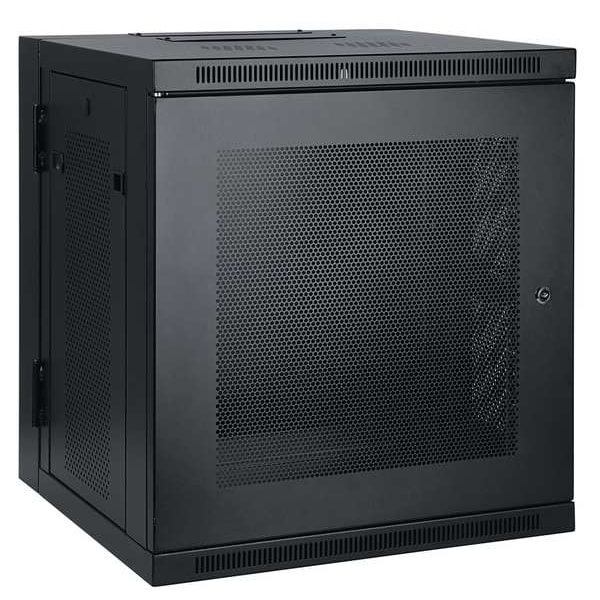

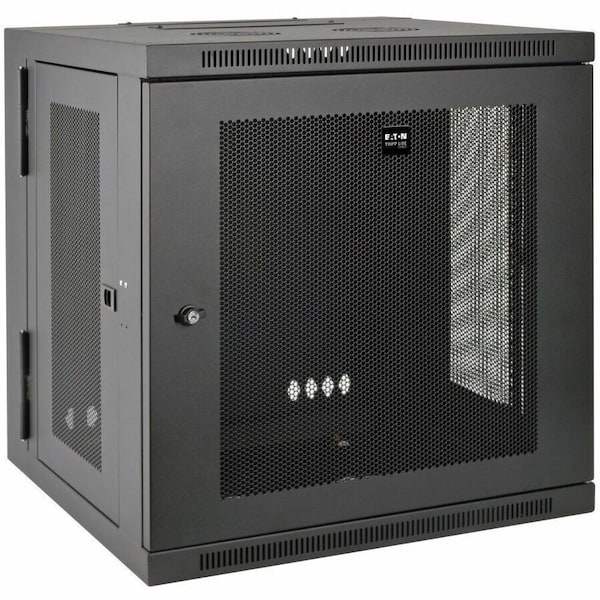

Tripp Lite Rack Enclosure, 12U, 27.95 in H, 26.38 in W SRW12US - main

Rack Enclosure, 12U, 27.95 in H, 26.38 in W

  • Mfr # SRW12US

  • Zoro # G0843403

product price: $534.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
Wall Mount
Load Rating
140 lbs.
Rack Units
12
Height
27.95 in
Width
26.38 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SRW12US
Zoro #
G0843403
UPC #
037332148674
Country of Origin
China

Dimensions

Height
27.95 in
Width
26.38 in
Depth
21.6 in
Overall Height
25 in
Overall Width
23 5/8 in
Minimum Device Depth (in.)
3
Factory Preset Rack Depth (in.)
10.42
Maximum Device Depth (in.)
20.5
Rack Depth
Shallow
Rack Height
12U
Rack Width
19"
Overall Depth
21 5/8 in
Manufacturers Warranty Length
5 yr
Unit Dimensions (hwd / in.)
24.625 x 23.500 x 21.625

Details

Item
Rack Enclosure
Mounting Style
Wall Mount
Load Rating
140 lbs.
Rack Units
12
Finish
Powder Coated
Material
Steel
Includes
(2) Keys
Product Type
Rack Enclosure
Features
Lockable, Vented Side, Vented Top, Vented Bottom
Standards
EIA/ECA-310-E, RoHS Compliant, UKCA
Color
Black
Rack Type
Enclosure
Grounding Lug
Front and Back door frames
Weight Capacity - Stationary (lbs.)
200
Approvals
UL/CSA 60950-1, EIA-310-E, IEC 60297-3-100, IP20 Protection Rating, RoHS
Cable Access Hole Measurement (inches)
9.812 x 2.35 (l x w)
Application/Usage
Networking, LAN Switch, UPS, Patch Panel
Product Color
Black
Maximum Weight Capacity
200 lb
Product Name
SRW12US Wall mount Rack Enclosure Server Cabinet
Form Factor
Wall Mountable
Product Line
SmartRack
Package Contents
SRW12US Wall mount Rack Enclosure Server Cabinet, 20 x M6 Screws, 20 x M6 Cage Nuts, 20 x M6 washers, 20 x 12-24 Screws, 2 x Keys, Owner's Manual
Includes Mounting Hardware
Yes
Overall Load Capacity
200 lb
Grounding Details
Front and Back door frames
Package Includes
SRW12US SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet;(20) M6 screws;(20) M6 cage nuts;(20) M6 washers;(20) 12-24 screws;(2) Keys;Owner's manual
Device Compatibility
Patch Panel; Network Switch; UPS
Product Compliance
EIA/ECA-310-E; UKCA
Number of Vertical Mounting Rails
4

Description

Rack Enclosure, Product Type Rack Enclosure, Color Black, Finish Powder Coated, Material Steel, Mounting Location Wall, Overall Height 25 in, Overall Width 23 5/8 in, Overall Depth 21 5/8 in, Overall Load Capacity 200 lb, Rack Units 12, Includes (2) Keys, Includes Mounting Hardware Yes, Manufacturers Warranty Length 5 yr, Standards EIA/ECA-310-E, RoHS Compliant, UKCA
