  9. Rack Enclosure, 96 in H, 32 in W, 65 in D

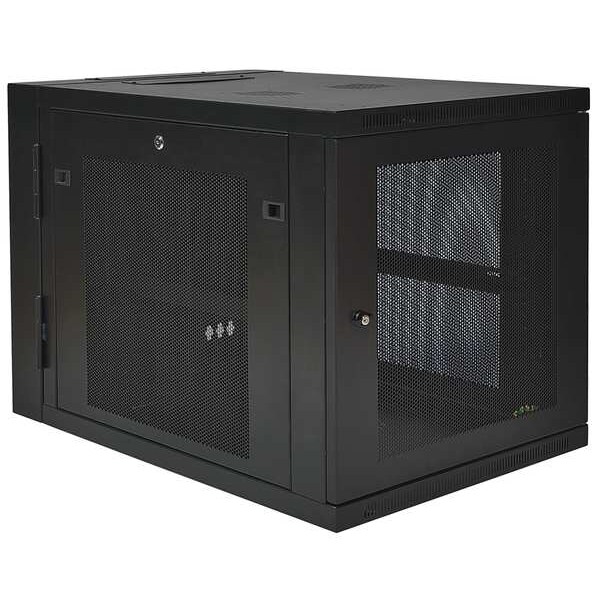

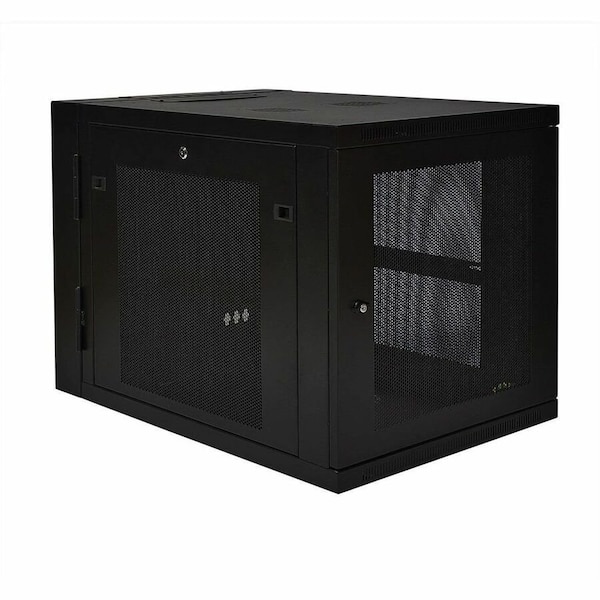

Tripp Lite Rack Enclosure, 96 in H, 32 in W, 65 in D SRW12US33 - main

Rack Enclosure, 96 in H, 32 in W, 65 in D

  • Mfr # SRW12US33

  • Zoro # G3162853

product price: $867.99
/ea
Item requires special delivery charges. A $155.00 per item surcharge will be applied.

Key Features

Mounting Style
Wall Mount
Load Rating
250 lbs.
Rack Units
12
Height
25.0 in
Width
23.63 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SRW12US33
Zoro #
G3162853
UPC #
037332156044
Country of Origin
China

Dimensions

Height
25.0 in
Width
23.63 in
Depth
33.5 in
Overall Height
25 in
Overall Width
23 5/8 in
Factory Preset Rack Depth (in.)
25.99
Maximum Device Depth (in.)
32.5
Rack Depth
Mid
Rack Height
12U
Minimum Device Depth (in.)
3
Rack Width
19"
Overall Depth
33 1/2 in
Manufacturers Warranty Length
5 yr
Unit Dimensions (hwd / in.)
25.100 x 23.600 x 33.500

Details

Item
Rack Enclosure
Mounting Style
Wall Mount
Load Rating
250 lbs.
Rack Units
12
Finish
Powder Coated
Material
Steel
Includes
(2) Keys
Product Type
Rack Enclosure
Standards
EIA/ECA-310-E, RoHS Compliant, UKCA
Color
Black
Rack Type
Enclosure
Grounding Lug
Front and Back door frames
Approvals
EIA-310-D, IEC 60297-3-100, IP20 Protection Rating, RoHS
Cable Access Hole Measurement (inches)
9.812 x 2.35 (l x w)
Weight Capacity - Stationary (lbs.)
250
Product Line
SmartRack
Form Factor
Wall Mountable
Product Name
SRW12US33 33" Deep Wall mount Rack Enclosure Server Cabinet
Additional Information
Adjustable mounting depths from 3" to 33" inches, Ventilated front door and side panels for increased airflow, Hinged cabinet swings away from wall bracket for easy equipment and cable access, Heavy duty construction to handle added leverage, Top and bottom panel cable access openings, Fully assembled for quick installation
Overall Load Capacity
250 lb
Includes Mounting Hardware
Yes
Grounding Details
Front and Back door frames
Number of Vertical Mounting Rails
4
Device Compatibility
Patch Panel; Network Switch; UPS; Server
Product Compliance
EIA/ECA-310-E; UKCA
Package Includes
SRW12US33 SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet;(36) M6 screws;(36) M6 cage nuts;(36) M6 washers;(36) 12-24 screws;(2) Keys;Owner's manual

Description

Rack Enclosure, Product Type Rack Enclosure, Color Black, Finish Powder Coated, Material Steel, Mounting Location Wall, Overall Height 25 in, Overall Width 23 5/8 in, Overall Depth 33 1/2 in, Overall Load Capacity 250 lb, Rack Units 12, Includes (2) Keys, Includes Mounting Hardware Yes, Manufacturers Warranty Length 5 yr, Standards EIA/ECA-310-E, RoHS Compliant, UKCA
