VA Rating - UPS Systems
1.5 kVA
UPS Type
Line Interactive
Input Voltage
110/115/120V AC
Output Voltage
110/115/120V AC
Backup Time (Half/Full Load)
12 min/4.18 min
NEMA Receptacle Configuration
(8) 5-15R
NEMA Plug Configuration
5-15P
Standards
CSA (Canada), FCC Part 15 Class B (USA), NOM (Mexico), RoHS, UL1778
Transfer Time
3 msec from Battery to AC, 4 msec from AC to Battery
Automatic Volts Regulation
Yes
Ports
Contact Closure, DB9 Serial, USB (HID Enabled)
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Fax/Modem Line Protection
Yes
Includes

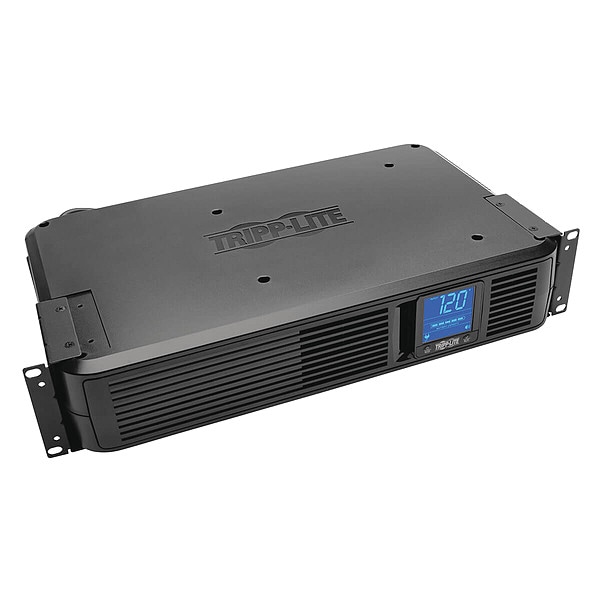

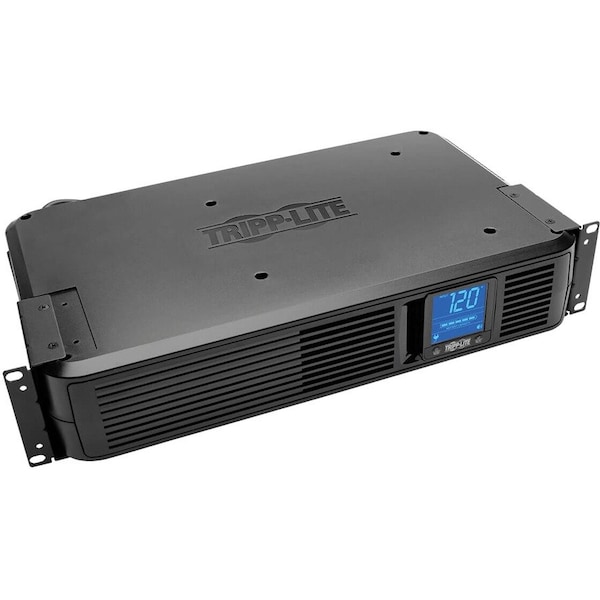

DB9 Serial Cable, Mounting Hardware, SMART1500LCDXL SmartProLCD 120V 1500VA/900W Line-Interactive UPS, Telephone Cable, USB Cables
Special Features
Automatic Voltage Regulation
Capacity - Batteries
1500 VA/900 W
Input Connection
6 ft Cord with NEMA 5-15P Plug
Housing Material
Polycarbonate
Communications Cable
USB and DB9 Serial cabling included
AC Mode Efficiency Rating (100% Load)
0.97
Included Mounting Accessory Description
Included mounting brackets enable installation in 2 and 4 post racks, plus upright tower configurations; Set of 4 rubber-feet enable no-slip horizontal desktop placement installation
Expandable Battery Runtime
Extended runtime supported via optional external battery pack (limit 1)
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation
Recommended Electrical Service
15A 120V
Battery Recharge Rate (Included Batteries)
Less than 4.5 hours from 10% to 90%
Audible Alarm
Audible alarm indicates power-failure and low-battery conditions; Alarm can be permanently silenced via LCD interface
Undervoltage Correction
Input voltages between 93 and 107 are boosted by 14%
Nominal Output Voltage(s) Supported
110V; 115V; 120V
AC Mode BTU / Hr. (Full Load)
78
Output Watt Capacity (Watts)
900
Primary Form Factor
Rackmount
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Internal UPS Replacement Battery Cartridge
See RBC Selector for replacement battery information
Communications Interface
USB (HID enabled); DB9 Serial; Contact closure
UPS Certifications
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Input Circuit Breakers
10A
Nominal Input Voltage(s) Supported
110V AC; 115V AC; 120V AC
Relative Humidity
Up to 95%, non-condensing
Output kVA Capacity (kVA)
1.5
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
High Voltage Transfer to Battery Power (Setpoint)
147
Battery Mode BTU / Hr. (Full Load)
721
Overvoltage Correction
Input voltages between 128 and 147 are reduced by 12%
Battery Access
Battery access door enables hot-swappable, user replaceable internal battery
UPS AC Suppression Joule Rating
1038
Severe Undervoltage Correction
Input voltages between 75 and 92 are boosted by 30%
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Half Load Runtime (min.)
12 min. (450w)
Output Voltage Regulation (Battery Mode)
+/- 5%
Rated input current (Maximum Load)
8.6A
Output AC Waveform (Battery Mode)
PWM sine wave
Low Voltage Transfer to Battery Power (Setpoint)
75
External Battery Pack Compatibility
BP24V15RT2U (limit 1)
Front Panel LCD Display
LCD interface reports Input Voltage, Output Voltage, Battery Charge Percentage, Estimated Runtime in Minutes, Load Percentage, Load Watts; Additional LCD icons report battery charge level (5 "bars"), Line Power Mode, Battery Mode, Replace Battery and Auto-Voltage Regulation / AVR status; LCD interface control options include Alarm Disable, Display Scrolling, Initiate Self-test, LCD brightness, External Battery setting and line sensitivity
Output kW Capacity (kW)
0.9
Individually Controllable Load Banks
No
Output Voltage Regulation (Line Mode)
-18%, +8%
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions; DB9 port also supports contact-closure messaging for power-fail (pins 1 & 9) and power-restored (pins 1, 8)
Installation Form Factors Supported with Included Accessories
2 post 19 inch rackmount; 4 post 19 inch rackmount; Tower
EMI / RFI AC Noise Suppression
Yes
Output Volt Amp Capacity (VA)
1500
UPS AC Suppression Response Time
Instantaneous
Full Load Runtime (min.)
4 min. (900w)
DC System Voltage (VDC)
24
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Load Capacity
1500 VA/900 W
Package Contents
Smart LCD SMART1500LCDXL 1500 VA Tower/Rack Mountable UPS, USB Cable, Serial Cable, Phone Cable, Rack/Tower Mounting Kit, Owner's Manual
Typical Battery Recharge Time
4.50 Hour
Product Certifications
CSA (Canada); NOM (Mexico); UL 1778
Operating Elevation (ft.)
6562
High Availability UPS Features
Automatic Voltage Regulation (AVR); Hot swappable batteries; Surge/noise protection
UPS Applications
Home/Office Desktop; Audio/Video; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
Product Compliance
FCC Part 15 Class B (USA)
Output Capacity (VA)
1500
Package Includes
SMART1500LCDXL SmartPro LCD 120V 1500VA/900W Line-Interactive UPS;USB cable;DB9 serial cable;Telephone cable;Mounting hardware;Owner's Manual
Output Capacity (Watts)
900
External Battery Compatible
External Battery Pack Compatible
Transfer Time - Minimum
3 msec
Manufacturer Warranty
2 yr
Input Current - Maximum
8.6 A
Operating Temperature - Maximum
104 Degrees F
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Transfer Time - Maximum
4 msec
External Battery Pack Part Number
BP24V15RT2U
Power Rating - Apparent
1.5 kVA
Operating Temperature - Minimum
32 Degrees F
Battery Chemistry
Valve Regulated Lead Acid
Output Ports Included
Contact Closure, DB9 Serial, USB
Power Rating - Real
900 W
Data Line Protection
Includes Data Line Surge Protection
Run Time - Full Load
4.18 min
Includes Battery
Battery Included
Receptacle Configuration
5-15R
Surge Suppression Rating
1,038 J
Number of Outlets - UPS
8
Battery Recharge Time
4.5 hr
Number of Outlets - Surge Only
8
Audible Alarm Conditions
Low Battery, Power Outage
