CSA (Canada), FCC Part 15 Class B (USA), NOM (Mexico), RoHS, UL1778
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
NEMA Plug Configuration
5-15P
Input Current
8.5 A
NEMA Receptacle Configuration
(8) 5-15R
Ports
DB9 Serial, USB (HID Enabled)
Fax/Modem Line Protection
Yes
Display Type
LCD
Footnotes
3,4,6
Hz
60 Hz
Special Features
LCD Display Indicates Input Voltage, Battery Capacity and A Variety Of Operating Conditions, Display is Rotatable For Horizontal or Vertical Viewing, Surge Suppression, Long-Lasting Battery Support, Regulates Brownouts and Overvoltages From 75-147V, Poweralert Software
Input voltages between 128 and 147 are reduced by 12%
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Low Voltage Transfer to Battery Power (Setpoint)
75
Input Circuit Breakers
10A
Installation Form Factors Supported with Included Accessories
2 post 19 inch rackmount; 4 post 19 inch rackmount; Tower
Nominal Input Voltage(s) Supported
120V AC
Included Mounting Accessory Description
Included mounting brackets enable installation in 2 and 4 post racks, plus upright tower configurations; Set of 4 rubber-feet enable no-slip horizontal desktop placement
Output Voltage Regulation (Battery Mode)
115V (+/- 5%)
Half Load Runtime (min.)
11.8 min. (450w)
Audible Alarm
Audible alarm indicates power-failure and low-battery status; Alarm can be disabled entirely via front panel LCD interface (see manual)
Expandable Runtime
No
Full Load Runtime (min.)
4.4 min. (900w)
Output kVA Capacity (kVA)
1.5
Output Watt Capacity (Watts)
900
UPS Certification Details
UL1778: 2014 R8.15 5TH EDITION; CSA-C22.2 NO. 107.3-14 3RD EDITION; FCC Part 68 Certification Number 5WSWP00B001; Industry Canada Certification Number 3449-001, REN: 0.1
Rated input current (Maximum Load)
8.6A
Primary Form Factor
Rackmount
Cooling Method
Fan
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147

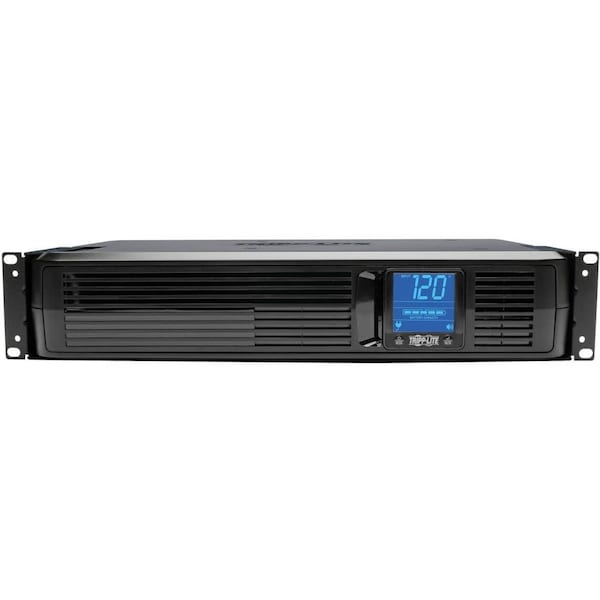

Front Panel LCD Display
Backlighted LCD screen offers detailed UPS status information, configuration options and Error message reporting; STATUS INFORMATION includes Input Voltage, Output Voltage, Estimated Runtime (minutes), Output Load Percentage, Output Load Wattage, Battery Charge Percentage, Graphical 5-Bar Battery Charge Level and UPS Operating Mode Display / CONFIGURATION OPTIONS include Power Sensitivity, LCD Status Information Scrolling, Alarm Disable, LCD Brightness and Self Test / REPORTED ERROR MESSAGES include Replace-Battery and Overload conditions; LCD Screen rotates for vertical or horizontal UPS placement
Output Voltage Regulation (Line Mode)
-18%, +8%
UPS AC Suppression Response Time
Instantaneous
Communications Interface
Contact closure; DB9 Serial; USB (HID enabled)
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Severe Undervoltage Correction
Input voltages between 75 and 92 are boosted by 30%
Battery Recharge Rate (Included Batteries)
Less than 4.5 hours from 10% to 90%
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions; DB9 provides contact-closure notification of AC Present (pins 1,9 connected) and AC Fail (pins 1,8 connected)
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
UPS AC Suppression Joule Rating
870
Undervoltage Correction
Input voltages between 93 and 107 are boosted by 14%
AC Mode BTU / Hr. (Full Load)
78
Input Phase
Single-Phase
Alarm Cancel Operation
Press the MUTE/ENTER button during a power failure to silence the alarm; Once silenced, alarm will re-sound to indicate low-battery status
Recommended Electrical Service
15A 120V
Individually Controllable Load Banks
No
AC Mode Efficiency Rating (100% Load)
0.98
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
High Voltage Transfer to Battery Power (Setpoint)
147
DC System Voltage (VDC)
24
LED Indicators
Front panel LCD display
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Internal UPS Replacement Battery Cartridge
IMPORTANT BATTERY REPLACEMENT INFORMATION > If your SMART1500LCD UPS has no battery replacement door, please contact a local electronics repair technician to source and install a matching replacement battery; If your SMART1500LCD UPS is equipped with a battery access door, please order Tripp Lite RBC1500 (quantity 1) replacement battery
UPS Dataline Suppression Details
168 joules; Compatible with POE applications
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Switches
ON/OFF/MODE button provides UPS on/off power control (long-press) and advances the LCD screen display (short tap); MUTE/ENTER button provides temporary alarm cancel, plus selection and confirmation of on-screen configuration options
UPS Certifications
Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
EMI / RFI AC Noise Suppression
Yes
Communications Cable
USB and DB9 Serial cabling included
Output AC Waveform (Battery Mode)
PWM sine wave
Output Volt Amp Capacity (VA)
1500
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Maximum Operating Temperature
122°F (50°C)
Protection Type
Brownout, Over Voltage
Typical Battery Recharge Time
8 Hour
Additional Information
Cold Start Capable, Automatic Voltage Regulation (AVR), LCD display indicates input voltage, battery capacity and a variety of operating conditions, Switches: Two front panel switches - one main on/off power switch and one dual-function "alarm cancel"/"self test" button
Package Contents

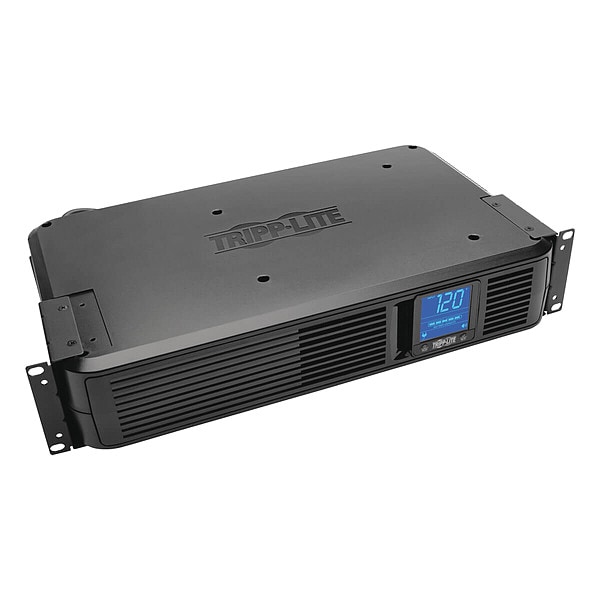

SmartPro 1500 VA Rackmount/Tower Digital UPS, USB Cable, Serial Cable, Mounting Hardware, Manual with Warranty Information
Surge Energy Rating
480 J
Form Factor
Rack/Tower
Assembly Required
No
Load Capacity
1500 VA/900 W
USB
Yes
Serial Port
Yes
Waveform Type
Pulse-width Modulated Sine Wave
Dataline Protection
RJ-45
Surge Suppression Rating
168 J
Power Rating - Real
900 W
External Battery Compatible
Not External Battery Pack Compatible
Operating Temperature - Maximum
104 Degrees F
Receptacle Configuration
5-15R
Audible Alarm Conditions
Low Battery, Power Outage
Run Time - Full Load
4.4 min
Manufacturer Warranty
2 yr
Transfer Time - Minimum
1 msec
Frequency
60 Hz
Output Ports Included
Contact Closure, DB9 Serial, USB
Operating Temperature - Minimum
32 Degrees F
Transfer Time - Maximum
4 msec
Includes Battery
Battery Included
Number of Outlets - Surge Only
8
Plug Configuration
5-15P
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Data Line Protection
Includes Data Line Surge Protection
Power Rating - Apparent
1.5 kVA
Battery Recharge Time
4.5 hr
Battery Chemistry
Valve Regulated Lead Acid
Number of Outlets - UPS
8
Input Current - Maximum
8.6 A
Description
Smart UPS, Line Interactive, Power Rating 1.5 kVA, Wattage 900 W, Input Voltage 120V AC, Output Voltage 115V AC, 120V AC, Backup Time (Half/Full Load) 13 min/3.5 min, Mounting Rack/Tower, Outlet Type (4) Surge, (4) UPS/Surge, Number of Outlets 8, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration 5-15R, NEMA Plug Configuration 5-15P, Automatic Volts Regulation Yes, Fax/Modem Line Protection Yes, Transfer Time 2 to 4 msec, Width 4 in, Depth 11 in, Height 17 in
