VA Rating - UPS Systems
2.2 kVA
UPS Type
Line Interactive
Output Voltage
110/115/120V
Backup Time (Half/Full Load)
27 min/11 min
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Includes
SMART2200NET UPS System, Three 6ft Network Cables
Standards
CSA (Canada), FCC Part 15 Class a (USA), NOM (Mexico), RoHS, UL1778
Fax/Modem Line Protection
No
Automatic Volts Regulation
Yes
Ports
Contact Closure, DB9 Serial
NEMA Plug Configuration
5-15P
Transfer Time
2 to 4 msec
NEMA Receptacle Configuration
(6) 5-15R
Special Features
Diagnostic LED's Indicate 17 Performance Conditions, Large Internal Batteries, Poweralert Software
Battery Type
Sealed Lead Acid (SLA)
Operating Temp. Range
122°F (50°C)
Capacity - Batteries
2200 VA/1700 W
Input Connection
8 ft Cord with NEMA 5-15P Plug
Housing Material
Polycarbonate
Primary Form Factor
Tower
Rated input current (Maximum Load)
15A
Output Voltage Regulation (Battery Mode)
+/- 5%
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Audible Alarm
Audible alarm indicates power-failure and low-battery conditions
Battery Mode BTU / Hr. (Full Load)
867
AC Mode BTU / Hr. (Full Load)
59
Nominal Input Voltage(s) Supported
120V AC
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 87 to 140
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Half Load Runtime (min.)
27 min. (850w)
Output AC Waveform (Battery Mode)
PWM sine wave
Individually Controllable Load Banks
Yes
Low Voltage Transfer to Battery Power (Setpoint)
87
EMI / RFI AC Noise Suppression
Yes
Output kW Capacity (kW)
1.7
Output Volt Amp Capacity (VA)
2200
DC System Voltage (VDC)
24
AC Mode Efficiency Rating (100% Load)
0.99
Relative Humidity
0 to 95%, non-condensing
Severe Undervoltage Correction
Input voltages between 87 and 94 are boosted by 22%
Expandable Battery Runtime
Extended runtime supported via optional external battery packs
Output Voltage Regulation (Line Mode)
-2.6
Overvoltage Correction
Input voltages between 127 and 140 are reduced by 12%
UPS AC Suppression Response Time
Instantaneous
Communications Interface
DB9 Serial; Contact closure
Recommended Electrical Service
20A 120V
UPS AC Suppression Joule Rating
720
Undervoltage Correction
Input voltages between 95 and 105 are boosted by 10%
Full Load Runtime (min.)
11 min. (1700w)
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions; contact closure communications via two additional DB9 ports (3 total)
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Output kVA Capacity (kVA)
2.2
Battery Recharge Rate (Included Batteries)
Less than 9 hours from 10% to 90% (typical, full load discharge)
LED Indicators
5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
High Voltage Transfer to Battery Power (Setpoint)
140
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Communications Cable
3 DB9 cables included
Output Capacity Details
Output is reduced to 1200W maximum with 1-2 external battery packs and 800W maximum with 3 or more external battery packs
Load Management Receptacles
Two switchable single outlet 5-15R load banks
UPS Certifications
Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
Input Circuit Breakers
20A
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation; set of 4 rear-panel switches control system enable and contact closure port inverter shutoff commands
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Output Watt Capacity (Watts)
1700
External Battery Pack Compatibility
BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible)
Software Included
PowerAlert Software
Surge Energy Rating
720 J
Status Indicators
Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information
Load Capacity
2200 VA/1700 W
Total Number of Expansion Slots
3
Waveform Type
Pulse-width Modulated Sine Wave
Typical Battery Recharge Time
4 Hour
Battery Chemistry
Valve Regulated Lead Acid
Maximum Operating Temperature
122°F (50°C)
Network Management
SNMP Manageable
Additional Information

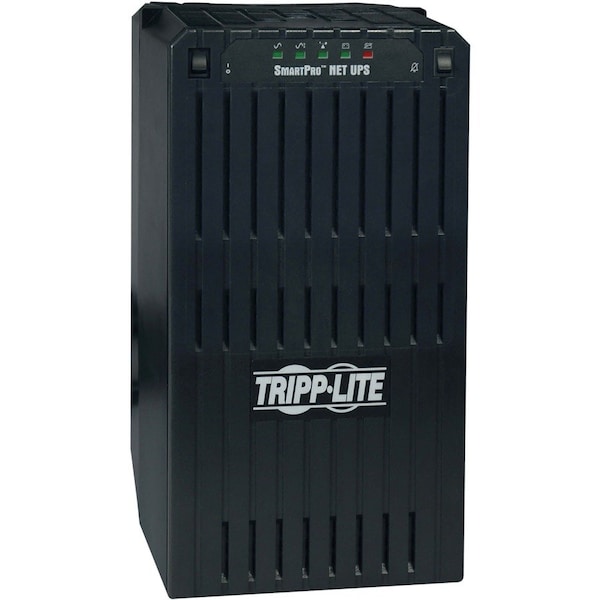

SMART2200NET line interactive UPS offers battery derived AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression, 2200VA / 1700 watt power handling capability supports a variety of networking, telecom and other sensitive electronic devices, Large internal batteries offer runtimes of 27 minutes at half load (1100VA / 850 watts) and 11 minutes at full load (2200VA / 1700 watts), Runtime is further expandable with optional external BP24V33 battery packs (output VA is de-rated as external battery packs are added, see specifications), Automatic Voltage Regulation (AVR) circuits maintain 120V nominal output over an input voltage range of 87-140V, Includes 6 fully protected NEMA 5-15R outlets with 2 single outlet load banks that can be individually powered off and back on again via software interface, PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user defined script commands, Offers simultaneous monitoring of up to 3 directly connected devices through included DB9 contact closure and RS-232 enabled interfaces, or the monitoring of any number of additional servers over IP with included PowerAlert monitoring software, In addition to the contact closure monitoring of on battery, low battery and power restored messaging, built-in RS-232 interface supports messaging of UPS and line power status, including AC line voltage, DC battery voltage and remaining battery capacity, Supports activate self-test and UPS output power control for scheduled or immediate reboot of connected equipment, Diagnostic LEDs (indicate 17 performance conditions), UL (USA), cUL (Canada), NOM (Mexico), FCC Class A (Business) Listed, $250,000 Ultimate Lifetime Insurance (USA & Canada Only)
Package Contents
SMART2200NET UPS System, PowerAlert Software CD, 3 x 6-ft. network cables, Warranty information, Instruction manual
Transfer Time - Minimum
2 msec
Input Current - Maximum
15 A
Manufacturer Warranty
2 yr
Audible Alarm Conditions
Low Battery
Run Time - Full Load
11 min
Surge Suppression Rating
720 J
Operating Temperature - Maximum
104 Degrees F
External Battery Pack Part Number
BP24V28-2U (Limit 1), BP24V70-3U (Multi-Pack Compatible)
External Battery Compatible
External Battery Pack Compatible
Receptacle Configuration
5-15R
Battery Recharge Time
9 hr
Power Rating - Apparent
2.2 kVA
Data Line Protection
Includes Data Line Surge Protection
Operating Temperature - Minimum
32 Degrees F
Number of Outlets - Surge Only
6
Output Ports Included
DB9 Serial
Transfer Time - Maximum
4 msec
Power Rating - Real
1.77 kW
Number of Outlets - UPS
6
Includes Battery
Battery Included
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
