Backup Time (Half/Full Load)
14 min/5 min
Transfer Time
No transfer time (0 ms.) in online, double-conversion mode
Standards
UL1778 (USA), CSA (Canada), NOM (Mexico), FCC Part 15 Category A (EMI)
NEMA Plug Configuration
L5-30P
NEMA Receptacle Configuration
(4) 5-15R; (4) 5-15/20R; (1) L5-30R
Low Voltage Transfer to Battery Power (Setpoint)
80V (100% load), 65V ( <70% load)
Voltage Regulation Description
Online, double-conversion power conditioning
UPS AC Suppression Joule Rating
510
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Output Voltage Regulation (Battery Mode)
+/- 2%
Output Capacity Details
OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150% load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits)
Frequency Compatibility Details
Output frequency matches input nominal on startup, defaults to 60 Hz on cold-start
AC Mode BTU / Hr. (Full Load)
1117
External Battery Pack Compatibility
BP72V15-2U (limit 1); BP72V28RT-3U (multi-pack compatible); BP72V18 -2US (multi-pack compatible)
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Output kVA Capacity (kVA)
3
Individually Controllable Load Banks
Yes
Communications Interface
Contact closure; DB9 Serial; EPO (emergency power off); Pre-installed network card; Slot for SNMP/Web interface; USB (HID enabled)
Severe Undervoltage Correction
2% output voltage regulation during undervoltages to 65 (under 70% load only)
Output Voltage Regulation (Line Mode)
+/- 2%
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
Rated input current (Maximum Load)
24A
Included Mounting Accessory Description
Includes 4 post rackmount installation accessories
High Voltage Transfer to Battery Power (Setpoint)
150
Overvoltage Correction
2% output voltage regulation during overvoltages to 150
Battery Recharge Rate (Included Batteries)
Less than 6 hours from 10% to 80% (typical, full load discharge)
Battery Replacement Description
Hot-swappable, user replaceable batteries
EMI / RFI AC Noise Suppression
Yes
Output Voltage Regulation (Economy Line Mode)
+/- 10%
Nominal Output Voltage(s) Supported
110V; 120V
Output kW Capacity (kW)
2.4
Battery Mode BTU / Hr. (Full Load)
1224
Output Volt Amp Capacity (VA)
3000
Output Circuit Breakers
15A branch rated (x2) - each breaker protects 4 outlets, L5-30R is unbreakered
LED Indicators
14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery and fault status information; 4-LED meter displays load and battery charge levels; LED panel rotates for viewing in rack/tower formats
Output AC Waveform (Battery Mode)
Pure Sine wave
Expandable Battery Runtime
Supports extended runtime with optional external battery packs
Crest Factor
0.125694444444444
Half Load Runtime (min.)
14 min. (1200w)
Nominal Input Voltage(s) Supported
110V AC; 120V AC
UPS Certifications
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
Recommended Electrical Service
30A 120V
Input Circuit Breakers
40A
DC System Voltage (VDC)
72
Communications Cable
USB and DB9 cabling included
Network Monitoring Port Description
Includes pre-installed Network Management Card; DB9 port supports RS232 and contact closure communications; Economy-mode setting option is available using PowerAlert software and DB9 Serial cable connection OR installed Network Management Card
Primary Form Factor
Rackmount
Audible Alarm
Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Relative Humidity
0 to 95%, non-condensing
Installation Form Factors Supported with Optional Accessories
2 post rackmount ( 2POSTRMKITHD ); Tower ( 2-9USTAND )
Output Watt Capacity (Watts)
2400
Undervoltage Correction
2% output voltage regulation during undervoltages to 80
AC Economy Mode BTU / Hr. (Full Load)
523
AC Economy Mode Efficiency Rating (100% Load)
0.94
Full Load Runtime (min.)
5 min. (2400w)
Battery Access
Front panel battery access door
PowerAlert Software
For local monitoring via the UPS™s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Internal UPS Replacement Battery Cartridge
RBC96-3U (quantity 1)
Switches
2 switches control off/on power status and alarm-cancel/self-test operation
High Availability UPS Features
Automatic inverter bypass; Hot swappable batteries
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch
Load Management Receptacles
Two switchable four-outlet load banks, (bank 1 - four 5-15/20R, bank 2 - four 5-15R outlets)
UPS AC Suppression Response Time
Instantaneous
Package Contents

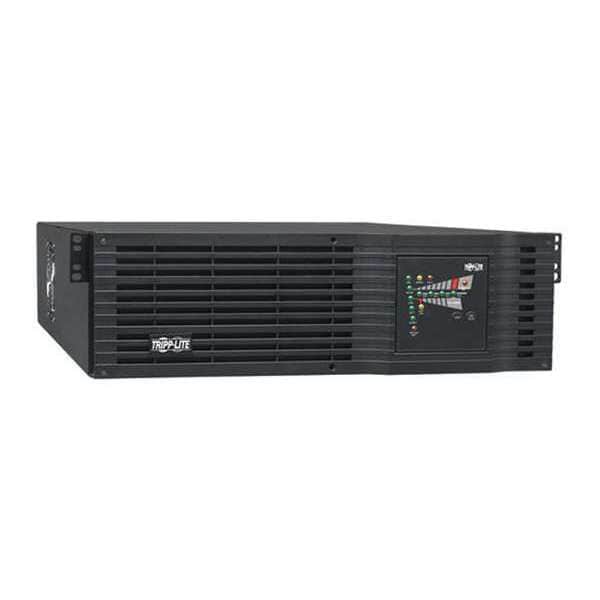

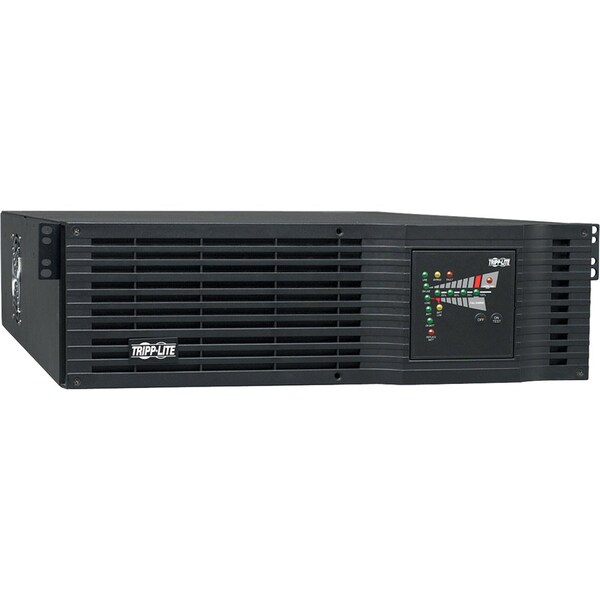

SU3000RTXL3UN US with Pre-installed WEBCARDLX, Poweralert Software and Cabling, Mounting Hardware For 4 Post Rack Enclosures, Instruction Manual
Status Indicators
14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery and fault status information, 4-LED meter displays load and battery charge levels, LED panel rotates for viewing in rack/tower formats
Waveform Type
Sine Wave, Pure Sine Wave
Total Number of Expansion Slots
1
Thermal Dissipation
326.10 W
Dataline Protection
RJ-45, RJ-11
Maximum Operating Temperature
104°F (40°C)
Software Included
Poweralert Software
Load Capacity
3000 VA/2400 W
Network Management
SNMP Manageable
Alarm
Overload, Remote Shutdown, UPS StartUp, Low Battery, Power Failure, UPS Fault
Surge Energy Rating
510 J
Protection Type
EMI / RFI, Over Voltage, Brownout, Under Voltage
Typical Battery Recharge Time
6 Hour
Output Capacity (Watts)
2400
Package Includes
SU3000RTXL3UN SmartOnline 120V 3kVA 2.4kW On-Line Double-Conversion UPS;Pre-installed WEBCARDLX network interface;USB cable;DB9 cable;EPO cable;Rack-mounting hardware;Owner's manual
Installation Form Factors Supported with Included Accessories
4 post 19 inch rackmount
Product Certifications
CSA (Canada); NOM (Mexico); UL 1778
Network Management Cards
WEBCARDLXE
UPS Applications
Mission Critical Applications
Output Capacity (VA)
3000
Online Mode Heat Dissipation (BTU/Hr) @ Full Load
1117
Product Compliance
FCC Part 15 Class A (USA)
