- Item
- Smart UPS
- UPS Type
- Online
- Power Rating
- 750VA
- Mounting
- Rack
- Wattage
- 600 W
- Input Voltage
- 120/110/100V AC
- Output Voltage
- 120/110/100V AC
- Backup Time (Half/Full Load)
- 11 min/4 min
- Outlet Type
- 5-15R
- Number of Outlets
- 6
- NEMA Plug Configuration
- 5-15P
- NEMA Receptacle Configuration
- (6) 5-15R
- Hz
- 50/60 Hz
- Transfer Time
- No transfer time (0 ms.) in online, double-conversion mode
- Housing Material
- Steel
- Battery Type
- VRLA
- Battery Recharge Rate (Included Batteries)
- Less than 6 hours from 10% to 80% (typical, full load discharge)
- Undervoltage Correction
- 2% output voltage regulation during undervoltages to 80
- Individually Controllable Load Banks
- Yes
- Internal UPS Replacement Battery Cartridge
- RBC92-2U
- Input Phase
- Single-Phase
- UPS AC Suppression Response Time
- Instantaneous
- Voltage Regulation Description
- Online, double-conversion power conditioning
- Nominal Output Voltage(s) Supported
- 100V; 110V; 120V
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
- AC Mode Efficiency Rating (100% Load)
- 0.87
- UPS AC Suppression Joule Rating
- 480
- Battery Access
- Front panel battery access door
- Communications Cable
- USB and DB9 cabling included
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Nominal Input Voltage(s) Supported
- 100V AC; 110V AC; 120V AC
- Relative Humidity
- 0 to 95%, non-condensing
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category B (EMI)
- High Voltage Transfer to Battery Power (Setpoint)
- 150
- Battery Mode BTU / Hr. (Full Load)
- 333
- Output Voltage Regulation (Battery Mode)
- +/- 2%
- External Battery Pack Compatibility
- BP24V15RT2U (limit 1); BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible); BP24V36-2US (multi-pack compatible)
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Crest Factor
- 0.125694444444444
- Audible Alarm
- Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
- Half Load Runtime (min.)
- 11 min. (300w)
- Output Volt Amp Capacity (VA)
- 750
- Network Monitoring Port Description
- Includes pre-installed Network Management Card; DB9 port supports RS232 and contact closure communications; Economy-mode setting option is available using PowerAlert software and DB9 Serial cable connection OR installed Network Management Card
- Rated input current (Maximum Load)
- 8.6A
- Input Circuit Breakers
- 15A
- Switches
- 2 Switches control off/on power status and alarm-cancel/self-test operation
- AC Mode BTU / Hr. (Full Load)
- 306
- AC Economy Mode Efficiency Rating (100% Load)
- 0.97
- Storage Temperature Range
- +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Overvoltage Correction
- 2% output voltage regulation during overvoltages to 150
- Output kVA Capacity (kVA)
- 0.75
- LED Indicators
- 14 LEDs indicate line power, online mode, bypass mode, on-battery, overload, battery low, replace battery and fault status information; 4-LED meter displays load and battery charge levels; LED panel rotates for viewing in rack/tower formats
- Full Load Runtime (min.)
- 4 min. (600w)
- PowerAlert Software
- For local monitoring via the UPS™s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- Communications Interface
- Contact closure; DB9 Serial; EPO (emergency power off); Pre-installed network card; Slot for SNMP/Web interface; USB (HID enabled)
- Output Watt Capacity (Watts)
- 600
- Installation Form Factors Supported with Optional Accessories
- 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
- Primary Form Factor
- Rackmount
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- Alarm Cancel Operation
- Power-fail alarm can be silenced using alarm-cancel switch
- Cooling Method
- Fan
- Frequency Compatibility Details
- Output frequency matches input nominal on startup, defaults to 60 Hz on cold-start
- Power Factor
- 0.8
- EMI / RFI AC Noise Suppression
- Yes
- Load Management Receptacles
- Two switchable single-outlet 5-15R load banks
- Expandable Runtime
- Yes
- Low Voltage Transfer to Battery Power (Setpoint)
- 80V (100% load), 65V ( <70% load)
- Recommended Electrical Service
- 15A 120V
- Severe Undervoltage Correction
- 2% output voltage regulation during undervoltages to 65 (under 70% load only)
- High Availability UPS Features
- Automatic inverter bypass; Hot swappable batteries
- Output Voltage Regulation (Line Mode)
- +/- 2%
- Included Mounting Accessory Description
- Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
- Expandable Battery Runtime
- Extended runtime supported via optional external battery packs
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
- Output Capacity Details
OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150% load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits)
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- DC System Voltage (VDC)
- 24
- Load Capacity
- 750 VA/600 W
- Package Contents

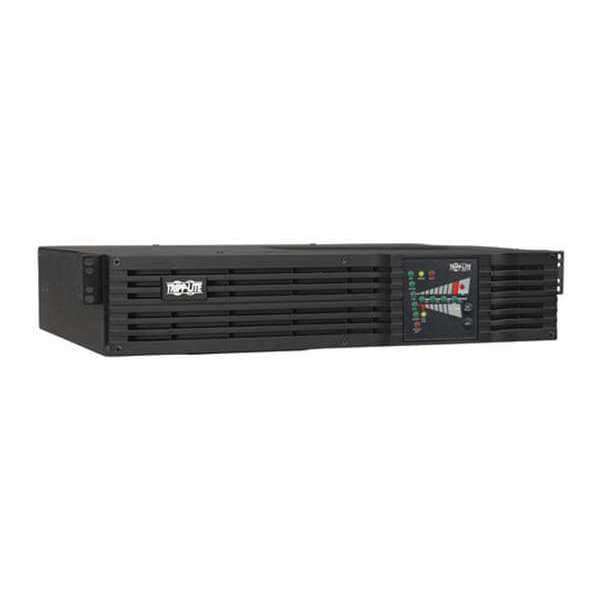

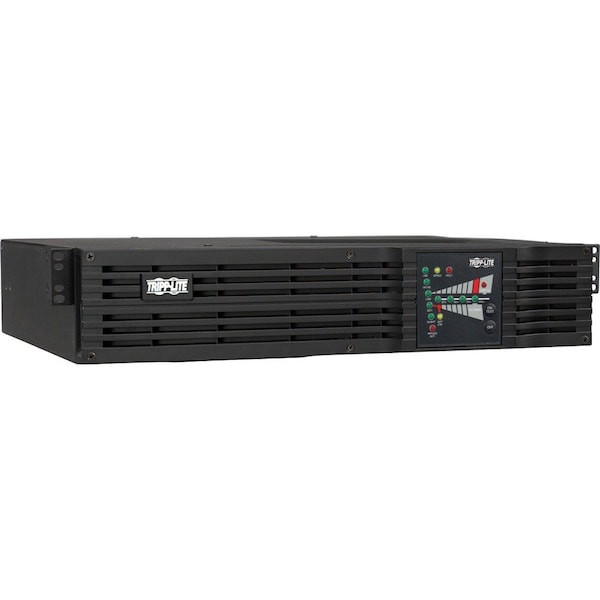

- SmartOnline SU750RTXL2UN 750VA Tower/Rack Mountable, PowerAlert Software and Cabling, Mounting Hardware for 4-post Rack Enclosures, Instruction Manual
- Form Factor
- Rack/Tower
- Network Management Cards
- WEBCARDLX
- Output Capacity (Watts)
- 600
- Product Certifications
- CSA (Canada); UL 1778
- Product Compliance
- FCC Part 15 Class B (USA)
- UPS Applications
- Mission Critical Applications
- Output Capacity (VA)
- 750
- Package Includes
- SU750RTXL2U with pre-installed WEBCARDLX network interface;USB, DB9 and EPO cabling;Mounting hardware for 4-post rack enclosures;Instruction manual
