VA Rating - UPS Systems
1.05 kVA
UPS Type
Line Interactive
Input Voltage
100/110/120V AC
Output Voltage
100/110/120V AC
Backup Time (Half/Full Load)
19 min/7 min
Transfer Time
4 to 6 msec
NEMA Receptacle Configuration
(8) 5-15R
Footnotes
Slot for SNMPWEBCARD
Ports
RS232, Slot for SNMPWEBCARD, TEL/DSL, USB
Automatic Volts Regulation
Yes
Includes

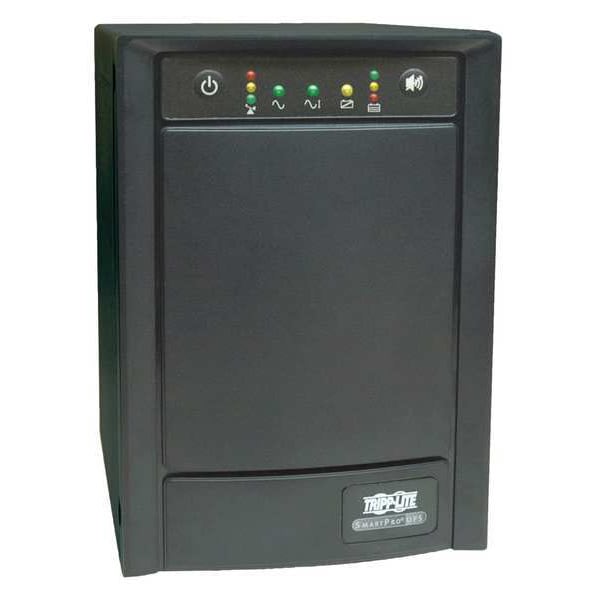

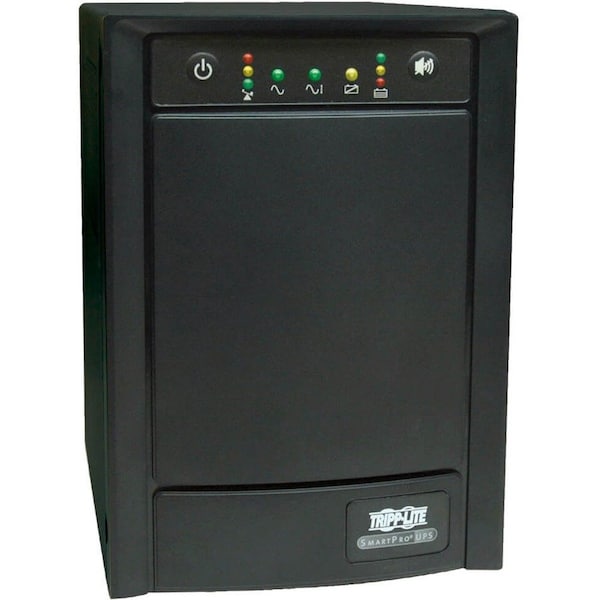

DB9 Cable, SMART1050SLT SmartPro120V 1.05kVA 650W Line-Interactive Sine Wave UPS, USB Cables
NEMA Plug Configuration
5-15P
Fax/Modem Line Protection
Yes
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Special Features
Hot Swappable Batteries
Standards
CSA (Canada), FCC Part 15 Class B (USA), NOM (Mexico), RoHS, UL1778
Capacity - Batteries
1050 VA/650 W
Operating Temp. Range
104°F (40°C)
Battery Type
Sealed Lead Acid (SLA)
Input Connection
NEMA 5-15P Plug
Communications Interface
USB (HID enabled); DB9 Serial; Slot for SNMP/Web interface
Frequency Compatibility Details
Automatic frequency selection
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 95 to 145 (120v), 87 to 133 (110v), 83 to 121 (100v)
UPS Certifications
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)
Battery Mode BTU / Hr. (Full Load)
455
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
Battery Access
Battery access door
UPS AC Suppression Response Time
Instantaneous
Nominal Output Voltage(s) Supported
100V; 110V; 120V
Half Load Runtime (min.)
19 min. (325w)
LED Indicators
Status LEDs indicate line power, battery power, AVR, overload and replace battery status - with a 3-LED level meter for load and battery charge level
Site Wiring Fault Indication
Rear panel site wiring fault LED
High Voltage Transfer to Battery Power (Setpoint)
145V (120V), 133V (110V), 121V (100V)
Battery Replacement Description
Hot-swappable, user replaceable batteries
Relative Humidity
0 to 95%, non-condensing
Output Voltage Regulation (Line Mode)
-13%, + 15%
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications.
Primary Form Factor
Tower
Full Load Runtime (min.)
7 min. (650w)
Low Voltage Transfer to Battery Power (Setpoint)
95V (120V), 87V (110V), 83V (100V)
Nominal Input Voltage(s) Supported
100V AC; 110V AC; 120V AC
DC System Voltage (VDC)
24
Internal UPS Replacement Battery Cartridge
RBC24-SLT
Rated input current (Maximum Load)
6.1A (120V), 6.6A (110V), 7.2A (100V)
EMI / RFI AC Noise Suppression
Yes
Output Volt Amp Capacity (VA)
1050
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation; rear panel protected switches support nominal voltage selection
Output Voltage Regulation (Battery Mode)
+/- 5%
Battery Recharge Rate (Included Batteries)
Less than 6 hours from 10% to 90% (typical, full load discharge)
Individually Controllable Load Banks
No
UPS AC Suppression Joule Rating
690
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Recommended Electrical Service
15A 120V
AC Mode BTU / Hr. (Full Load)
107
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch
Audible Alarm
Audible alarm indicates power failure and overload conditions
Overvoltage Correction
Voltage reduction of 12% applies when input is 127 to 145 (120v), 116 to 133 (110v), 111 to 121 (100v)
AC Mode Efficiency Rating (100% Load)
0.95
Audible Noise
Audible Noise < 50 dBA at Front Side 1 Meter
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
Output AC Waveform (Battery Mode)
Pure Sine wave
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
Undervoltage Correction
Voltage boost of 14% applies when input is 95 to 108 (120v), 87 to 99 (110v), 83 to 90 (100v)
Output kVA Capacity (kVA)
1.05
Network Management Cards
SNMPWEBCARD ; WEBCARDLX ; RELAYIOCARD
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Communications Cable
USB and DB9 cabling included
High Availability UPS Features
Hot swappable batteries
Network UPS Tools Compatibility
NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
Output Watt Capacity (Watts)
650
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions
Battery Chemistry
Valve Regulated Lead Acid
Typical Battery Recharge Time
4 Hour
Status Indicators
Includes 14 front panel LEDs to indicate line / battery power status, over / under voltage correction, battery charge level (4 LEDs), load percentage (4 LEDs), overload and replace battery. Also includes 1 rear panel site wiring fault indicator.
Load Capacity
1050 VA/650 W
Maximum Operating Temperature
104°F (40°C)
Total Number of Expansion Slots
1
Network Management
SNMP Manageable
Package Contents
SMART1050SLT SmartPro 120V 1.05kVA 650W Line-Interactive Sine Wave UPS, USB cable, DB9 cable, PowerAlert software, Owner's manual
Alarm
On Battery, Overload
UPS Applications
Large Network; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
Operating Elevation (ft.)
6561 ft. (2000 m) above sea level
Product Certifications
CSA (Canada); NOM (Mexico); UL 1778
Output Capacity Details
5.4A @ 120V (default), 5.9A @ 110V, 6.5A @ 100V. 125% @ 10 minutes 110% +/- 10% @ 5 seconds
Total Harmonic Distortion
0.03
Output Capacity (VA)
1050
Package Includes
SMART1050SLT SmartPro 120V 1.05kVA 650W Line-Interactive Sine Wave UPS;USB cable;DB9 cable;Owner's manual
Installation Form Factors Supported with Included Accessories
Tower
Output Capacity (Watts)
650
Product Compliance
FCC Part 15 Class B (USA)
External Battery Compatible
Not External Battery Pack Compatible
Data Line Protection
Includes Data Line Surge Protection
Output Ports Included
DB9 Serial, SNMP, USB
Power Rating - Apparent
1.05 kVA
Transfer Time - Maximum
6 msec
Input Current - Maximum
6.1 A
Number of Outlets - Surge Only
8
Number of Outlets - UPS
8
Power Rating - Real
650 W
Operating Temperature - Maximum
104 Degrees F
Manufacturer Warranty
2 yr
Run Time - Full Load
7 min
Receptacle Configuration
5-15R
Surge Suppression Rating
690 J
Includes Battery
Battery Included
Battery Recharge Time
6 hr
Audible Alarm Conditions
Overload
Operating Temperature - Minimum
32 Degrees F
Transfer Time - Minimum
4 msec
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
