VA Rating - UPS Systems
1.3 kVA
UPS Type
Line Interactive
Backup Time (Half/Full Load)
10 min/1.5 min
Outlet Type
(4) Surge; (4) UPS/Surge
NEMA Receptacle Configuration
(8) 5-15R
Automatic Volts Regulation
Yes
Standards
CSA (Canada), FCC Part 15 Class a (USA), NOM (Mexico), RoHS, UL1778
NEMA Plug Configuration
5-15P
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Special Features
Hot Swappable Batteries
Includes

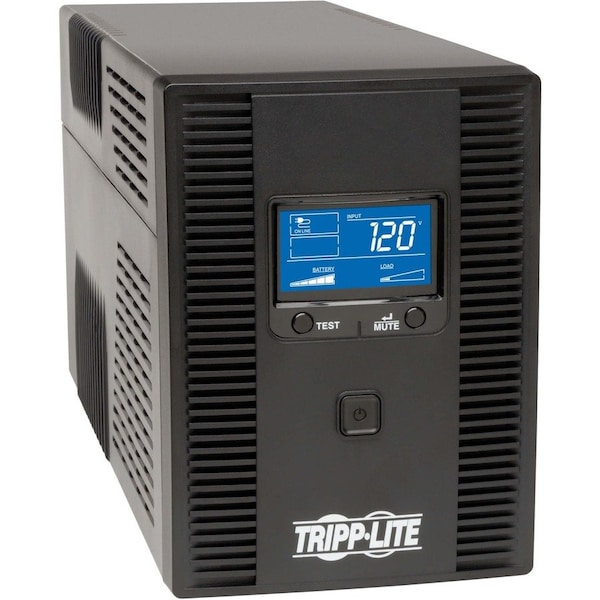

SMART1300LCDT SmartProLCD 120V 1300VA/720W Line-Interactive UPS, USB Cables
Fax/Modem Line Protection
Yes
Capacity - Batteries
1300 VA/720 W
Input Connection
NEMA 5-15P Plug
Communications Cable
USB cabling included
Input Circuit Breakers
20A
Internal UPS Replacement Battery Cartridge
RBC51 (requires 2)
High Voltage Transfer to Battery Power (Setpoint)
150
Individually Controllable Load Banks
No
Recommended Electrical Service
15A 120V
UPS AC Suppression Response Time
Instantaneous
Communications Interface
USB (HID enabled)
Nominal Input Voltage(s) Supported
120V AC
Output Volt Amp Capacity (VA)
1300
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Audible Alarm
Audible alarm indicates power-failure and low-battery conditions
Output AC Waveform (Battery Mode)
PWM sine wave
Half Load Runtime (min.)
10 minutes (360 watts)
Overvoltage Correction
Input voltages between 129 and 150 are reduced by 15%
Output Watt Capacity (Watts)
720
Low Voltage Transfer to Battery Power (Setpoint)
92
Rated input current (Maximum Load)
10.8A
Output Voltage Regulation (Battery Mode)
120V (±10%)
High Availability UPS Features
Hot swappable batteries
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert
Output kVA Capacity (kVA)
1.3
Output Voltage Regulation (Line Mode)
120V (+9% / -12%)
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet; Coax jacks (1 set)
Switches
Power switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm; Test button initiates self test
UPS AC Suppression Joule Rating
650
AC Mode Efficiency Rating (100% Load)
0.95
UPS Certifications
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch
DC System Voltage (VDC)
24
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Front Panel LCD Display
LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut status, Output load in watts, Output load percentage, Battery voltage and Estimated runtime in minutes
AC Mode BTU / Hr. (Full Load)
100
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions
Battery Mode BTU / Hr. (Full Load)
776
EMI / RFI AC Noise Suppression
Yes
Relative Humidity
5 to 95%, non-condensing
Battery Recharge Rate (Included Batteries)
Less than 6.3 hours from 10% to 90%
Primary Form Factor
Tower
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 92 to 150
Undervoltage Correction
Input voltages between 92 and 108 are boosted by 18%
Load Capacity
1300 VA/720 W
Package Contents
SMART1300LCDT UPS, USB Cabling, Manual with Warranty Information
Typical Battery Recharge Time
6.30 Hour
Product Certifications
CSA (Canada); NOM (Mexico); UL 1778
Package Includes
SMART1300LCDT SmartPro LCD 120V 1300VA/720W Line-Interactive UPS;USB cable;Owner's Manual
UPS Applications
Home/Office Desktop; Audio/Video; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
Output Capacity (VA)
1300
Audible Noise
Less than 36 dB, front side 1m
Output Capacity (Watts)
720
Product Compliance
FCC Part 15 Class A (USA)
Installation Form Factors Supported with Included Accessories
Tower
Power Rating - Apparent
1.3 kVA
Transfer Time - Maximum
6 msec
Includes Battery
Battery Included
Number of Outlets - Surge Only
8
Operating Temperature - Minimum
32 Degrees F
Power Rating - Real
720 W
Receptacle Configuration
5-15R
Manufacturer Warranty
2 yr
External Battery Compatible
Not External Battery Pack Compatible
Battery Chemistry
Valve Regulated Lead Acid
Number of Outlets - UPS
8
Input Current - Maximum
10.8 A
Run Time - Full Load
1.5 min
Battery Recharge Time
6.3 hr
Audible Alarm Conditions
Low Battery, Power Outage
Surge Suppression Rating
650 J
Data Line Protection
Includes Data Line Surge Protection
Operating Temperature - Maximum
104 Degrees F
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Transfer Time - Minimum
2 msec
Output Ports Included
USB
