VA Rating - UPS Systems
1.5 kVA
UPS Type
Line Interactive
Output Voltage
110/115/120V AC
Backup Time (Half/Full Load)
7.5 min/1.8 min
Outlet Type
(5) Surge; (5) UPS/Surge
Fax/Modem Line Protection
Yes
Automatic Volts Regulation
Yes
Transfer Time
2 to 6 msec
Special Features
Built-In Audible Alarm
NEMA Plug Configuration
5-15P
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Standards
CSA, FCC Part 15 Class B, NOM, RoHS, UL1778
NEMA Receptacle Configuration
(10) 5-15R
Input Connection
NEMA 5-15P Plug
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Low Voltage Transfer to Battery Power (Setpoint)
92
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Undervoltage Correction
Input voltages between 92 and 108 are boosted by 18%
Half Load Runtime (min.)
7.5 minutes (405 watts)
Network UPS Tools Compatibility
NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
Communications Interface
USB (HID enabled)
Output Watt Capacity (Watts)
810
AC Mode Efficiency Rating (100% Load)
0.95
Frequency Compatibility Details
Automatic frequency selection
Output AC Waveform (Battery Mode)
PWM sine wave
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Output Voltage Regulation (Battery Mode)
+/- 5%
Recommended Electrical Service
15A 120V
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 92 to 150
Output Volt Amp Capacity (VA)
1500
Communications Cable
USB cabling included
Battery Recharge Rate (Included Batteries)
Less than 8 hours from 10% to 90%
Relative Humidity
5 to 95%, non-condensing
Front Panel LCD Display
LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut status, Output load in watts, Output load percentage, Battery voltage and Estimated runtime in minutes
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert
UPS AC Suppression Joule Rating
650
Nominal Output Voltage(s) Supported
110V; 115V; 120V
DC System Voltage (VDC)
24
Switches
Power switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm; Test button initiates self test
Battery Mode BTU / Hr. (Full Load)
826
Overvoltage Correction
Input voltages between 129 and 147 are reduced by 15%
UPS AC Suppression Response Time
Instantaneous
Audible Alarm
Audible alarm indicates power-failure and low-battery conditions
Input Circuit Breakers
15A
Installation Form Factors Supported with Included Accessories
Tower
Rated input current (Maximum Load)
12A
AC Mode BTU / Hr. (Full Load)
98
Internal UPS Replacement Battery Cartridge
RBC51 (requires 2)
Primary Form Factor
Tower
Nominal Input Voltage(s) Supported
120V AC
High Availability UPS Features
Hot swappable batteries
UPS Certification Details
ENERGY STAR Version 2.0 Qualified
Hot-Swap PDU options
PDUB15 (2U / 8 5-15R outlets)
Output Voltage Regulation (Economy Line Mode)
120V (±10%)
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet; Coax jacks (1 set)
High Voltage Transfer to Battery Power (Setpoint)
150
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch
UPS Certifications
ENERGY STAR Qualified; Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
EMI / RFI AC Noise Suppression
Yes
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Output kVA Capacity (kVA)
1.5
Output Voltage Regulation (Line Mode)
120V (+9% / -12%)
Individually Controllable Load Banks
No
Package Contents

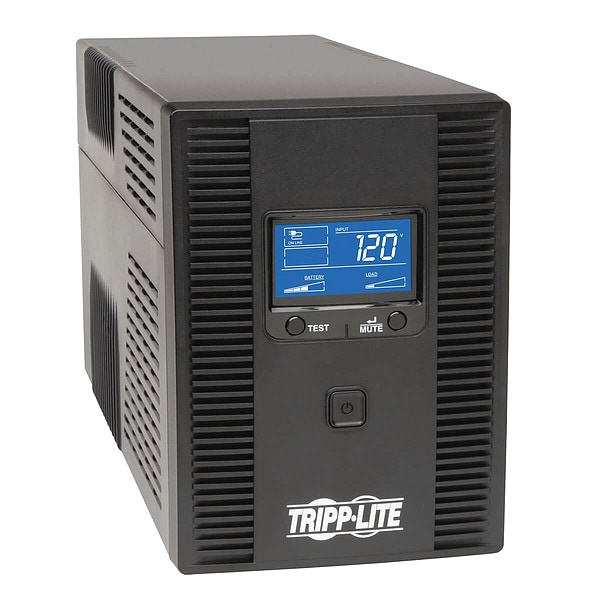

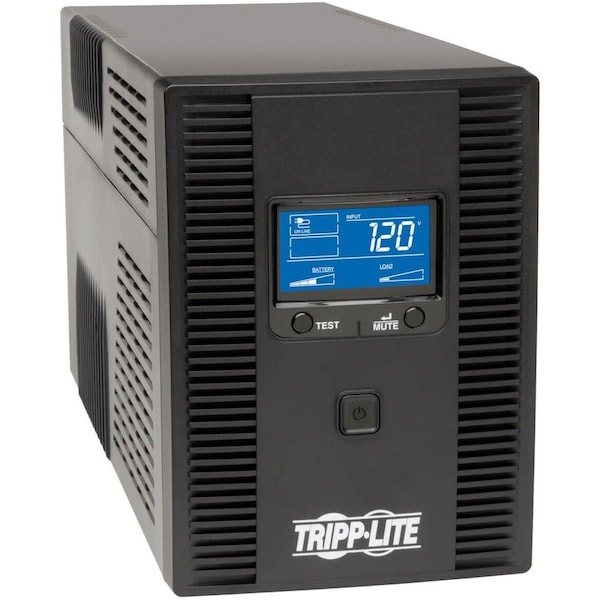

OmniSmart OMNI1500LCDT 1500VA Tower UPS, USB Cabling, Manual with Warranty Information
Load Capacity
1500 VA/810 W
Typical Battery Recharge Time
8 Hour
Product Compliance
ENERGY STAR Qualified; FCC Part 15 Class B (USA)
Output Capacity (Watts)
810
Product Certifications
CSA (Canada); NOM (Mexico); UL 1778
Output Capacity (VA)
1500
Package Includes
1500VA 810W 120V Line-Interactive UPS;USB cable;Owner's manual
UPS Applications
Home/Office Desktop; Audio/Video; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
Power Rating - Apparent
1.5 kVA
Battery Recharge Time
8 hr
Manufacturer Warranty
3 yr Limited
Data Line Protection
Includes Data Line Surge Protection
Power Rating - Real
810 W
Visible Indicator Light Conditions
Battery Low
Operating Temperature - Minimum
32 Degrees F
Transfer Time - Maximum
6 msec
Operating Temperature - Maximum
104 Degrees F
Output Ports Included
USB
Replacement Battery Part Number
RBC51
External Battery Compatible
Not External Battery Pack Compatible
Number of Outlets - Surge Only
5
Audible Alarm Conditions
Low Battery
Battery Chemistry
Valve Regulated Lead Acid
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Input Current - Maximum
12 A
Includes Battery
Battery Included
Run Time - Full Load
1.8 min
Receptacle Configuration
5-15R
Number of Outlets - UPS
5
Transfer Time - Minimum
2 msec
