- Item
- UPS System
- UPS Type
- Online/Double Conversion
- Power Rating
- 1.96kVA
- Mounting
- Tower
- Wattage
- 1.77 kW
- Input Voltage
- 100/115/120/127V AC
- Output Voltage
- 100/110/120/127V AC
- Backup Time (Half/Full Load)
- 26.2 min/10.4 min
- Outlet Type
- UPS/Surge
- Medical Grade
- No
- Number of Outlets
- 7
- Ports
- DB9 Serial, EPO, USB
- Transfer Time
- 0 msec
- Display Type
- LCD
- NEMA Receptacle Configuration
- (6) 5-15/20R; (1) L5-20R
- Fax/Modem Line Protection
- Yes
- Includes
- DB9 Cable, USB Cables
- VA Rating - UPS Systems
- 2.2 kVA
- Input Current
- 16 A
- Phase
- Single
- Automatic Volts Regulation
- Yes
- NEMA Plug Configuration
- 5-20P
- Special Features
- Hot-Swappable Batteries
- Standards
- CE (Europe), cUL, FCC (USA), REACH, RoHS
- Hz
- 50/60 Hz
- Capacity - Batteries
- 2200 VA/1800 W
- Input Connection
- NEMA 5-20P Plug
- Battery Type
- VRLA
- Housing Material
- Metal
- Expandable Battery Runtime
- Extended runtime supported via optional external battery packs
- Internal UPS Replacement Battery Cartridge
- RBC48-SUTWR
- Battery Mode BTU / Hr. (Full Load)
- 1087
- Battery Access
- Battery access door
- AC Economy Mode Efficiency Rating (100% Load)
- 0.97
- Output Voltage Regulation (Economy Line Mode)
- +/- 10%
- Output Voltage Regulation (Line Mode)
- +/- 2%
- Storage Temperature Range
- +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- Network Monitoring Port Description
- Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure communications
- Output kVA Capacity (kVA)
- 2.2
- Half Load Runtime (min.)
- 13 min. (900w)
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
- Audible Noise
- < 50.5 dB at front side 1m
- Recommended Electrical Service
- 20A 120V
- Output kW Capacity (kW)
- 1.8
- Alarm Cancel Operation
- Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
- Nominal Input Voltage Description
- 120V factory default
- Voltage Regulation Description
- Online, double-conversion power conditioning
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
- Rated input current (Maximum Load)
- 16A
- Nominal Input Voltage(s) Supported
- 100V AC; 110V AC; 120V AC; 127V AC
- UPS AC Suppression Response Time
- Instantaneous
- Communications Cable
- USB and DB9 cabling included
- Cooling Method
- Fan
- Output Volt Amp Capacity (VA)
- 2200
- Expandable Runtime
- Yes
- Switches
- 2 switches control off/on power status and alarm-cancel/self-test operation
- External Battery Pack Compatibility
- BP48V27-2US (multi-pack compatible); BP48V60RT-3U (multi-pack compatible)
- Audible Alarm
- Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
- Network Management Cards
- SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; MODBUSCARD ; RELAYIOCARD
- Full Load Runtime (min.)
- 4.5 min. (1800w)
- PowerAlert Software
- For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- Power Factor
- 0.82
- Individually Controllable Load Banks
- Yes
- Frequency Compatibility Details
ON LINE MODE: Output frequency is automatically configured to match nominal input frequency on startup; Output matches input frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal. UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. FREQUENCY REGULATION / CONVERSION MODE: Output is regulated to +/-0.05Hz of selected output frequency when input is 40 to 70Hz; UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. BATTERY MODE: Output is regulated to +/-0.05Hz of selected nominal.
- Front Panel LCD Display
- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options
- Overvoltage Correction
- 2% output voltage regulation during overvoltages to 150
- Output Voltage Regulation (Battery Mode)
- +/- 3%
- DC System Voltage (VDC)
- 48
- AC Mode BTU / Hr. (Full Load)
- 684
- Input Circuit Breakers
- 30A
- Primary Form Factor
- Tower
- Nominal Output Voltage(s) Supported
- 100V; 110V; 115V; 120V; 127V
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Recharge Rate (Included Batteries)
- Less than 3 hours from 10% to 90%
- AC Mode Efficiency Rating (100% Load)
- 0.92
- High Availability UPS Features
- Automatic inverter bypass; Hot swappable batteries
- Communications Interface
- USB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface
- Low Voltage Transfer to Battery Power (Setpoint)
- 55V (33% load), 70V (70% load), 100V (100% load)
- Operating Elevation (m)
- Up to 3000m
- EMI / RFI AC Noise Suppression
- Yes
- Output Capacity Details
ON LINE MODE: Maximum output capacity rating is reduced to 1620W (115V), 1530W (110V) and 1440W (100V); FREQUENCY REGULATION / CONVERSION MODE: Maximum output ratings are reduced in frequency regulation / conversion mode (127/120V 1260 watts, 115V 1134 watts, 110V 1071 watts, 100V 1008 watts) OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150% load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits)
- AC Economy Mode BTU / Hr. (Full Load)
- 190
- UPS AC Suppression Joule Rating
- 570
- Load Management Receptacles
- Two switchable three-outlet load banks
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
- Input Phase
- Single-Phase
- Undervoltage Correction
- 2% output voltage regulation during undervoltages to 55V (33% load), 70V (70% load), 100V (100% load)
- Crest Factor
- 0.125694444444444
- Output Watt Capacity (Watts)
- 1800
- High Voltage Transfer to Battery Power (Setpoint)
- 150
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Expandable Runtime Description
- External battery configurations require the use of Tripp Lite's External Battery Configuration Software, see manual for details
- Emergency Power OFF
- Yes
- USB
- Yes
- Hot Swappable
- Yes
- Software Included
- PowerAlert Software
- Load Capacity
- 2200 VA/1800 W

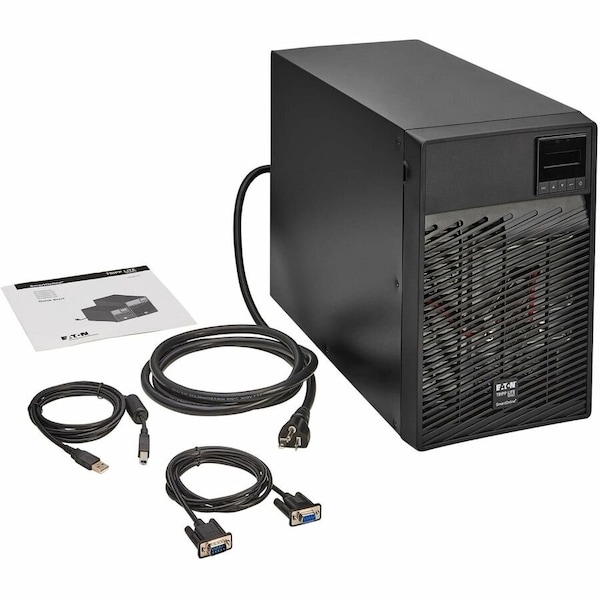

- Package Contents
- SmartOnline SU2200XLCD 2200VA Tower UPS, PowerAlert Software CD, USB and DB9 Cabling, Owner's Manual with Warranty Information, EPO (Emergency Power Off) Cabling
- Typical Battery Recharge Time
- 3 Hour
- Serial Port
- Yes
- Bypass Switch
- Automatic
- Form Factor
- Tower
- Network Management
- SNMP Manageable
- Installation Form Factors Supported with Included Accessories
- Tower
- Product Compliance
- CE (Europe); FCC (USA)
- AC Suppression Response Time
- Instantaneous
- Power Factor (Input)
- 0.99
- Online Mode Heat Dissipation (BTU/Hr) @ Full Load
- 682
- Output Capacity (VA)
- 1960
- Product Certifications
- cUL Listed
- Output Capacity (Watts)
- 1770
- UPS Applications
- Mission Critical Applications
- Package Includes
- 1960VA 1770W 120V Double-Conversion UPS;USB cable;DB9 cable;Quick Start Guide
- External Battery Pack Part Number
- BP96V
- Battery Chemistry
- Valve Regulated Lead Acid
- Receptacle Configuration
- 5-20R, L5-20R
- Output Ports Included
- DB9 Serial, USB
- Operating Temperature - Minimum
- 32 Degrees F
- External Battery Compatible
- External Battery Pack Compatible
- Number of Outlets - UPS
- 7
- Transfer Time - Maximum
- 0 msec
- Automatic Voltage Regulation
- Includes Automatic Voltage Regulation
- Power Rating - Real
- 1.77 kW
- Number of Outlets - Surge Only
- 7
- Plug Configuration
- 5-20P
- Manufacturer Warranty
- 2 yr
- Operating Temperature - Maximum
- 104 Degrees F
- Replacement Battery Part Number
- 744-A4313
- Audible Alarm Conditions
- Low Battery, Overload, Power Outage, Shutdown, UPS Fault, UPS Startup
- Run Time - Full Load
- 10.4 min
- Input Current - Maximum
- 16 A
- Power Rating - Apparent
- 1.96 kVA
- Frequency
- 50/60 Hz
- Surge Suppression Rating
- 190 J
