VA Rating - UPS Systems
1.0 kVA
UPS Type
Line Interactive
Output Voltage
100/110/120/125V AC
Backup Time (Half/Full Load)
17 min/6 min
Fax/Modem Line Protection
No
Standards
CSA (Canada), FCC Part 15 Class B (USA), IEC 62040-2, NOM (Mexico), RoHS, UL1778
Special Features
Hot Swappable Batteries
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
NEMA Receptacle Configuration
(8) 5-15R
NEMA Plug Configuration
5-15P
Automatic Volts Regulation
Yes
Transfer Time
3 to 4 msec
Includes
1000VA 1000W 120V Line-Interactive UPS, DB9 Cable, Rack Mounting Hardware, Tower Support Stands, USB Cables
Capacity - Batteries
1000 VA/900 W
Input Connection
NEMA 5-15P Plug
Battery Mode BTU / Hr. (Full Load)
542
Relative Humidity
0 to 95%, non-condensing
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Internal UPS Replacement Battery Cartridge
RBC93-2U
Output Voltage Regulation (Battery Mode)
+/-5%
Undervoltage Correction
Input voltages between 104 and 83 are boosted by 14%
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions
Network Management Cards
SNMPWEBCARD ; TLNETCARD ; WEBCARDLX
Installation Form Factors Supported with Included Accessories
4 post 19 inch rackmount
EMI / RFI AC Noise Suppression
Yes
Nominal Input Voltage(s) Supported
120V AC
UPS Certifications
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
Network UPS Tools Compatibility
NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
Half Load Runtime (min.)
18 min. (450w)
Individually Controllable Load Banks
Yes
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
DC System Voltage (VDC)
36
Audible Noise
45 dBA maximum, front side 1m
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
Battery Replacement Description
Hot-swappable, replaceable batteries
Expandable Battery Runtime
Extended runtime supported via optional external battery packs
Communications Cable
USB, DB9 and EPO cabling included
Overvoltage Correction
Input voltages between 127 and 147 are reduced by 12%
Alarm Cancel Operation
Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
Output kVA Capacity (kVA)
1
AC Mode Efficiency Rating (100% Load)
0.97
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Primary Form Factor
Rackmount
UPS AC Suppression Joule Rating
570
Communications Interface
USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Output Capacity Details
Output is reduced to 800 watts maximum when used with external battery packs
Full Load Runtime (min.)
6.3 min. (900w)
Low Voltage Transfer to Battery Power (Setpoint)
83
High Availability UPS Features
Hot swappable batteries
Battery Recharge Rate (Included Batteries)
Less than 4.5 hours from 10 to 90% (typical, full load discharge)
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Switches
3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
Output Voltage Regulation (Line Mode)
120V (+6%, -14%)
Installation Form Factors Supported with Optional Accessories
2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
Front Panel LCD Display
Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
Recommended Electrical Service
15A 120V
Rated input current (Maximum Load)
9.2A
Included Mounting Accessory Description
Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Load Management Receptacles
Two switchable two outlet 5-15R load banks
Battery Access
Front panel battery access door
AC Suppression Response Time
Instantaneous
Output Watt Capacity (Watts)
900
Output Volt Amp Capacity (VA)
1000
External Battery Pack Compatibility
BP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible); BP36V27 -2US (multi-pack compatible)
AC Mode BTU / Hr. (Full Load)
179
High Voltage Transfer to Battery Power (Setpoint)
147
Audible Alarm
Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Output AC Waveform (Battery Mode)
Pure Sine wave
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Network Management
SNMP Manageable
Software Included
PowerAlert Software
Package Contents

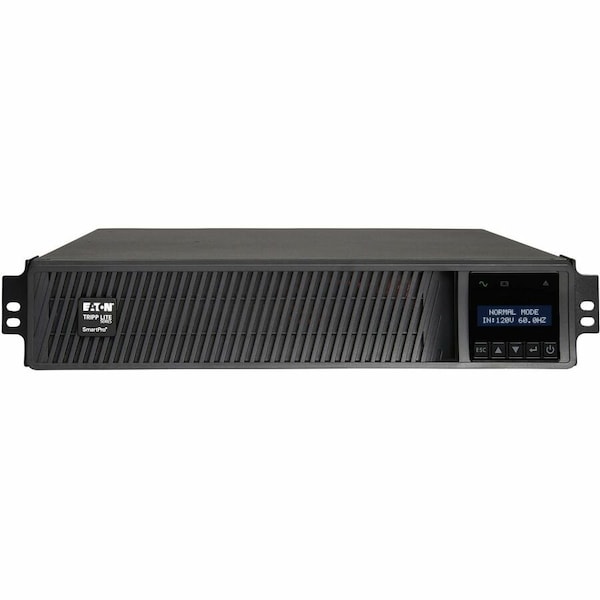

SMART1000RMXL2U UPS System, PowerAlert Software CD, Serial Cable, USB Cable, EPO Cable, 4 x Post Rackmount Installation Kit, Instruction Manual
Load Capacity
1000 VA/900 W
Typical Battery Recharge Time
4.50 Hour
Nominal Input Voltage Description
80V-151V; adjustable to 70-153V
Storage Elevation (ft.)
0-32,808
Emergency Power Off (EPO)/Remote On-Off (ROO)
Yes
Voltage Compatibility (VAC)
User-Selectable
Product Compliance
FCC Part 15 Class B (USA)
Grounding Details
Rear panel grounding lug
Operating Elevation (ft.)
0-10,000
Package Includes
1000VA 1000W 120V Line-Interactive UPS;USB cable;DB9 cable;Rack-mounting hardware;Tower support stands;Safety instructions;Advanced User Guide
Product Certifications
CSA (Canada); IEC 62040-2; NOM (Mexico); UL 1778
Output Capacity (VA)
1000
UPS Applications
Large Network; High-End Desktop/Small Network
Output Capacity (Watts)
1000
Data Line Protection
Includes Data Line Surge Protection
Operating Temperature - Minimum
32 Degrees F
Power Rating - Apparent
1 kVA
Number of Outlets - UPS
8
Battery Chemistry
Valve Regulated Lead Acid
Transfer Time - Minimum
1 msec
Input Current - Maximum
9.2 A
Surge Suppression Rating
380 J
Includes Battery
Battery Included
Manufacturer Warranty
2 yr
Audible Alarm Conditions
Low Battery, Overload, Power Outage, Shutdown, UPS Fault, UPS Startup
External Battery Pack Part Number
BP48VRM2U
Receptacle Configuration
5-15R
Number of Outlets - Surge Only
8
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Output Ports Included
Contact Closure, DB9 Serial, EPO, SNMP, USB
Transfer Time - Maximum
4 msec
External Battery Compatible
External Battery Pack Compatible
Operating Temperature - Maximum
104 Degrees F
Run Time - Full Load
6 min
Battery Recharge Time
4.5 hr
