UPS Type
Line Interactive
Output Voltage
115/120V AC
Backup Time (Half/Full Load)
13 min/4.4 min
Special Features
Extended Run, Medical Grade
NEMA Plug Configuration
5-20P
Standards
CSA (Canada), FCC Part 15 Class a (USA), RoHS, UL1778, UL60601-1
Includes
AC Power Cord (C19 to NEMA 5-20P), PowerAlert Software and Cables
Automatic Volts Regulation
Yes
Transfer Time
2 to 4 msec
Fax/Modem Line Protection
No
VA Rating - UPS Systems
2.2 kVA
Ports
DB9 Serial, EPO, USB
NEMA Receptacle Configuration
(4) 5-15/20R; (4) C13
Battery Replacement Description
Hot-swappable, user replaceable batteries
Low Voltage Transfer to Battery Power (Setpoint)
81
Communications Interface
USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
UPS AC Suppression Response Time
Instantaneous
Half Load Runtime (min.)
13 minutes
Individually Controllable Load Banks
No
External Battery Pack Compatibility
BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible)
Recommended Electrical Service
20A 120V
Battery Mode BTU / Hr. (Full Load)
315.2
Output Volt Amp Capacity (VA)
2200
DC System Voltage (VDC)
48
Rated input current (Maximum Load)
16 AMP
Output Receptacle Details
Hospital grade output receptacles
Nominal Output Voltage(s) Supported
115V; 120V
Installation Form Factors Supported with Optional Accessories
Wallmount (UPSWM - tower mounting kit)
Communications Cable
USB and DB9 serial cabling included
Installation Form Factors Supported with Included Accessories
Tower
EMI / RFI AC Noise Suppression
Yes
UPS AC Suppression Joule Rating
940
Output Voltage Regulation (Line Mode)
-18%, +8%
Undervoltage Correction
Input voltages between 96 and 106 are boosted by 10%
Relative Humidity
0 to 95%, non-condensing
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Internal UPS Replacement Battery Cartridge
RBC48V-HGTWR
High Voltage Transfer to Battery Power (Setpoint)
143
AC Mode Efficiency Rating (100% Load)
0.94
Severe Undervoltage Correction
Input voltages between 81 and 95 are boosted by 21%
Output Isolation Transformer
Hospital grade load isolation transformer
Primary Form Factor
Tower
Typical Battery Recharge Time
4.50 Hour
Software Included
PowerAlert Software
Load Capacity
2200 VA/1920 W
LED Indicators
5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Full Load Runtime (min.)
4.4 minutes
Expandable Battery Runtime
Extended runtime supported via optional external battery packs
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Input Circuit Breakers
2 x 20A
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports , download PowerAlert Local software at http://www.tripplite.com/poweralert
Nominal Input Voltage(s) Supported
120V AC
Package Contents

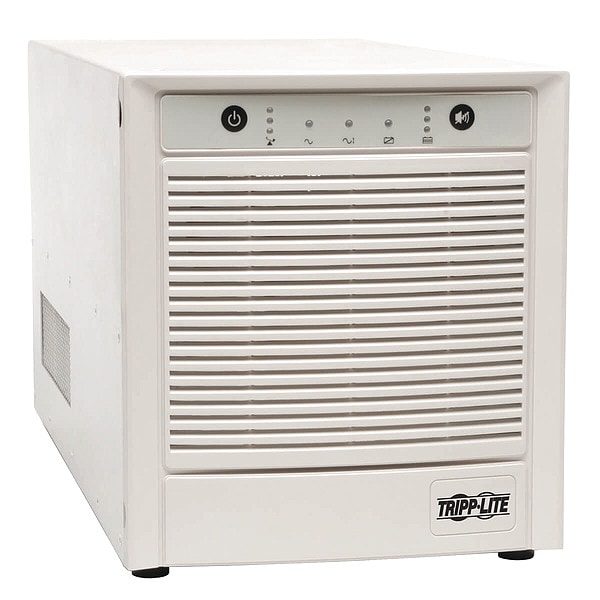

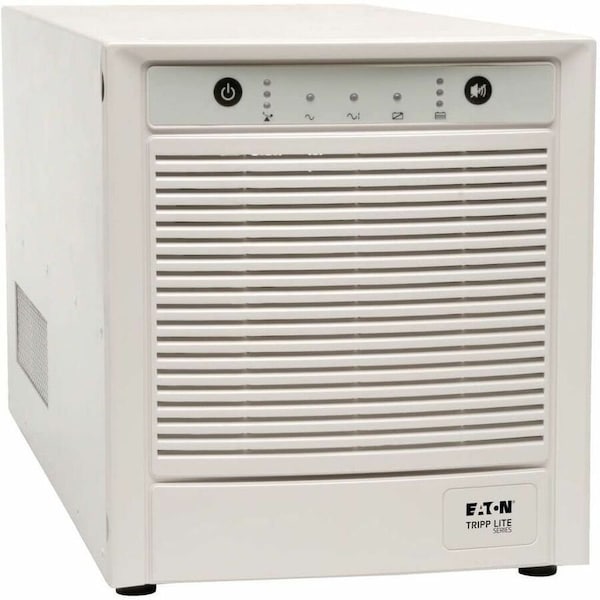

SMART 2500XLHG Medical Grade Tower UPS System, Poweralert Software CD, Warranty Information, Instruction Manual, USB Cable, DB9 Cable
Overvoltage Correction
Input voltages between 126 and 143 are reduced by 9%
Output Watt Capacity (Watts)
1920
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 81 to 143
High Availability UPS Features
Hot swappable batteries
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation
Output Voltage Regulation (Battery Mode)
115V (+/- 5%)
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Output AC Waveform (Battery Mode)
Pure Sine wave
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions
Battery Recharge Rate (Included Batteries)
4.5 hours MAX (10% to 90% capacity) Internal batteries only
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Audible Alarm
Audible alarm indicates power-failure, overload and low-battery conditions
UPS Certifications
Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category A (EMI); Tested to UL60601-1 (medical grade)
AC Mode BTU / Hr. (Full Load)
162.8
Output kVA Capacity (kVA)
2.2
Battery Access
Battery access door
Leakage Current
Equal to 100 microamps
Audible Alarm Conditions
Low Battery, Overload, Power Outage
Transfer Time - Maximum
4 msec
Battery Recharge Time
4.5 hr
Number of Outlets - UPS
8
Input Current - Maximum
16 A
Battery Chemistry
Valve Regulated Lead Acid
Operating Temperature - Maximum
104 Degrees F
Run Time - Full Load
4.4 min
Output Ports Included
DB9 Serial, EPO, USB
Includes Battery
Battery Included
Number of Outlets - Surge Only
8
Operating Temperature - Minimum
32 Degrees F
Manufacturer Warranty
2 yr
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
External Battery Compatible
External Battery Pack Compatible
Power Rating - Apparent
2.2 kVA
Transfer Time - Minimum
2 msec
Surge Suppression Rating
940 J
Receptacle Configuration
5-20R, C13
Data Line Protection
Includes Data Line Surge Protection
Power Rating - Real
1.92 kW
