  11. UPS System, 2.2kVA, On-Line/Double Conversion, Out: 200/220/230/240VAC In: 230VAC
This item is Discontinued.

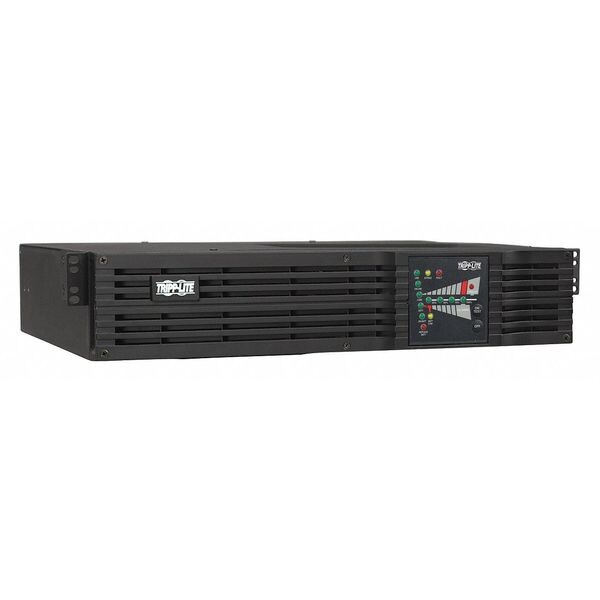

Tripp Lite UPS System, 2.2kVA, On-Line/Double Conversion, Out: 200/220/230/240VAC In: 230VAC SUINT2200RTXL2UA

UPS System, 2.2kVA, On-Line/Double Conversion, Out: 200/220/230/240VAC In: 230VAC (Discontinued)

  • Mfr # SUINT2200RTXL2UA
  • Zoro # G6152946
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SUINT2200RTXL2UA
Zoro #
G6152946
UPC #
037332126511
Country of Origin
China

Dimensions

Depth
19.0 in
Width
17.5 in
Height
3.5 in
Cord Length
No Cord

Details

Item
UPS System
UPS Type
On-Line/Double Conversion
Power Rating
2.2kVA
Mounting
Rack/Tower
Wattage
1.60kW
Input Voltage
230VAC
Output Voltage
200/220/230/240VAC
Backup Time (Half/Full Load)
14 min/5 min
Outlet Type
UPS/Surge
Medical Grade
No
Number of Outlets
6
Footnotes
Slot for SNMPWEBCARD
Transfer Time
0 msec
Input Voltage - UPS Systems
230V AC
Standards
CE
Watts - UPS Systems
1.60kW
NEMA Receptacle Configuration
C13, C19
Ports
Slot for SNMPWEBCARD, USB, RS232, and EPO
Hz
50/60
Automatic Volts Regulation
No
Display Type
LED
Fax/Modem Line Protection
No
Special Features
Cold Start Operation Supported, Automatic Inverter Bypass, Hot Swappable Batteries, High Efficiency Economy Mode Operation, Individually Controllable Load Banks, Schedulable Daily Hours of Economy Mode Operation
Input Current
9.7A
Output Voltage - UPS Systems
200V AC, 220V AC, 230V AC, 240V AC
VA Rating - UPS Systems
2.20kVA
Phase
1
Watts
1.6kW
Mounting - UPS Systems
Rack/Tower
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Includes
PowerAlert Software with USB and serial Cables, 4-Post Rackmount Kit, C19 to C20 Cable, (2) C13 to C14 Cables
NEMA Plug Configuration
5-15p
Outlet Type - UPS Systems
UPS/Surge
Input Connection
NEMA 5-15P Plug

Description

UPS System, On-Line/Double Conversion, Power Rating 2.20kVA, Wattage 1.60kW, Input Voltage 230V AC, Output Voltage 200V AC, 220V AC, 230V AC, 240V AC, Backup Time (Half/Full Load) 14 min/5 min, Mounting Rack/Tower, Outlet Type UPS/Surge, Number of Outlets 6, Medical Grade No, NEMA Receptacle Configuration C13, C19, NEMA Plug Configuration 5-15P, Automatic Volts Regulation No, Fax/Modem Line Protection No, Transfer Time 0 msec, Width 17.5 in, Depth 19.0 in, Height 3.5 in, Cord Length No Cord
