UPS Type
Online/Double Conversion
Input Voltage
100/115/120/127V AC
Output Voltage
100/110/115/120/127V AC
Backup Time (Half/Full Load)
20.2 min/7.7 min
Fax/Modem Line Protection
Yes
Special Features
Hot-Swappable Batteries
Ports
DB9 Serial, EPO, USB
Includes
DB9 RS232 Cable, Rack Mounting Hardware, Tower Support Stands, USB Cables
Automatic Volts Regulation
Yes
NEMA Receptacle Configuration
(6) 5-15/20R; (1) L5-20R
VA Rating - UPS Systems
2.2 kVA
NEMA Plug Configuration
5-20P
Battery Type
Sealed Lead Acid (SLA)
Capacity - Batteries
2200 VA/1800 W
Input Connection
NEMA 5-20P Plug
Low Voltage Transfer to Battery Power (Setpoint)
100V at full load (90V full load at 100V nominal setting); 70V at 70% load; 55V at 33% load
Switches
2 switches control off/on power status and alarm-cancel operation; 2 additional scroll-down and scroll-up / select options enable LCD status viewing and configuration options
Voltage Regulation Description
Online, double-conversion power conditioning maintains 2% output voltage regulation during brownouts and overvoltages
EMI / RFI AC Noise Suppression
Yes
Crest Factor
0.125694444444444
Overvoltage Correction
Corrects overvoltages to 150V (0-100% load)
Primary Form Factor
Rackmount
Output kVA Capacity (kVA)
2.2
Battery Recharge Rate (Included Batteries)
Less than 3 hours recharge to 90% (typical, full load discharge)
Battery Access
Front panel battery access
Nominal Input Voltage Description
120V factory default
Nominal Input Voltage(s) Supported
100V AC; 110V AC; 115V AC; 120V AC; 127V AC
Internal UPS Replacement Battery Cartridge
RBC94-2U
Network Management Cards
SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; MODBUSCARD ; RELAYIOCARD
Frequency Compatibility Details
ON LINE MODE: Output frequency is automatically configured to match nominal input frequency on startup; Output matches input frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal. UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. FREQUENCY REGULATION / CONVERSION MODE: Output is regulated to +/-0.05Hz of selected output frequency input is 40 to 70Hz; UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. BATTERY MODE: Output is regulated to +/-0.05Hz.
UPS Certifications
ENERGY STAR Qualified; Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to UL1778 (USA)
UPS AC Suppression Response Time
Instantaneous
Full Load Runtime (min.)
4 min. (1800w)
Output Voltage Regulation (Economy Line Mode)
+/- 10%
Output Voltage Regulation (Line Mode)
+/- 2%
Undervoltage Correction
Corrects undervoltages to 100V at full load (90V at 100V nominal)
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
LED Indicators
7 front panel LEDs indicate line power availability, AC to DC conversion, battery mode operation, inverter mode, eco mode operation, bypass mode operation and AC output status
Recommended Electrical Service
20A 120V
Alarm Cancel Operation
Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
Expandable Battery Runtime
Extended runtime supported via optional external battery packs
Installation Form Factors Supported with Included Accessories
4 post 19 inch rackmount
High Availability UPS Features
Automatic inverter bypass; Battery Independent Restart; Hot swappable batteries
Load Management Receptacles
Two switchable three-outlet 5-15/20R load banks
Individually Controllable Load Banks
Yes
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure communications
Severe Undervoltage Correction
Corrects brownouts to 70V (70% load) & 55V (33% load)
Output kW Capacity (kW)
1.8
Output Capacity Details
ON LINE MODE: Maximum output capacity is reduced to 1620 watts at 115V nominal and 1440 watts at 100V nominal; FREQUENCY REGULATION / CONVERSION MODE: Maximum output ratings are reduced in frequency regulation / conversion mode (127/120V 1260 watts / 115V 1134 watts / 110V 1071 watts / 100V 1008 watts) OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150% load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits)
Output Volt Amp Capacity (VA)
2200
AC Economy Mode BTU / Hr. (Full Load)
392
Battery Replacement Description
Hot-swappable, user replaceable batteries
AC Economy Mode Efficiency Rating (100% Load)
0.94
Audible Noise
57 dBA at 1m front side
DC System Voltage (VDC)
48
Half Load Runtime (min.)
12 min. (900w)
Communications Cable
USB and DB9 cabling included
Installation Form Factors Supported with Optional Accessories
2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
Audible Alarm
Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Included Mounting Accessory Description
Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Communications Interface
USB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
External Battery Pack Compatibility
BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Output AC Waveform (Battery Mode)
Pure Sine wave
Nominal Output Voltage(s) Supported
100V; 110V; 115V; 120V; 127V
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Expandable Runtime Description
Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software, see manual for details
Battery Mode BTU / Hr. (Full Load)
1085
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Operating Elevation (m)
Up to 3000m
High Voltage Transfer to Battery Power (Setpoint)
150
Rated input current (Maximum Load)
16A
Output Voltage Regulation (Battery Mode)
+/- 3%
Front Panel LCD Display
Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options
AC Mode BTU / Hr. (Full Load)
684
Input Circuit Breakers
30A
Relative Humidity
0 to 95%, non-condensing
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
Output Watt Capacity (Watts)
1800
UPS AC Suppression Joule Rating
570
Load Capacity
2200 VA/1800 W
Battery Chemistry
Valve Regulated Lead Acid
Bypass Switch
Internal, Automatic
Package Contents

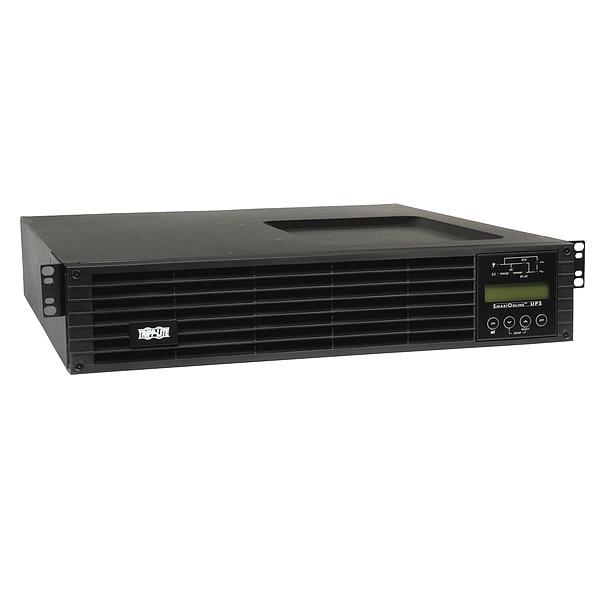

SmartOnline SU2200RTXLCD2U 2200VA Tower/Rack Mountable UPS, PowerAlert UPS Monitoring Software CD, USB Cable, RS-232 Cable, EPO (RJ11) Cable, 4-Post Rail Kit, Owner's Manual, 2 x Bolt-on Mounting Ears
Software Included
PowerAlert UPS Monitoring Software
Network Management
SNMP Manageable
Product Certifications
UL Listed; cUL Listed
UPS Applications
Mission Critical Applications
AC Mode Efficiency Rating (100% Load)
91.4
Output Capacity (Watts)
1800
Output Capacity (VA)
2000
Power Factor (Input)
0.99
Product Compliance
CE (Europe); FCC (USA)
Online Mode Heat Dissipation (BTU/Hr) @ Full Load
578
Package Includes

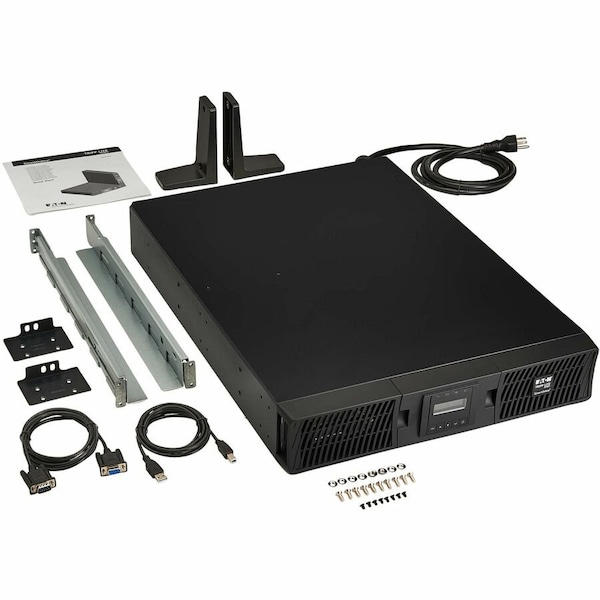

2000VA 1800W 120V Double-Conversion UPS;USB cable;DB9 RS232 cable;Rack-mounting hardware;Tower support stands;Safety instructions;Quick start guide
Output Ports Included
RS-232, USB
Surge Suppression Rating
190 J
Power Rating - Apparent
2 kVA
Number of Outlets - UPS
7
Audible Alarm Conditions
Low Battery, Overload, Power Outage, Shutdown, UPS Fault, UPS Startup
Includes Battery
Battery Included
External Battery Compatible
External Battery Pack Compatible
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Replacement Battery Part Number
744-A3121
Input Current - Maximum
16 A
Manufacturer Warranty
2 yr
Battery Recharge Time
3 hr
Operating Temperature - Maximum
104 Degrees F
Run Time - Full Load
7.7 min
External Battery Pack Part Number
BP72RT
Number of Outlets - Surge Only
7
Transfer Time - Maximum
0 msec
Operating Temperature - Minimum
32 Degrees F
Receptacle Configuration
5-20R, L5-20R
Power Rating - Real
1.8 kW
