  11. UPS System, 300VA, Line Interactive, Out: 115/120VAC In: 120VAC
This item is Discontinued.

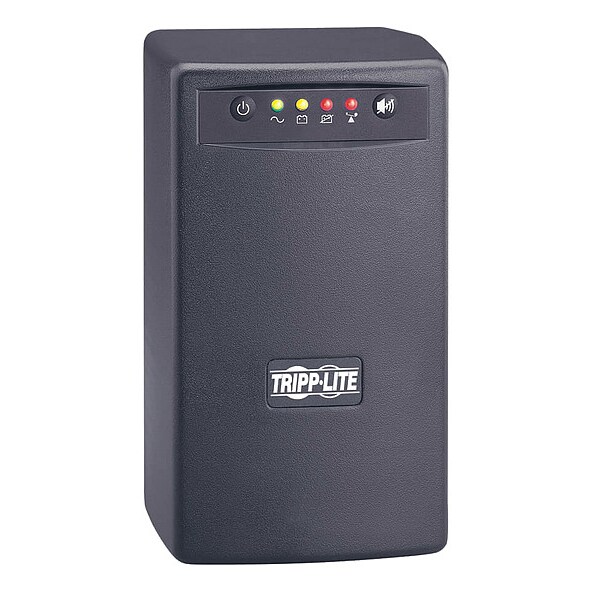

Tripp Lite UPS System, 300VA, Line Interactive, Out: 115/120VAC In: 120VAC OMNISMART300PNP

UPS System, 300VA, Line Interactive, Out: 115/120VAC In: 120VAC (Discontinued)

  • Mfr # OMNISMART300PNP
  • Zoro # G9414851
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OMNISMART300PNP
Zoro #
G9414851
UPC #
037332033130
Country of Origin
China

Dimensions

Depth
7 in
Width
5 in
Cord Length
6 ft
Height
9 in

Details

Item
UPS System
UPS Type
Line Interactive
Power Rating
300VA
Mounting
Tower
Wattage
180 W
Input Voltage
120VAC
Output Voltage
115/120VAC
Backup Time (Half/Full Load)
29.8 min/10.8 min
Outlet Type
UPS/Surge
Medical Grade
No
Number of Outlets
3
Phase
1
VA Rating - UPS Systems
300.0 VA
Fax/Modem Line Protection
Yes
Outlet Type - UPS Systems
UPS/Surge
Transfer Time
2 to 4 msec
Ports
USB
Includes
USB Cable
NEMA Receptacle Configuration
5-15R
Display Type
LED
Automatic Volts Regulation
No
Input Voltage - UPS Systems
120V AC
Hz
60 Hz
Output Voltage - UPS Systems
115V AC, 120V AC
Input Current
2.1 A
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Special Features
Hot Swappable Batteries
Mounting - UPS Systems
Tower
Watts - UPS Systems
180.0 W
Standards
UL
Watts
180W
NEMA Plug Configuration
5-15p
Green Certification or Other Recognition
UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications
Battery Type
Sealed Lead Acid (SLA)
Capacity - Batteries
300 VA/180 W
Operating Temp. Range
104°F (40°C)
Backup/Run Time (Full Load)
14 Minute/32 Minute
Input Connection
NEMA 5-15P Plug

Description

UPS System, Line Interactive, Power Rating 300 VA, Wattage 180 W, Input Voltage 120V AC, Output Voltage 115V AC, 120V AC, Backup Time (Half/Full Load) 29.8 min/10.8 min, Mounting Tower, Outlet Type UPS/Surge, Number of Outlets 3, Medical Grade No, NEMA Receptacle Configuration 5-15R, NEMA Plug Configuration 5-15P, Automatic Volts Regulation No, Fax/Modem Line Protection Yes, Transfer Time 2 to 4 msec, Width 5 in, Depth 7 in, Height 9 in, Cord Length 6 ft, Display Type LED, 60 Hz Hz
