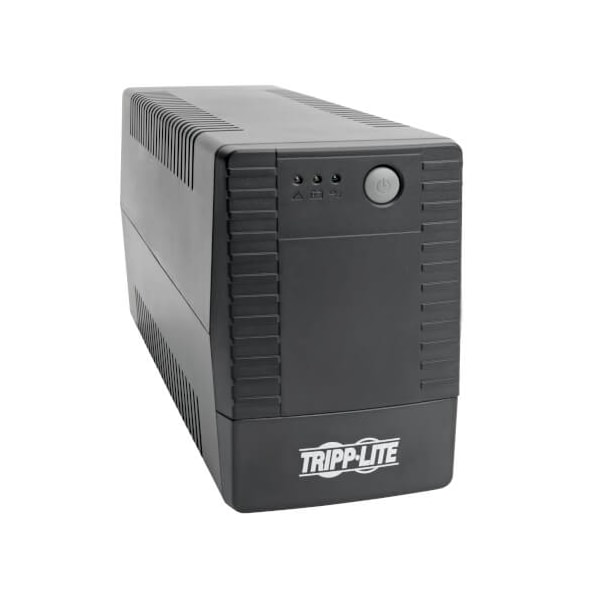

UPS System, 450VA, Line Interactive, Out: 110/115/120V In: 120V AC

UPS System, 450VA, Line Interactive, Out: 110/115/120V In: 120V AC

Mfr # VS450T
Zoro # G6583982

$99.99

Free Shipping & Returns

Key Features

UPS Type

Line Interactive

Power Rating

450VA

Mounting

Tower

Wattage

240 W

Input Voltage

120V AC

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

VS450T

Zoro #

G6583982

UPC #

37332212887

Country of Origin

China

Dimensions

Width

11.8 in

UPS Power Module Dimensions (hwd, in.)

5.6 x 4 x 11.8

Primary UPS Height (mm)

142

UPS Input Cord Length (ft.)

Primary UPS Depth (mm)

300

Details

Item

UPS System

UPS Type

Line Interactive

Power Rating

450VA

Mounting

Tower

Wattage

240 W

Input Voltage

120V AC

Output Voltage

110/115/120V

Backup Time (Half/Full Load)

5 min/0.5 min

Outlet Type

(3) Surge; (3) UPS/Surge

Number of Outlets

NEMA Receptacle Configuration

(4) 5-15R

Transfer Time

6 milliseconds

NEMA Plug Configuration

5-15P

60 Hz

Housing Material

ABS

Operating Temperature Range

+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

UPS Certifications

Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)

Relative Humidity

0 to 90%, non-condensing

Battery Recharge Rate (Included Batteries)

8 hours (10% to 90%)

Audible Alarm

Audible alarm indicates low-battery, fault, overload and replace-battery status

DC System Voltage (VDC)

Low Voltage Transfer to Battery Power (Setpoint)

Output Volt Amp Capacity (VA)

450

Output Voltage Regulation (Line Mode)

120V (+9%, -12%)

High Voltage Transfer to Battery Power (Setpoint)

145

UPS Certification Details

UL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION;

Individually Controllable Load Banks

AC Mode Efficiency Rating (100% Load)

0.95

Output AC Waveform (Battery Mode)

PWM sine wave

Expandable Runtime

Input Phase

Single-Phase

Output Voltage Regulation (Battery Mode)

120V (+/- 10%)

Primary Form Factor

Tower

UPS AC Suppression Joule Rating

316

AC Mode BTU / Hr. (Full Load)

Output Watt Capacity (Watts)

240

Half Load Runtime (min.)

5 min. (120w)

Switches

Controls off/on power status

EMI / RFI AC Noise Suppression

Yes

Nominal Input Voltage(s) Supported

120V AC

Undervoltage Correction

Input voltages between 89 and 108 are boosted by 18%

LED Indicators

3 LEDs indicate online mode (green), battery mode (yellow) and fault mode (red)

Rated input current (Maximum Load)

Overvoltage Correction

Input voltages between 132 and 145 are reduced by 15%

UPS AC Suppression Response Time

Instantaneous

Installation Form Factors Supported with Included Accessories

Tower

Storage Temperature Range

+5 to +113 degrees Fahrenheit / -15 to +45 degrees Celsius

Voltage Regulation Description

Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145

Recommended Electrical Service

15A 120V

Communications Interface

None

Nominal Output Voltage(s) Supported

110V; 115V; 120V
