VA Rating - UPS Systems
500.0 VA
UPS Type
Line Interactive
Output Voltage
110/115/120V AC
Backup Time (Half/Full Load)
14.6 min/4 min
Outlet Type
(3) Surge; (3) UPS/Surge
Includes
UPS System, USB and RJ11 Phone Cable
Automatic Volts Regulation
Yes
NEMA Plug Configuration
5-15P
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Transfer Time
2 to 4 msec
Standards
CSA, FCC Part 15 Class B, NOM, RoHS, UL1778
Fax/Modem Line Protection
Yes
NEMA Receptacle Configuration
(6) 5-15R
Special Features
Hot Swappable Batteries
Capacity - Batteries
500 VA/300 W
Battery Type
Sealed Lead Acid (SLA)
Operating Temp. Range
104°F (40°C)
Input Connection
NEMA 5-15P Plug
Severe Undervoltage Correction
Input voltages between 75 and 92 are boosted by 30%
Internal UPS Replacement Battery Cartridge
RBC51
Output Volt Amp Capacity (VA)
500
DC System Voltage (VDC)
12
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Output Voltage Regulation (Line Mode)
-18%, +8%
Relative Humidity
0 to 95%, non-condensing
Overvoltage Correction
Input voltages between 128 and 147 are reduced by 12%
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147
High Voltage Transfer to Battery Power (Setpoint)
147
Communications Interface
USB (HID enabled)
AC Mode Efficiency Rating (100% Load)
0.95
Battery Access
Battery access door
UPS AC Suppression Joule Rating
480
EMI / RFI AC Noise Suppression
Yes
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert
Output AC Waveform (Battery Mode)
PWM sine wave
High Availability UPS Features
Hot swappable batteries
Individually Controllable Load Banks
No
AC Suppression Response Time
Instantaneous
Hot-Swap PDU options
PDUB15 (2U / 8 5-15R outlets)
Undervoltage Correction
Input voltages between 93 and 107 are boosted by 14%
Full Load Runtime (min.)
4 min. (300w)
Output Voltage Regulation (Battery Mode)
+/- 5%
Network UPS Tools Compatibility
NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
LED Indicators
4 LEDs indicate line power, battery power, overload and battery low/replace status
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
AC Mode BTU / Hr. (Full Load)
53
Audible Alarm
Audible alarm indicates power-failure and low-battery conditions
Low Voltage Transfer to Battery Power (Setpoint)
75
Rated input current (Maximum Load)
12A
AC Suppression Joule Rating
480
Output Watt Capacity (Watts)
300
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Battery Replacement Description
Hot-swappable, user replaceable batteries
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Dataline Suppression
1 line TEL / DSL or 10Base T Ethernet protection
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Nominal Input Voltage(s) Supported
120V AC
Half Load Runtime (min.)
14.6 min. (150w)
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Installation Form Factors Supported with Included Accessories
Tower
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications Cable
USB cable included
Primary Form Factor
Tower
Battery Recharge Rate (Included Batteries)
Less than 3.6 hours from 10% to 90%
Installation Form Factors Supported with Optional Accessories
Wallmount (UPSWM - tower mounting kit)
UPS AC Suppression Response Time
Instantaneous
Recommended Electrical Service
15A 120V
UPS Certifications
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)
Dataline Protection
RJ-11
Battery Chemistry
Valve Regulated Lead Acid
Maximum Operating Temperature
104°F (40°C)
Package Contents
OmniSmart 500 UPS, OMNI SMART 500 UPS System, PowerAlert software and cabling, Instruction manual with warranty information
Load Capacity
500 VA/300 W
Additional Information

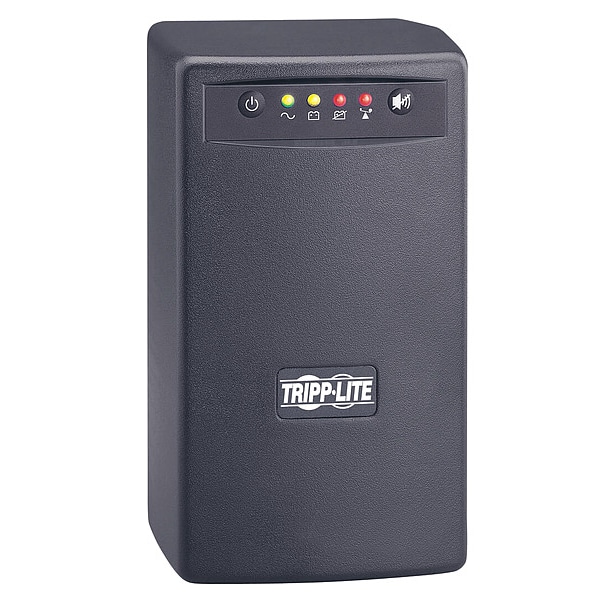

OMNISMART500 line interactive UPS system offers voltage regulation and battery support, plus complete AC and dialup/DSL line surge suppression, Supports entry level PC systems for up to 30 minutes during power failures to enable a safe system shutdown, Supports a maximum load of 500VA/300 watts for 5 minutes and a half load of 250VA/150 watts for 17 minutes, Automatic Voltage Regulation (AVR) circuits correct brownouts as low as 75 volts and overvoltages as high as 147 back to normal 120 volt levels without using battery power, Attractive gray tower configuration, Includes 3 battery supported outlets, plus 3 additional surge suppression-only outlets, 6 foot AC line cord (all NEMA 5-15), Built-in USB port supports PowerAlert UPS Power Management Software (available via free download at tripplite.com) and cabling provides monitoring of in-depth site power conditions, full UPS status and fault warnings, output load level and load bank power control, Supports Tripp Lite's WatchDog Service Monitoring/Rebooting Software (part# WATCHDOGSW), Built-in dataline suppression jacks protect a single dialup phone / DSL line, Built-in audible alarm and 4 front panel LEDs indicate UPS system and line power status, 500VA / 300 watt power handling ability supports a variety of computer, internetworking, telecom and consumer electronics equipment, Supports battery replacement via built-in access panel, Compatible with 120V / 60Hz applications for USA, Canada, Mexico and more, 2 year manufacturer's warranty, $200,000 connected equipment insurance (USA & Canada only)
Status Indicators
4 diagnostic LEDs indicate AC Present, On Battery, voltage correction & Battery Low/Replace
Typical Battery Recharge Time
4 Hour
Output Capacity (Watts)
300
Product Compliance
FCC Part 15 Class B (USA)
UPS Applications
Home/Office Desktop; Retail/Point of Sale; Hospitality
Package Includes
OMNI SMART 500 UPS System;USB and RJ11 Phone Cable;Instruction manual with warranty information
Product Certifications
CSA (Canada); NOM (Mexico); UL 1778
Run Time - Full Load
4 min
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Output Ports Included
USB
Power Rating - Real
300 W
Transfer Time - Maximum
4 msec
Power Rating - Apparent
500 VA
Audible Alarm Conditions
Low Battery
Number of Outlets - Surge Only
3
Number of Outlets - UPS
3
Data Line Protection
Includes Data Line Surge Protection
Input Current - Maximum
12 A
Receptacle Configuration
5-15R
Manufacturer Warranty
2 yr Limited
Replacement Battery Part Number
RBC51
Battery Recharge Time
3.6 hr
Operating Temperature - Minimum
32 Degrees F
Transfer Time - Minimum
2 msec
External Battery Compatible
Not External Battery Pack Compatible
Operating Temperature - Maximum
104 Degrees F
Includes Battery
Battery Included
Visible Indicator Light Conditions
Battery Low, Overload, Power Status, Replace Battery
