- Item

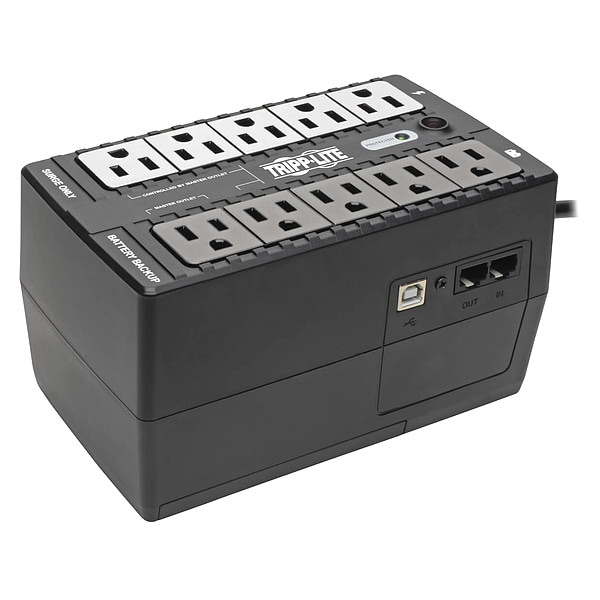

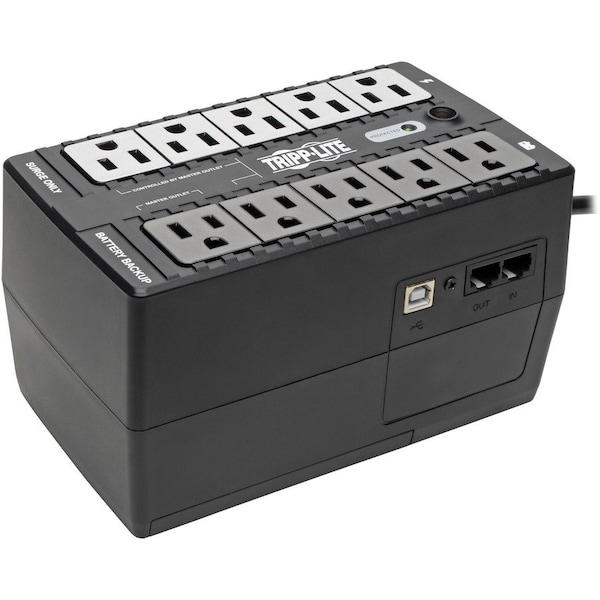

- UPS System
- VA Rating - UPS Systems
- 550.0 VA
- UPS Type
- Standby
- Power Rating
- 550VA
- Mounting
- Desktop/Tower
- Wattage
- 300 W
- Input Voltage
- 120V AC
- Output Voltage
- 110/115/120V AC
- Backup Time (Half/Full Load)
- 5 min/1.2 min
- Outlet Type
- (4) Surge; (4) UPS/Surge
- Medical Grade
- No
- Number of Outlets
- 10
- Footnotes
- 4,6
- Display Type
- No Display
- Ports
- USB (HID enabled)
- Input Current
- 10 A
- Includes
- USB Cables
- Green Environmental Attribute
- Product Contributes To Reducing Energy Consumption
- Standards
- CSA, FCC Part 15 Class B, NOM, RoHS, UL1778
- Transfer Time
- 3 msec from Battery to AC, 4 msec from AC to Battery
- Phase
- Single
- NEMA Receptacle Configuration
- (8) 5-15R
- Fax/Modem Line Protection
- Yes
- NEMA Plug Configuration
- 5-15P
- Automatic Volts Regulation
- No
- Hz
- 60 Hz
- Special Features
- (3) Built-In ECO Outlets w/Auto Off, Poweralert Software
- Voltage
- 120
- Housing Color
- Black
- Operating Temp. Range
- 122°F (50°C)
- Capacity - Batteries
- 550 VA/300 W
- Input Connection
- 6 ft Cord with NEMA 5-15P Plug
- Housing Material
- ABS
- Battery Type
- VRLA
- UPS AC Suppression Response Time
- Instantaneous
- UPS AC Suppression Joule Rating
- 420
- Storage Temperature Range
- +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Network UPS Tools Compatibility
- NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
- Half Load Runtime (min.)
- 10 min. (150w)
- Nominal Input Voltage(s) Supported
- 120V AC
- Audible Alarm
- Audible alarm indicates power-failure and overload status
- Communications Interface
- USB (HID enabled)
- High Voltage Transfer to Battery Power (Setpoint)
- 139
- Output Watt Capacity (Watts)
- 300
- Recommended Electrical Service
- 15A 120V
- EMI / RFI AC Noise Suppression
- Yes
- Switches
- Combination switch controls on/off power status and self-test operation; second recessed push-button switch enables ECO outlet switching
- Relative Humidity
- 0 to 95%, non-condensing
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI); ENERGY STAR Qualified
- LED Indicators
- 3 LEDs indicate power status, overload/check battery and ECO-mode status
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Communications Cable
- RJ to USB interface cable included
- AC Mode Efficiency Rating (100% Load)
- 0.99
- PowerAlert Software
- For local monitoring via the UPSâ„¢s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- DC System Voltage (VDC)
- 12
- Installation Form Factors Supported with Included Accessories
- Tower; Ultra-compact desktop; Wallmount
- Expandable Runtime
- No
- Primary Form Factor
- Desktop
- Hot-Swap PDU options
- PDUB15 (2U / 8 5-15R outlets)
- Output Volt Amp Capacity (VA)
- 550
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Individually Controllable Load Banks
- No
- Low Voltage Transfer to Battery Power (Setpoint)
- 99
- AC Mode BTU / Hr. (Full Load)
- 14
- Rated input current (Maximum Load)
- 10A
- Input Phase
- Single-Phase
- Internal UPS Replacement Battery Cartridge
IMPORTANT BATTERY REPLACEMENT INFORMATION > If your ECO550UPS has no battery access door, please contact a local electronics repair technician to source and install a matching replacement battery; If your ECO550UPS does have a battery replacement door and the original battery inside has a rating of 12V 3.6AH, please contact Tripp Lite for assistance
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out)
- Output AC Waveform (Battery Mode)
- PWM sine wave
- USB
- Yes
- Software Included
- PowerAlert software available via free download
- Thermal Dissipation
- 1.17 W
- Load Capacity
- 550 VA/300 W
- Product Series
- ECO
- Assembly Required
- No
- Dataline Protection
- RJ-11
- Additional Information
Keyhole mounting slots enable wall-mount installation, Compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications, Switches to battery power as line voltage decreases to 99 volts or less. Resets back to line power mode as line voltage increases to 104V or higher, Switches to battery power as line voltage increases to 139V or higher. Resets back to line power mode when line voltage decerases to 135V or lower, Basic desktop PCs for home/home-office use, network terminals, audio/video and home entertainment systems and other sensitive electronic devices, 550VA / 300 watt UPS provides battery-derived AC output during brownouts and power failures to support entry-level desktop computer with 15 inch LCD monitor up to 17 minutes
- Protection Type
- Power Failure, EMI / RFI, Brownout
- Status Indicators
- 2 LED Indicator: Line power, Battery power statusMain Power Switch Controls : ON, OFF, SELF-TEST, ALARM CANCEL, Second switch enables "ECO" outlet switching
- Form Factor
- Wall Mountable, Desktop
- Surge Energy Rating
- 420 J
- Sound Emission
- 40 dB
- Battery Life
- 6 Year
- Package Contents
- 550VA Standby UPS, ECO550UPS UPS System, USB Cable, Instruction manual with warranty information
- Waveform Type
- Sine Wave
- Maximum Operating Temperature
- 122°F (50°C)
- Typical Battery Recharge Time
- 15 Hour
- Alarm
- On Battery, Low Battery, Overload
- Package Includes
- ECO550UPS 550VA 300W 120V Standby ECO UPS with 10 Outlets;USB cable;Owner's manual
- Output Capacity (VA)
- 550
- Battery Recharge Rate (Included Batteries)
- 6.5 hours (10% to 90%)
- Frequency Compatibility Details
- Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal.
- Voltage Regulation Description
- Input voltage range of 90 to 145
- High Availability UPS Features
- Surge/noise protection
- Output Capacity (Watts)
- 300
- Output Capacity Details
- 4.6A @ 120V. (LINE MODE) 110%+/- 10% @ 5 minutes; (BATTERY MODE) 110% +/- 10% @ 5 seconds
- Product Compliance
- ENERGY STAR Qualified; FCC Part 15 Class B (USA)
- UPS Applications
- Computer/Peripherals; Retail/Point of Sale; Hospitality
- Battery Access
- Battery access door
- Product Certifications
- RETIE (Colombia); CSA (Canada); NOM (Mexico); UL 1778
- Load Management Receptacles
The ECO Energy-Saving option will automatically POWER OFF three designated ECO outlets when the device connected to the MASTER load-sensing outlet is turned off (after approximately 3 minutes); ECO outlets will immediately POWER ON when the device connected to the MASTER load-sensing outlet begins consuming 21 watts or more (see manual)
- Output Voltage Regulation (Line Mode)
- 120V (+6%/-12%)
- Operating Elevation (ft.)
- 6561 ft. (2000 m) above sea level
- Input Circuit Breakers
- 10A
- Battery Replacement Description
- Replaceable internal batteries (see manual)
- Input Current - Maximum
- 10 A
- Manufacturer Warranty
- 3 yr Limited
- Plug Configuration
- 5-15P
- Number of Outlets - UPS
- 5
- Visible Indicator Light Conditions
- Fault
- External Battery Compatible
- Not External Battery Pack Compatible
- Power Rating - Real
- 300 W
- Battery Chemistry
- Valve Regulated Lead Acid
- Data Line Protection
- Includes Data Line Surge Protection
- Transfer Time - Minimum
- 6 msec
- Number of Outlets - Surge Only
- 5
- Receptacle Configuration
- 5-15R
- Run Time - Full Load
- 1.2 min
- Includes Battery
- Battery Included
- Surge Suppression Rating
- 316 J
- Audible Alarm Conditions
- Low Battery, Overload, Replace Battery
- Operating Temperature - Maximum
- 104 Degrees F
- Output Ports Included
- USB
- Transfer Time - Maximum
- 10 msec
- Power Rating - Apparent
- 550 VA
- Frequency
- 50/60 Hz
- Automatic Voltage Regulation
- No Automatic Voltage Regulation
- Operating Temperature - Minimum
- 32 Degrees F
- Battery Recharge Time
- 6.5 hr
