UPS Type
Online/Double Conversion
Input Voltage
200/208/220/230/240V AC
Output Voltage
200/208/220/230/240V AC
Backup Time (Half/Full Load)
8.5 min/2 min
Ports
DB9 Serial, EPO, USB
NEMA Receptacle Configuration
No Configuration
Standards
CE (Europe), CSA (Canada), FCC Part 15 Class a (USA), RoHS, UL1778
Output Voltage - UPS Systems
200V AC, 208V AC, 220V AC, 230V AC, 240V AC
Watts - UPS Systems
5.4 kW
Input Voltage - UPS Systems
200V AC, 208V AC, 220V AC, 230V AC, 240V AC
Mounting - UPS Systems
Rack
Fax/Modem Line Protection
No
Special Features
Hot-Swappable Batteries
Automatic Volts Regulation
Yes
Includes
(4) Post Rackmount Hardware, 6 ft DB9 Cable, 6 ft USB Cables, SUPDMB6KIEC Detachable PDU with Maintenance Bypass Switch
Outlet Type - UPS Systems
Hardwired
VA Rating - UPS Systems
6.0 kVA
Input Connection
Hardwired
Battery Type
Valve Regulated Lead Acid (VRLA)
Nominal Voltage Details
Voltage selection via front panel LCD interface
Network Management Cards
SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; MODBUSCARD ; RELAYIOCARD
UPS Housing Material
Steel
Output Capacity Details
Output capacity de-rates to 4992 watts when used at 208V with optional L6-30P line cord; Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30 seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power; Double conversion mode is automatically restored as the overload is cleared
Overvoltage Correction
Corrects overvoltages as high as 300V (<90% load) and 280V (full load)
UPS AC Suppression Response Time
Instantaneous
Output AC Waveform (AC Mode)
Pure Sine wave
Output Volt Amp Capacity (VA)
6000
LED Indicators
6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status; LCD screen offers additional information and control options
Output Voltage Regulation (Line Mode)
+/- 2%
Output Watt Capacity (Watts)
5400
Crest Factor
0.125694444444444
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Frequency Compatibility Details
Output frequency matches input nominal on startup; Frequency conversion mode enable conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)
Operating Elevation (m)
0-3000 m
Primary Form Factor
Rackmount
Communications Interface
USB
Nominal Output Voltage(s) Supported
200V; 208V; 220V; 230V; 240V
Half Load Runtime (min.)
8.5 minutes (2700 watts)
Audible Noise
60 dBA at front side 1 meter
UPS Certification Details
IEC 61000-4-5 1995 B Surge Immunity
Rated input current (Maximum Load)
31.9A (200V), 30.6A (208V), 29A (220V), 27.7A (230V), 26.6A (240V)
AC Mode BTU / Hr. (Full Load)
1767
Battery Access
Front panel battery access door
Nominal Input Voltage Description
Factory configured to 208V
AC Economy Mode BTU / Hr. (Full Load)
768
Output Receptacles
(4) C19
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Audible Alarm
Unique audible alarms for all major UPS, environmental and power conditions (see manual)
Operating Elevation (ft.)
0-3000m (0 to 10,000 ft.)
WatchDog Compatibility
Yes
Network Monitoring Port Description
Additional contact closure support with optional RELAYIOCARD and RELAYIOMINI interface cards. RELAYIOMINI installation requires removal of panel containing USB ports
Individually Controllable Load Banks
No
Communications Cable
USB, DB9 serial and EPO cables included
Relative Humidity
0 to 95%, non-condensing
Undervoltage Correction
Corrects undervoltages as low as 100 (<50% load) and 155V (full load); derates linearly
UPS Certifications
CE; Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to UL1778 (USA)
UPS Input Connection Type
Hardwire
External Battery Pack Compatibility
BP192V12-3U ; BP192V5RT2U (limit 1); BP192V787C-1PH
Output Voltage Regulation (Economy Line Mode)
+/- 10%
Front Panel LCD Display
Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options; LED/LCD panel rotates for viewing in rack/tower formats
High Voltage Transfer to Battery Power (Setpoint)
280V (full load) / 300V (90% load or less)
Output kVA Capacity (kVA)
6
Transfer Time (Economy Mode)
8 ms. typical power failure response in optional economy mode
Included Mounting Accessory Description
Includes 4 post rackmount installation accessories
Frequency Compatibility
50 / 60 Hz
AC Economy Mode Efficiency Rating (100% Load)
0.96
Output Voltage Regulation (Battery Mode)
+/- 2%
Full Load Runtime (min.)
2 minutes (5400 watts)
Output kW Capacity (kW)
5.4
Voltage Regulation Description
Online, double-conversion power conditioning
Battery Replacement Description
Hot-swappable, user replaceable internal batteries
Output AC Waveform (Battery Mode)
Pure Sine wave
Battery Recharge Rate (Included Batteries)
6 hours from 10% to 90% (typical, full load discharge)
DC System Voltage (VDC)
192
Expandable Battery Runtime
Runtime is expandable with external battery packs
Alarm Cancel Operation
Alarm cancel switch
High Availability UPS Features
Automatic inverter bypass; Battery Independent Restart; Hot swappable UPS power module; Hot swappable batteries; Manual bypass switch
Nominal Input Voltage(s) Supported
200V AC; 208V AC; 220V AC; 230V AC; 240V AC
UPS Input Connection Description
Supports North American 208/240V input (L1,L2,G) or International 230/220/240V (L,N,PE) input wiring; Optional SU30ACORD offers NEMA L6-30P input
Output Circuit Breakers
Two 20A breakers protect 2 C19 outlets each
Internal UPS Replacement Battery Cartridge
RBC5-192
Recommended Electrical Service
40A (200/208v); 30-32A (220/230/240v)
AC Mode Efficiency Rating (100% Load)
0.9
UPS AC Suppression Joule Rating
2595
Battery Mode BTU / Hr. (Full Load)
2279
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Output Receptacle Details
Output receptacle and input connections are mounted on a detachable PDU backplate with bypass switch to enable hot-swappable power module replacement
Low Voltage Transfer to Battery Power (Setpoint)
156V (full load) / 100V (50% load or less, derates linearly)
Switches
Includes main power off/on switch, plus 2 switches to set and execute scrollable LCD functions. A manual bypass switch featured on the detachable PDU allows for complete removal of the UPS during routine maintenance without disrupting power to connected loads.
Product Type
Double Conversion Online UPS
Backup/Run Time (Half Load)
8.50 Minute
Load Capacity
6000 VA/5400 W
Plug/Connector Type
Hardwired
Network Management
SNMP Manageable
Additional Information
Output Receptacles: 4 x C19
Typical Battery Recharge Time
6 Hour
Backup/Run Time (Full Load)
2 Minute
Product Name

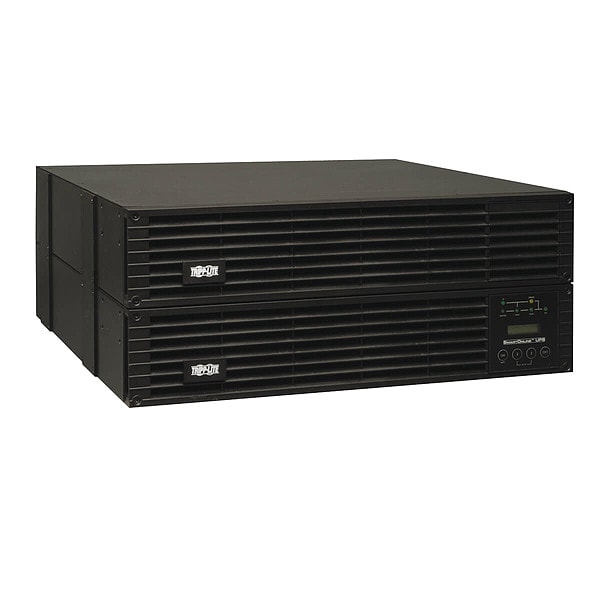

SmartOnline EZ SU6000RT4UHVG 6000 VA Tower/Rack Mountable UPS
Certifications & Standards
UL1778, CSA, FCC Part 15 Category A (EMI), IEC 61000-4-5 1995 B Surge Immunity
Package Contents
SmartOnline EZ SU6000RT4UHVG 6000 VA Tower/Rack Mountable UPS, PowerAlert Software Suite CD, USB Cable, Serial Cable, EPO Cable, Rail Kit
Bypass Switch
Automatic, Manual
Software Included
PowerAlert Software Suite
Runtime Half Load (min.)
8.5 min. (2700W)
Runtime Full Load (min.)
2 min. (5400W)
Online Mode Heat Dissipation (BTU/Hr) @ Full Load
1767
Output Capacity (VA)
6000
Output Capacity (Watts)
5400
Installation Form Factors Supported with Included Accessories
4 post 19 inch rackmount
Product Certifications
CSA (Canada); UL 1778
Battery Mode Heat Dissipation (BTU/Hr) @ Full Load
2279
Package Includes
SU6000RT4UHVPM Hot-swappable UPS Power Module;SUPDMB6KIEC Detachable PDU with Maintenance Bypass Switch;1 x 6-ft. USB Cable;1 x 6-ft. DB9 Cable;4-Post Rackmount Hardware
EMI / RFI AC Noise Suppression
Yes
UPS Applications
Mission Critical Applications
Product Compliance
CE (Europe); FCC Part 15 Class A (USA)
Input Current - Minimum
26.6 A
Number of Outlets - Surge Only
4
Power Rating - Apparent
6 kVA
Input Current - Maximum
31.9 A
Operating Temperature - Maximum
104 Degrees F
Operating Temperature - Minimum
32 Degrees F
External Battery Pack Part Number
BP192V12-3U, BP192V5RT2U, BP192V787C-1PH
Surge Suppression Rating
2,595 J
Plug Configuration
Hardwired
Run Time - Full Load
2 min
Transfer Time - Maximum
0 msec
Receptacle Configuration
C19
Number of Outlets - UPS
4
Replacement Battery Part Number
RBC5-192
External Battery Compatible
External Battery Pack Compatible
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Run Time - Half Load
8.5 min
Includes Battery
Battery Included
Output Ports Included
DB9 Serial, EPO, SNMP, USB
Battery Chemistry
Valve Regulated Lead Acid
Manufacturer Warranty
2 yr
Battery Recharge Time
6 hr
Power Rating - Real
5.4 kW
