- Item
- UPS System
- VA Rating - UPS Systems
- 6.0 kVA
- UPS Type
- Online/Double Conversion
- Power Rating
- 6kVA
- Mounting
- Rack/Tower
- Wattage
- 5.4 kW
- Input Voltage
- 200/208/220/230/240V AC
- Output Voltage
- 200/208/220/230/240V AC
- Backup Time (Half/Full Load)
- 8.5 min/2 min
- Outlet Type
- Hardwired
- Medical Grade
- No
- Number of Outlets
- 0
- Includes
- (4) Post Rackmount Hardware, 6 ft DB9 Cable, 6 ft USB Cables, SUPDMB6KHW Detachable PDU with Maintenance Bypass Switch
- Green Environmental Attribute
- Product Contributes To Reducing Energy Consumption
- Transfer Time
- 0 msec
- Automatic Volts Regulation
- No
- Display Type
- LCD
- Input Current
- 31.9 A
- Footnotes
- Slot for SNMPWEBCARD
- Hz
- 50/60 Hz
- Ports
- Slot for SNMPWEBCARD
- Fax/Modem Line Protection
- No
- Phase
- Single
- NEMA Receptacle Configuration
- No Configuration
- Standards
- CE (Europe), CSA (Canada), FCC Part 15 Class a (USA), IEC 61000, RoHS, UL1778
- Special Features
- and PDU, Automatic Inverter Bypass, Cold Start Operation Supported, High Efficiency Economy Mode Operation, Hot Swappable Batteries, Manual Bypass Switch, Schedulable Daily Hours of Economy Mode Operation, UPS
- NEMA Plug Configuration
- 5-15P
- Capacity - Batteries
- 6000 VA/5400 W
- Input Connection
- NEMA 5-15P Plug
- Battery Type
- VRLA
- Housing Material
- Steel
- Audible Noise
- 60 dBA at front side 1 meter
- UPS Input Connection Description
- Supports North American 208/240V input (L1,L2,G) or International 230/220/240V (L,N,PE) input wiring
- Expandable Battery Runtime
- Runtime is expandable with external battery packs
- Primary Form Factor
- Rackmount
- Half Load Runtime (min.)
- 8.5 minutes (2700 watts)
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); CE; Meets FCC Part 15 Category A (EMI)
- Output kVA Capacity (kVA)
- 6
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Output Voltage Regulation (Economy Line Mode)
- +/- 10%
- AC Economy Mode Efficiency Rating (100% Load)
- 0.96
- Low Voltage Transfer to Battery Power (Setpoint)
- 156V (full load) / 100V (50% load or less, derates linearly)
- Operating Elevation (m)
- 0-3000 m
- Alarm Cancel Operation
- Alarm cancel switch
- AC Mode BTU / Hr. (Full Load)
- 1767
- WatchDog Compatibility
- Yes
- Switches
- Includes main power off/on switch, plus 2 switches to set and execute scrollable LCD functions. A manual bypass switch featured on the detachable PDU allows for complete removal of the UPS during routine maintenance without disrupting power to connected loads
- Recommended Electrical Service
- 40A (200/208v); 30A (220/230/240v)
- Network Management Cards
- SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; MODBUSCARD ; RELAYIOCARD
- Full Load Runtime (min.)
- 2 minutes (5400 watts)
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- Frequency Compatibility Details
- Output frequency matches input nominal on startup; Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)
- Audible Alarm
- Unique audible alarms for all major UPS, environmental and power conditions (see manual)
- Battery Recharge Rate (Included Batteries)
- 6 hours from 10% to 90% (typical, full load discharge)
- PowerAlert Software
- For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- Internal UPS Replacement Battery Cartridge
- RBC5-192
- EMI / RFI AC Noise Suppression
- Yes
- AC Economy Mode BTU / Hr. (Full Load)
- 768
- High Availability UPS Features
- Automatic inverter bypass; Battery Independent Restart; Hot swappable UPS power module; Hot swappable batteries; Manual bypass switch
- Output Volt Amp Capacity (VA)
- 6000
- Battery Access
- Front panel battery access door
- Included Mounting Accessory Description
- 4 post rackmount installation accessories included
- External Battery Pack Compatibility
- BP192V1037C-1PH ; BP192V12-3U ; BP192V1407C-1PH ; BP192V557C-1PH ; BP192V787C-1PH ; BP192V5RT2U (limit 1)
- Nominal Output Voltage(s) Supported
- 200V; 208V; 220V; 230V; 240V
- Output Watt Capacity (Watts)
- 5400
- Operating Elevation (ft.)
- 0-3000m (0 to 10,000 ft.)
- Expandable Runtime
- Yes
- Undervoltage Correction
- Corrects undervoltages as low as 100 (<50% load) and 155V (full load); derates linearly
- AC Mode Efficiency Rating (100% Load)
- 0.9
- Individually Controllable Load Banks
- No
- Input Phase
- Single-Phase
- Crest Factor
- 0.125694444444444
- UPS AC Suppression Joule Rating
- 2595
- Rated input current (Maximum Load)
- 31.9A (200V), 30.6A (208V), 29A (220V), 27.7A (230V), 26.6A (240V)
- Output kW Capacity (kW)
- 5.4
- Communications Interface
- USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
- Overvoltage Correction
- Corrects overvoltages as high as 300V (<90% load) and 280V (full load)
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Transfer Time (Economy Mode)
- 8 ms. typical power failure response in optional economy mode
- Cooling Method
- Fans
- DC System Voltage (VDC)
- 192
- Battery Replacement Description
- Hot-swappable, user replaceable internal batteries
- Output Voltage Regulation (Line Mode)
- +/- 2%
- Output Capacity Details
- Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30 seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power; Double conversion mode is automatically restored as the overload is cleared
- LED Indicators
- 6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status; LCD screen offers additional information and control options
- Storage Temperature Range
- +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Installation Form Factors Supported with Optional Accessories
- 2 post rackmount ( 2POSTRMKITHD ); Tower ( 2-9USTAND )
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 2279
- Output Receptacle Details
- Hardwire input and output connections are mounted on a detachable PDU backplate with bypass switch to enable hot-swappable power module replacement
- Output Voltage Regulation (Battery Mode)
- +/- 2%
- Nominal Input Voltage(s) Supported
- 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
- UPS AC Suppression Response Time
- Instantaneous
- UPS Certification Details
- IEC 61000-4-5 1995 B Surge Immunity
- High Voltage Transfer to Battery Power (Setpoint)
- 280V (full load) / 300V (90% load or less)
- Communications Cable
- USB, DB9 serial and EPO cables included
- Voltage Regulation Description
- Online, double-conversion power conditioning
- Network Monitoring Port Description
- Additional contact closure support with optional RELAYIOCARD and RELAYIOMINI interface cards. RELAYIOMINI installation requires removal of panel containing USB ports
- Front Panel LCD Display
- Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options; LED/LCD panel rotates for viewing in rack/tower formats (see manual)
- Power Factor
- 0,9
- Product Series
- EZ
- Serial Port
- Yes
- Hot Swappable
- Yes
- Load Capacity
- 6000 VA/5400 W
- Form Factor
- Rack/Tower
- Typical Battery Recharge Time
- 6 Hour
- Package Contents

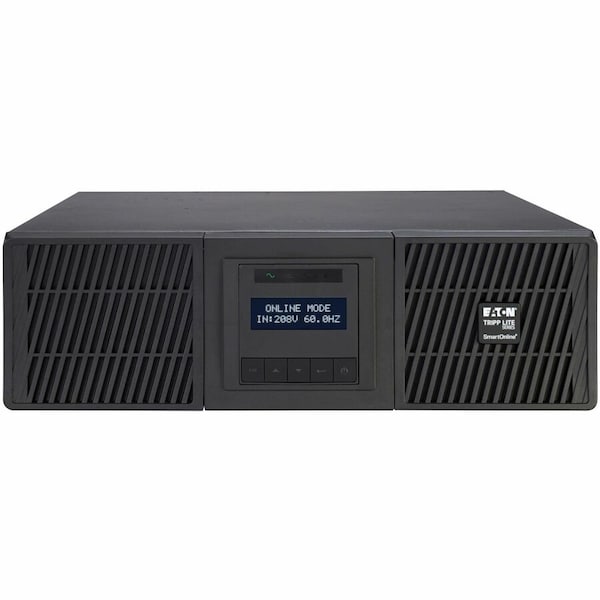

- SmartOnline EZ SU6000RT4UHVHW 6000 VA Tower/Rack Mountable UPS, PowerAlert Software Suite CD, USB Cable, Serial Cable, EPO Cable, Rail Kit
- Bypass Switch
- Manual, Automatic
- Network Management
- SNMP Manageable
- Emergency Power OFF
- Yes
- Software Included
- PowerAlert Software Suite
- USB
- Yes
- Output Capacity (Watts)
- 5400
- Output Capacity (VA)
- 6000
- UPS Applications
- Mission Critical Applications
- Package Includes
- SU6000RT4UHVPM Hot-swappable UPS Power Module;SUPDMB6KHW Detachable PDU with Maintenance Bypass Switch;1 x 6-ft. USB Cable;1 x 6-ft. DB9 Cable;4-Post Rackmount Hardware
- Product Compliance
- CE (Europe); FCC Part 15 Class A (USA)
- Product Certifications
- IEC 61000; CSA (Canada); UL 1778
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- Online Mode Heat Dissipation (BTU/Hr) @ Full Load
- 1767
- Manufacturer Warranty
- 2 yr
- Number of Outlets - UPS
- 0
- Number of Outlets - Surge Only
- 0
- External Battery Compatible
- External Battery Pack Compatible
- Battery Chemistry
- Valve Regulated Lead Acid
- Frequency
- 50/60 Hz
- Power Rating - Apparent
- 6 kVA
- Input Current - Maximum
- 31.9 A
- Receptacle Configuration
- Hardwired
- Surge Suppression Rating
- 2,595 J
- Run Time - Full Load
- 2 min
- Input Current - Minimum
- 26.6 A
- Output Ports Included
- DB9 Serial, EPO, SNMP, USB
- Battery Recharge Time
- 6 hr
- Operating Temperature - Maximum
- 104 Degrees F
- Plug Configuration
- Hardwired
- Automatic Voltage Regulation
- Includes Automatic Voltage Regulation
- External Battery Pack Part Number
- BP192V1037C-1PH, BP192V12-3U, BP192V1407C-1PH, BP192V5RT2U, BP192V787C-1PH
- Operating Temperature - Minimum
- 32 Degrees F
- Transfer Time - Maximum
- 0 msec
- Replacement Battery Part Number
- RBC5-192
- Power Rating - Real
- 5.4 kW
- Includes Battery
- Battery Included
- Run Time - Half Load
- 8.5 min
