- Item

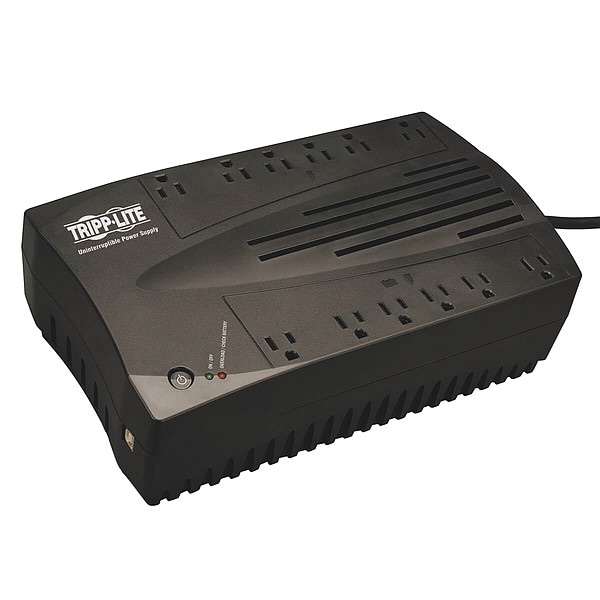

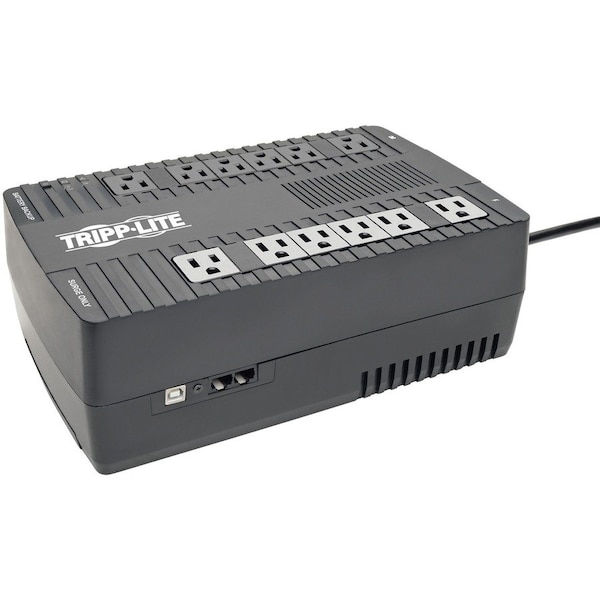

- UPS System
- UPS Type
- Line Interactive
- Power Rating
- 750VA
- Mounting
- Desktop/Tower
- Wattage
- 450 W
- Input Voltage
- 120V AC
- Output Voltage
- 110/115/120V AC
- Backup Time (Half/Full Load)
- 11 min/3 min
- Outlet Type
- (6) Surge; (6) UPS/Surge
- Medical Grade
- No
- Number of Outlets
- 12
- Automatic Volts Regulation
- No
- Standards
- CSA, FCC Part 15 Class A, NOM, RoHS, UL1778
- Display Type
- No Display
- Footnotes
- 4
- Hz
- 60 Hz
- NEMA Receptacle Configuration
- (12) 5-15R
- Special Features
- USB Port And Poweralert Software Enables Unattended Shutdown In Case Of Extended Power Failure
- Ports
- USB (HID enabled)
- Phase
- Single
- Includes
- USB Cables
- NEMA Plug Configuration
- 5-15P
- VA Rating - UPS Systems
- 750.0 VA
- Green Environmental Attribute
- Product Contributes To Reducing Energy Consumption
- Input Current
- 12 A
- Fax/Modem Line Protection
- No
- Transfer Time
- 2 to 4 msec
- Input Connection
- 6 ft Cord with NEMA 5-15P Plug
- Housing Color
- Black
- Battery Type
- VRLA
- Housing Material
- ABS
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Operating Elevation (m)
- Up to 3000m
- PowerAlert Software
- For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- High Availability UPS Features
- Battery Independent Restart
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Rated input current (Maximum Load)
- 10A
- Output Watt Capacity (Watts)
- 450
- Battery Recharge Rate (Included Batteries)
- 8 hours (10% to 90%)
- Overvoltage Correction
- Input voltages between 128 and 145 are reduced by 15%
- Primary Form Factor
- Desktop
- UPS AC Suppression Response Time
- Instantaneous
- Output Voltage Regulation (Battery Mode)
- 120V (±10%)
- Battery Replacement Description
- Replaceable internal batteries (see manual)
- Storage Temperature Range
- +5 to +113 degrees Fahrenheit / -15 to +45 degrees Celsius
- Input Phase
- Single-Phase
- Output Voltage Regulation (Line Mode)
- 120V (+6%/-12%)
- UPS Dataline Suppression
- 1 line TEL/DSL or Ethernet
- Input Circuit Breakers
- 10A
- LED Indicators
- 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
- Battery Access
- Battery access door
- AC Mode Efficiency Rating (100% Load)
- >96%
- Recommended Electrical Service
- 15A 120V
- Nominal Input Voltage(s) Supported
- 120V AC
- Output AC Waveform (Battery Mode)
- PWM sine wave
- Relative Humidity
- 0 to 90%, non-condensing
- Half Load Runtime (min.)
- 11 min. (225w)
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Individually Controllable Load Banks
- No
- Internal UPS Replacement Battery Cartridge
- RBC51
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145
- AC Mode BTU / Hr. (Full Load)
- 41
- Output Volt Amp Capacity (VA)
- 750
- Audible Alarm
- UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions
- UPS AC Suppression Joule Rating
- 316
- Switches
- Power off/on switch
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- High Voltage Transfer to Battery Power (Setpoint)
- 145
- Full Load Runtime (min.)
- 3 min. (450w)
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
- Installation Form Factors Supported with Included Accessories
- Tower; Ultra-compact desktop; Wallmount
- Operating Elevation (ft.)
- Up to 10,000 ft.
- Low Voltage Transfer to Battery Power (Setpoint)
- 89
- DC System Voltage (VDC)
- 12
- EMI / RFI AC Noise Suppression
- Yes
- Communications Cable
- USB interface cable included
- Undervoltage Correction
- Input voltages between 89 and 108 are boosted by 18%
- UPS Certification Details
- UL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION; FCC CLASS A; FCC Part 68 Approved (#5WSWP01B005); Industry Canada Approved (#3449A-005, REN0.1B); RETIE (Colombia)
- Communications Interface
- USB (HID enabled)
- Grounding Lug
- Includes side panel grounding lug
- Expandable Runtime
- No
- Assembly Required
- No
- Maximum Operating Temperature
- 104°F (40°C)
- Application/Usage
- Printer, Home Theater, Home/Office, Router, TV, Digital Signage, Security System, ATM, Media Center, Computer, Blu-ray Player, Gaming Console
- AVR
- Yes
- Alarm
- Battery Backup, Low Battery, Overload, Replace Battery, Fault
- Typical Battery Recharge Time
- 9 Hour
- Energy Saving
- Greater than 95% efficiency - GREEN UPS
- Surge Energy Rating
- 316 J
- AVR Range
- Boost +18% / Buck -15%
- Waveform Type
- Pulse-width Modulated Sine Wave
- Input Frequency
- 60 Hz
- Product Series
- AVR
- Number of Battery & Surge Outlets
- 6
- Package Contents
- AVR 750VA Desktop UPS, USB cable, Instruction manual
- Maximum Operating Elevation
- 10000 ft
- Status Indicators
- 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
- USB (HID Compliant) Port
- Yes
- EMI/RFI Noise Filter
- Yes
- Storage Temperature
- 5°F (-15°C) - 113°F (45°C)
- USB
- Yes
- Output Frequency
- 60 Hz
- Replaceable Battery
- Yes
- Dataline Protection
- RJ-11
- Load Capacity
- 750 VA/450 W
- Form Factor
- Ultra-compact Desktop/Tower/Wall Mount
- Package Includes
- AVR750U 750VA 450W 120V Line-Interactive UPS with 12 Outlets;USB cable;Owner's manual
- Grounding Details
- Includes side panel grounding lug
- UPS Dataline Suppression Details
- Set of two 8 position RJ connectors protect either a single 10BaseT connection (pins 1,2,3 & 6; 7.5V clamping) or a single TEL/DSL connection (pins 4-5; 260V clamping)
- Product Certifications
- RETIE (Colombia); CSA (Canada); NOM (Mexico); UL 1778
- Product Compliance
- FCC Part 15 Class A (USA)
- Output Capacity (Watts)
- 450
- Output Capacity (VA)
- 750
- UPS Applications
- Home/Office Desktop; Audio/Video; Retail/Point of Sale; Hospitality
- Number of Outlets - UPS
- 6
- Plug Configuration
- 5-15P
- Transfer Time - Minimum
- 6 msec
- Power Rating - Real
- 450 W
- Transfer Time - Maximum
- 10 msec
- Data Line Protection
- Includes Data Line Surge Protection
- Replacement Battery Part Number
- RBC51
- External Battery Compatible
- Not External Battery Pack Compatible
- Number of Outlets - Surge Only
- 6
- Battery Chemistry
- Valve Regulated Lead Acid
- Input Current - Maximum
- 10 A
- Operating Temperature - Minimum
- 32 Degrees F
- Frequency
- 50/60 Hz
- Power Rating - Apparent
- 750 VA
- Surge Suppression Rating
- 316 J
- Automatic Voltage Regulation
- Includes Automatic Voltage Regulation
- Manufacturer Warranty
- 3 yr Limited
- Battery Recharge Time
- 8 hr
- Operating Temperature - Maximum
- 104 Degrees F
- Receptacle Configuration
- 5-15R
- Audible Alarm Conditions
- Low Battery, Overload
- Visible Indicator Light Conditions
- Battery Low, Fault, Overload, Power Status, Replace Battery
- Includes Battery
- Battery Included
- Output Ports Included
- USB
- Run Time - Full Load
- 3 min
