Product Contributes To Reducing Energy Consumption
Fax/Modem Line Protection
Yes
Hz
50/60 Hz
Capacity - Batteries
750 VA/450 W
Battery Type
Sealed Lead Acid (SLA)
Housing Color
Black
Input Connection
NEMA 5-15P Plug
Housing Material
ABS
Full Load Runtime (min.)
2.4 min. (450w)
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
AC Mode Efficiency Rating (100% Load)
0.98
Undervoltage Correction
Input voltages between 159 and 205 are boosted by 14%
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Battery Replacement Description
Hot-swappable, user replaceable batteries
Expandable Runtime
No
UPS AC Suppression Joule Rating
320
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Communications Interface
USB (HID enabled)
EMI / RFI AC Noise Suppression
Yes
Hot-Swap PDU options
PDUBHV10 (2U / 8 C13 outlets)
Output Volt Amp Capacity (VA)
750
Individually Controllable Load Banks
No
Audible Alarm
Audible alarm indicates power-failure and overload status
Internal UPS Replacement Battery Cartridge
RBC51
Nominal Output Voltage(s) Supported
220V; 230V; 240V
Included Output Power Cables
Includes 2 C13 to C14 output power cables
UPS Input Connection Description
Attached 15cm line cord with C14 inlet. The C14 inlet accepts user-supplied AC power cord with country specific plug.
Output Voltage Regulation (Line Mode)
+8%, -21%
Half Load Runtime (min.)
8.6 min. (225w)
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
High Voltage Transfer to Battery Power (Setpoint)
282
Rated input current (Maximum Load)
10A
Low Voltage Transfer to Battery Power (Setpoint)
159
Output Watt Capacity (Watts)
450
Network UPS Tools Compatibility
NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
Battery Mode BTU / Hr. (Full Load)
459
Communications Cable
USB interface cable included
Battery Access
Battery access door
UPS AC Suppression Response Time
Instantaneous
LED Indicators
2 LEDs indicate power status and overload/check battery status
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
AC Mode BTU / Hr. (Full Load)
20
Frequency Compatibility Details
Automatic frequency selection
Overvoltage Correction
Input voltages between 245 and 282 are reduced by 12%
Switches
Combination switch controls on/off power status and self-test operation
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out)
Output Voltage Regulation (Battery Mode)
+/- 5%
High Availability UPS Features
Hot swappable batteries
Nominal Input Voltage(s) Supported
230V AC
Relative Humidity
0 to 95%, non-condensing
Output AC Waveform (Battery Mode)
PWM sine wave
Installation Form Factors Supported with Included Accessories
Tower; Ultra-compact desktop; Wallmount
DC System Voltage (VDC)
12
Primary Form Factor
Desktop
UPS Certifications
CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia); Meets FCC Part 15 Category B (EMI)
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 159 to 282VAC
Input Phase
Single-Phase
Load Capacity
750 VA/450 W
Battery Characteristics
Maintenance-free
Package Contents
AVRX750AVR Line Interactive UPS, USB and phone cable, Owner's manual with warranty information
Hot Swappable
Yes
Battery Chemistry
Valve Regulated Lead Acid
Number of Batteries
1
Surge Energy Rating
320 J
Additional Information

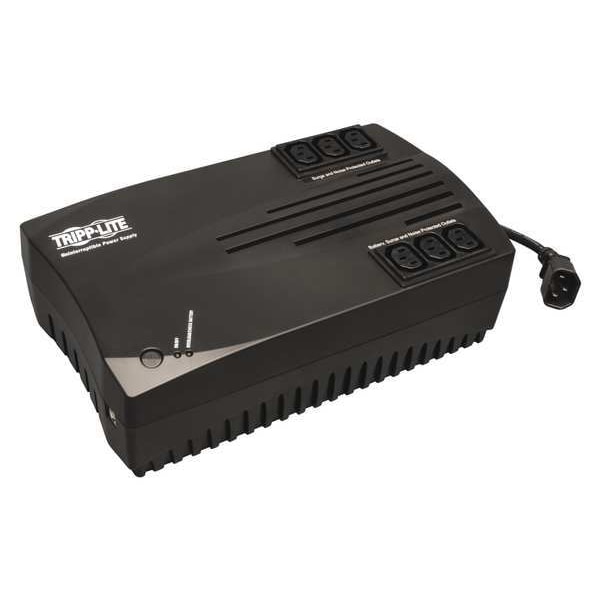

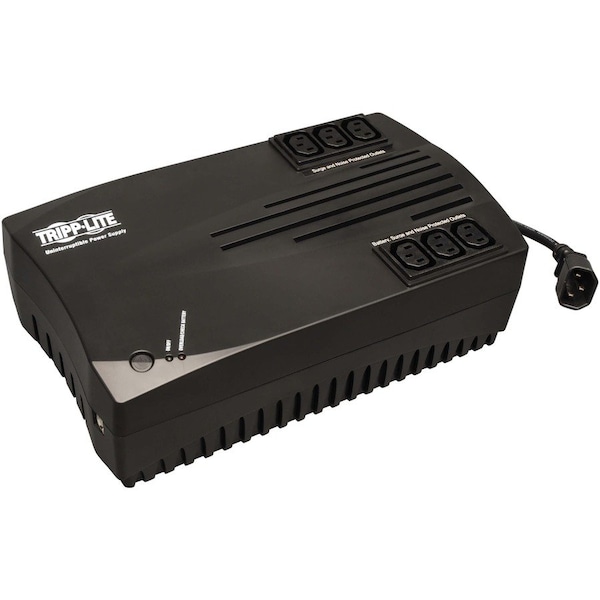

AVRX750AVR line interactive UPS offers complete protection from blackouts, brownouts and surges on AC and tel/DSL dataline connections, Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages back to nominal levels without using battery power, 6 built-in C13 outlets, Provides battery derived AC output during blackouts and brownouts, 750VA / 450 watt power handling ability supports a variety of PCs, workstations and other sensitive electronics, Supports entry-level PC systems up to 35 minutes during blackout conditions, Single line tel/DSL line surge suppression with line splitter protects two directly-connected modems, fax machines or cordless phones sharing a single phone line connection, USB port, FREE PowerAlert Software and cabling provide monitoring of site power conditions, Compatible with Tripp Lite's WatchDog System Service Monitoring/Rebooting Software (part# WATCHDOGSW), Hot swappable battery replacement supported via battery access door, Space saving, ultra-compact housing, 2 year manufacturer's product warranty
Grounding Details
Yes
Output Capacity (Watts)
450
UPS Applications
Home/Office Desktop; Audio/Video; Retail/Point of Sale; Hospitality
Package Includes
AVRX750U UPS System;USB cable;Two C13 to C14 power cables;Instruction manual
Output Capacity (VA)
750
Product Compliance
SASO (Saudi Arabia); CE (Europe); FCC Part 15 Class B (USA)
Product Certifications
GOST (Russia)
Power Rating - Real
450 W
Includes Battery
Battery Included
Operating Temperature - Minimum
32 Degrees F
Run Time - Full Load
2.4 min
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Audible Alarm Conditions
Low Battery, Overload, Replace Battery
Number of Outlets - Surge Only
3
Visible Indicator Light Conditions
Overload, Power Status
Manufacturer Warranty
2 yr Limited
Power Rating - Apparent
750 VA
Transfer Time - Maximum
4 msec
Receptacle Configuration
C13
Data Line Protection
Includes Data Line Surge Protection
Output Ports Included
USB
Operating Temperature - Maximum
104 Degrees F
Number of Outlets - UPS
3
Replacement Battery Part Number
RBC51
Input Current - Maximum
10 A
Frequency
50/60 Hz
Plug Configuration
C14
External Battery Compatible
Not External Battery Pack Compatible
Transfer Time - Minimum
2 msec
Description
UPS System, Line Interactive, Power Rating 750 VA, Wattage 450 W, Input Voltage 230V AC, Output Voltage 220V AC, 230V AC, 240V AC, Backup Time (Half/Full Load) 10 min/3 min, Mounting Desktop/Tower, Outlet Type UPS/Surge, Number of Outlets 6, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration C13, NEMA Plug Configuration 5-15P, Automatic Volts Regulation Yes, Fax/Modem Line Protection Yes, Transfer Time 2 to 4 msec, Width 12 in, Depth 7 in, Height 4 in, Cord Length 0.5 ft
