VA Rating - UPS Systems
900.0 VA
UPS Type
Line Interactive
Output Voltage
110/115/120V AC
Backup Time (Half/Full Load)
10 min/2.7 min
Outlet Type
(6) Surge; (6) UPS/Surge
Automatic Volts Regulation
Yes
Transfer Time
1 msec from Battery to AC, 4 msec from AC to Battery
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Footnotes
USB and TEL/DSL
Fax/Modem Line Protection
Yes
NEMA Plug Configuration
5-15P
Standards
CSA, FCC Part 15 Class A, NOM, RoHS, UL1778
Special Features
Hot Swappable Batteries
NEMA Receptacle Configuration
(12) 5-15R
Input Connection
NEMA 5-15P Plug
Output Voltage Regulation (Battery Mode)
120V (±10%)
UPS AC Suppression Joule Rating
316
Communications Interface
USB (HID enabled)
Battery Recharge Rate (Included Batteries)
8 hours (10% to 90%)
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Output AC Waveform (Battery Mode)
PWM sine wave
AC Mode BTU / Hr. (Full Load)
41
Internal UPS Replacement Battery Cartridge
RBC51
Audible Alarm
UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace battery conditions
Communications Cable
USB interface cable included
Output Watt Capacity (Watts)
480
UPS Dataline Suppression
1 line TEL/DSL or Ethernet
Relative Humidity
0 to 90%, non-condensing
Rated input current (Maximum Load)
10A
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Overvoltage Correction
Input voltages between 128 and 145 are reduced by 15%
Storage Temperature Range
+5 to +113 degrees Fahrenheit / -15 to +45 degrees Celsius
Low Voltage Transfer to Battery Power (Setpoint)
89
Half Load Runtime (min.)
10 min. (240w)
High Availability UPS Features
Battery Independent Restart
LED Indicators
2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
Output Voltage Regulation (Line Mode)
120V (+6%/-12%)
Primary Form Factor
Desktop
Output Volt Amp Capacity (VA)
900
EMI / RFI AC Noise Suppression
Yes
Hot-Swap PDU options
PDUB15 (2U / 8 5-15R outlets)
UPS Certification Details
UL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION; FCC CLASS A; FCC Part 68 Approved (#5WSWP01B005); Industry Canada Approved (#3449A-005, REN0.1B); RETIE (Colombia)
DC System Voltage (VDC)
12
Grounding Lug
Includes optional side-panel grounding lug
Nominal Input Voltage(s) Supported
120V AC
Battery Replacement Description
Replaceable internal batteries (see manual)
Switches
Power off/on switch
UPS AC Suppression Response Time
Instantaneous
Installation Form Factors Supported with Included Accessories
Tower; Ultra-compact desktop; Wallmount
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Individually Controllable Load Banks
No
Input Circuit Breakers
10A
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Undervoltage Correction
Input voltages between 89 and 108 are boosted by 18%
Operating Elevation (m)
Up to 3000m
High Voltage Transfer to Battery Power (Setpoint)
145
Battery Access
Battery access door
UPS Certifications
Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
AC Mode Efficiency Rating (100% Load)
>96%
Operating Elevation (ft.)
Up to 10,000 ft.
Recommended Electrical Service
15A 120V
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145
Full Load Runtime (min.)
2.7 min. (480w)
Maximum Operating Temperature
104°F (40°C)
Number of Battery & Surge Outlets
6
Surge Energy Rating
316 J
Additional Information
Appearance: All black ultra-compact housingOutput voltage regulation: Sine wave 120V +14% / -12% (line mode), PWM sine wave 115V +/-5% (battery mode)Output frequency regulation: Line Mode: Passes line frequency of 60Hz +/-10%, Battery Mode: Inverter output regulated to 60Hz +/-0.5Hz
Battery Chemistry
Valve Regulated Lead Acid
Form Factor
Ultra-compact Desktop/Tower/Wall Mount
Alarm
Overload, Battery Backup, Fault, Replace Battery, Low Battery
Load Capacity
900 VA/480 W
USB (HID Compliant) Port
Yes
Status Indicators
2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
AVR Range
Boost +18% / Buck -15%
Package Contents
AVR 900VA Desktop UPS, Owner's manual
Waveform Type
Pulse-width Modulated Sine Wave
Storage Temperature
5°F (-15°C) - 113°F (45°C)
Software Included
PowerAlert Software
Typical Battery Recharge Time
8 Hour
Product Compliance
FCC Part 15 Class A (USA)
Package Includes

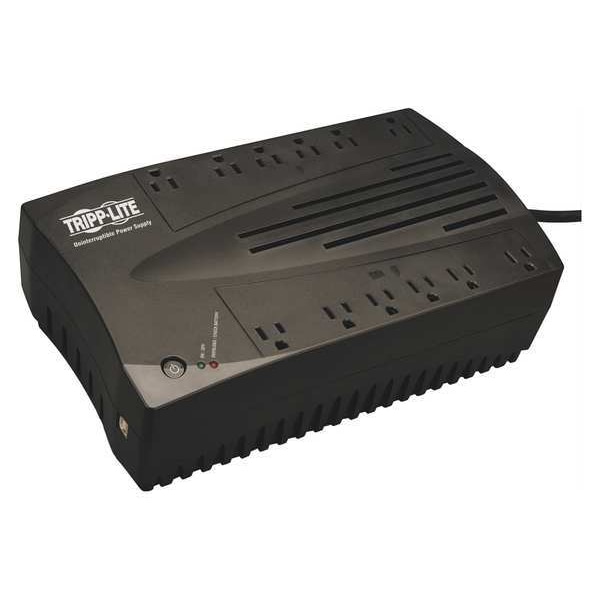

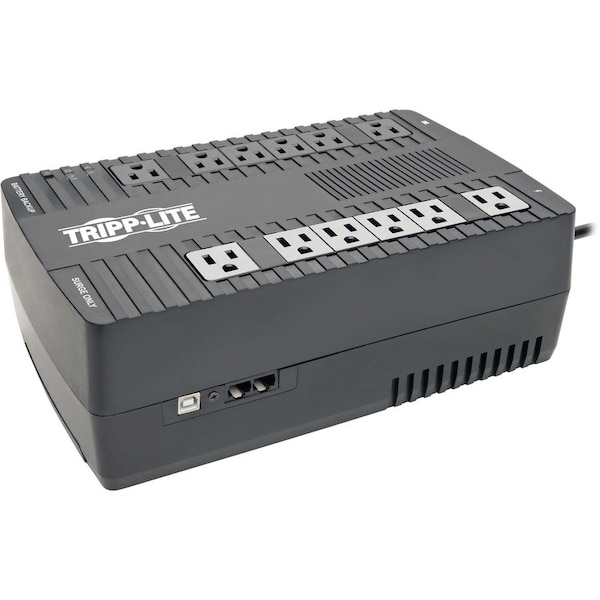

AVR900U 900VA 480W 120V Line-Interactive UPS with 12 Outlets;USB cable;Owner's manual
Grounding Details
Includes optional side-panel grounding lug
UPS Applications
Home/Office Desktop; Audio/Video; Retail/Point of Sale; Hospitality
Output Capacity (Watts)
480
Product Certifications
RETIE (Colombia); CSA (Canada); NOM (Mexico); UL 1778
Data Line Protection
Includes Data Line Surge Protection
Operating Temperature - Minimum
32 Degrees F
Replacement Battery Part Number
RBC51
Number of Outlets - Surge Only
6
Includes Battery
Battery Included
Surge Suppression Rating
316 J
Operating Temperature - Maximum
104 Degrees F
Audible Alarm Conditions
Low Battery, Overload, Replace Battery
Battery Recharge Time
8 hr
Manufacturer Warranty
3 yr Limited
Power Rating - Real
480 W
Power Rating - Apparent
900 VA
Number of Outlets - UPS
6
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Output Ports Included
USB
Receptacle Configuration
5-15R
Visible Indicator Light Conditions
Battery Low, Fault, Overload, Power Status, Replace Battery
Transfer Time - Minimum
6 msec
Input Current - Maximum
10 A
External Battery Compatible
Not External Battery Pack Compatible
Run Time - Full Load
2.7 min
Transfer Time - Maximum
10 msec
