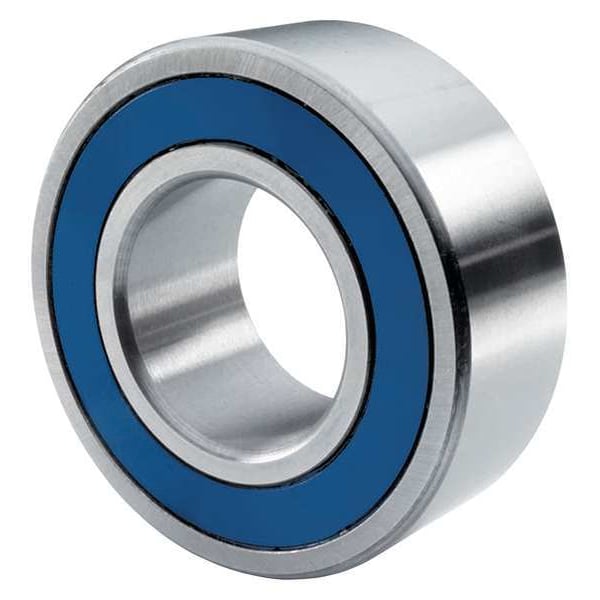

Radial Ball Bearing, SS, 40mm, SS6008 2RS

product price: $46.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bearing Type Double Sealed
  • Single Row/Double Row Single Row
  • Seal/Shield Type Double Sealed
  • Cage Material Stainless Steel
  • Bore Dia. 40mm
See all product information

Product Information

Dimensions

Bore Dia. 40mm
Outside Dia. 68mm
Width 15mm
Outside Dia. Tolerance +0/-0.013mm
Bore Diameter Tolerance +0/-0.012 mm
Bore Diameter 40 mm
Outside Diameter Tolerance +0/-0.013 mm
Outer Ring Width 15 mm
Outside Diameter 68 mm

Details

Item Radial Ball Bearing
Bearing Type Double Sealed
Single Row/Double Row Single Row
Seal/Shield Type Double Sealed
Cage Material Stainless Steel
Seal Material Rubber
Bearing Material 440 Stainless Steel
Lubrication NLGI Grade 2 Multipurpose Lithium Soap Based Bearing Grease
Dynamic Load Capacity 3777 Lbf
Temp. Range -20 to +212° F
Industry Number SS6008-2RS
ABEC Tolerance 1
Static Load Capacity 2585 Lbf
Bore Tolerance +0/-0.012mm
Max. RPM 7,500 RPM
Ball Material Alloy Steel
ABEC Rating 1
Retaining Ring Groove No
Ball Material Grade AISI 52100
Maximum Speed 12,000 RPM
Number of Rows One
Resistance Properties Corrosion Resistant
Dynamic Radial Load Capacity 3,000 lbf
Maximum Axial Load 3,750 lbf
System of Measurement Metric
Static Radial Load Capacity 2,540 lbf
For Environment Oily/Greasy
Includes Retaining Ring No
Bearing Industry Number 6008
Cage Material Grade 304
Seal Type Contact
Lubricant Material FM222
Flange Type Non-Flanged
Maximum Temperature 350 Degrees F
Ring Material Stainless Steel
Ring Material Grade 440C
Minimum Temperature -40 Degrees F
Standards AFBMA, ISO Certified 9001
Closure Double Sealed

Description

Radial Ball Bearing, Bearing Industry Number 6008, Bore Diameter 40 mm, Closure Double Sealed, For Environment Oily/Greasy, Outer Ring Width 15 mm, Outside Diameter 68 mm, Ring Material Stainless Steel, Seal Type Contact, System of Measurement Metric, Cage Material Stainless Steel, ABEC Rating 1, Ball Material Alloy Steel, Ball Material Grade AISI 52100, Bore Diameter Tolerance +0/-0.012 mm, Cage Material Grade 304, Dynamic Radial Load Capacity 3,000 lbf, Flange Diameter Not Applicable
