  9. Analog Panel Meter, AC, 68mm x 68mm, Screw

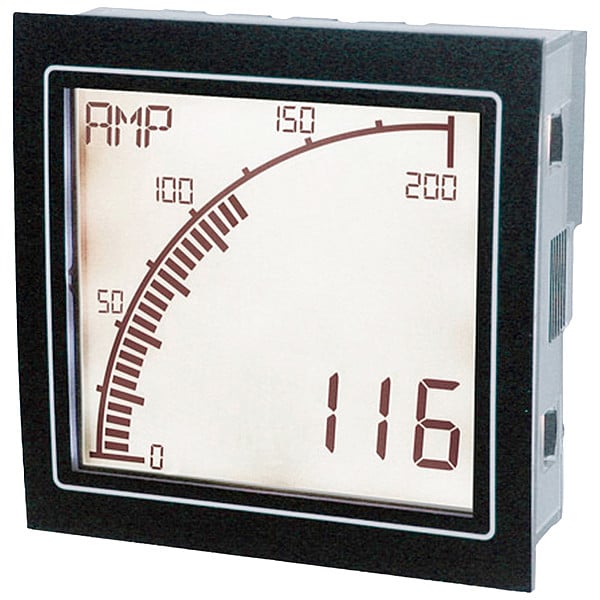

Trumeter Analog Panel Meter, AC, 68mm x 68mm, Screw APM-AMP-APO - main

Analog Panel Meter, AC, 68mm x 68mm, Screw

  • Mfr # APM-AMP-APO

  • Zoro # G406116111

product price: $137.99
/ea
Free Shipping & Returns

Key Features

Standards
CE, CUL, RoHS, UKCA, UL, UL50
Accuracy
1%
Includes
Mounting Brackets, Screws
Size (In.)
2.84 x 2.84 x 2.09 in
Type
AC Current; DC Current
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
APM-AMP-APO
Zoro #
G406116111
UPC #
-
Country of Origin
Malaysia

Dimensions

Size (In.)
2.84 x 2.84 x 2.09 in
Manufacturers Warranty Length
3 yr
Overall Height
2.83 in
Overall Width
2.83 in
Cutout Height
2 11/16 in
Digit Height - Minimum
0.23 in
Digit Height - Maximum
0.47 in
Cutout Width
2 11/16 in
Overall Depth
2.09 in

Details

Item
Current Meter
Standards
CE, CUL, RoHS, UKCA, UL, UL50
Accuracy
1%
Includes
Mounting Brackets, Screws
Type
AC Current; DC Current
Range
0 to 5 A (Direct); 0 to 10,000 A (Continuous)
Connector Type
Screw Terminal
Display Digits
4
Interface
RS-485
Output
4-20mA
Display
Posistive Digit LCD
Use With
Control Panels and Power Supplies
Display Span
9999
Input Range
0 to 10,000 A (via CT), 0 to 5 A (Direct)
Mounting
Screws
Fits
68mm x 68mm
NEMA Rating
4; 12
Product Type
Current Meter
Display Features
High Contrast
Display Span - Minimum
9
NEMA Enclosure Rating
12, 4
DC Voltage Input - Minimum
12 V DC
Display Span - Maximum
9,999
Terminal Connection Type
Internal Removable Terminal Blocks
Current Display - Minimum
0 A
Includes Mounting Hardware
Included
Digital Display Screen Color
Green, Red, White
Digital Display Screen Type
LCD
Number of Display Digits
4
DC Voltage Input - Maximum
24 V DC
AC Magnitude Calculation
True RMS
AC Voltage Input - Maximum
24 V AC
Parameters Measured
AC Voltage, DC Voltage
AC Voltage Input - Minimum
12 V AC

Description

Analog Panel Meter,5A
