  9. Analog Panel Meter, DC, 68mm x 68mm, Screw

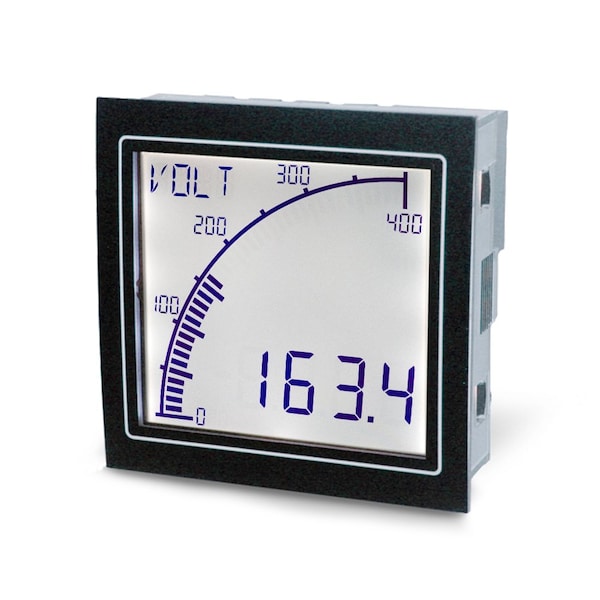

Trumeter Analog Panel Meter, DC, 68mm x 68mm, Screw APM-SHUNT-APO - main

Analog Panel Meter, DC, 68mm x 68mm, Screw

  • Mfr # APM-SHUNT-APO

  • Zoro # G606116102

product price: $141.99
/ea
Free Shipping & Returns

Key Features

Standards
CE, CUL, RoHS, UKCA, UL, UL50
Accuracy
0.1%
Includes
Mounting Brackets, Screws
Size (In.)
2.84 x 2.84 x 2.09 in
Type
DC Current
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
APM-SHUNT-APO
Zoro #
G606116102
UPC #
-
Country of Origin
Malaysia

Dimensions

Size (In.)
2.84 x 2.84 x 2.09 in
Manufacturers Warranty Length
3 yr
Overall Height
2.83 in
Overall Width
2.83 in
Digit Height - Minimum
0.23 in
Cutout Width
2 11/16 in
Cutout Height
2 11/16 in
Digit Height - Maximum
0.47 in
Overall Depth
2.09 in

Details

Item
Shunt Meter
Standards
CE, CUL, RoHS, UKCA, UL, UL50
Accuracy
0.1%
Includes
Mounting Brackets, Screws
Type
DC Current
Range
0 to 1 V DC
Use With
External Shunts on Low Side
Display
Posistive Digit LCD
Connector Type
Screw Terminal
Output
4-20mA
Interface
RS-485
Display Digits
4
Mounting
Screws
NEMA Rating
4; 12
Input Range
0.5 mV
Fits
68mm x 68mm
Display Span
9999
Digital Display Screen Color
Green, Red, White
Parameters Measured
AC Voltage, DC Voltage
AC Voltage Input - Maximum
24 V AC
Display Span - Minimum
9
AC Voltage Input - Minimum
12 V AC
Display Span - Maximum
9,999
DC Voltage Input - Minimum
12 V DC
Number of Display Digits
4
Display Features
High Contrast
DC Voltage Input - Maximum
24 V DC
Digital Display Screen Type
LCD
NEMA Enclosure Rating
12, 4
Product Type
Shunt Meter
Terminal Connection Type
Internal Removable Terminal Blocks

Description

Shunt Meter, DC Current, Input Range 0.5 mV, Accuracy 0.1 Percent, Display Span 9999, Display Digits 4, Posistive Digit LCD Display, Use With External Shunts on Low Side, Fits 68mm x 68mm, Connector Type Screw Terminal, RS-485 Interface, Output 4-20mA, 4; 12 NEMA Rating, Mounting Screws, Includes Mounting Brackets, Screws, Manufacturers Warranty Length 3 yr
