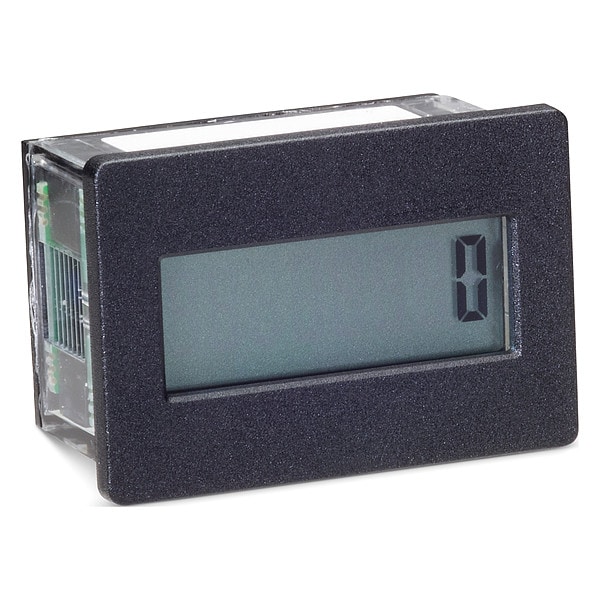

Trumeter Electronic Counter 3400-2010 - main

Electronic Counter

  • Mfr # 3400-2010

  • Zoro # G0658695

product price: $29.69
/ea

Key Features

Mounting
Rectangular Flush
Reset Type
Remote Signal
Display
LCD
Number of Digits
8
Max. Counts per Second
40
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3400-2010
Zoro #
G0658695
UPC #
-
Country of Origin
Malaysia

Dimensions

Width
1.6 in
Height
1.1 in
Character Height
0.28 in
Overall Height
1 1/8 in
Overall Width
1 5/8 in
Overall Depth
1 1/8 in
Digit Height - Maximum
0.28 in

Details

Item
Electronic Counter
Mounting
Rectangular Flush
Reset Type
Remote Signal
Display
LCD
Number of Digits
8
Max. Counts per Second
40
Input Voltage
10 to 300V DC; 20 to 300V AC; 3 to 30V DC
Input Signal
20VAC (VIH)/10VDC (Minimum), 3VAC (VIL)/3VDC (Maximum)
Fits
1.476 in x 0.965 in Panel Cutout
Preset
Yes
Special Features
They are Totally Sealed with the Optional Gasket and have a High-Visibility Polarized Lens
Includes
Mounting Clip
Standards
CE Approved, cUL, REACH, RoHS, UKCA, UL, WEEE
Connector Type
Spade Terminal
IP Rating
IP66
Accuracy
100%
Prescaling Range
9999,9999
Power Required
Battery
NEMA Rating
12, 4
Features
Indoor and Outdoor Applications, Sealed with the Optional Gasket and have a Polarized Lens
Power Type
Battery Powered
Certifications
CE, cUL, IP66, NEMA 4 & 12, UL
Housings
2-Hole, 3-Hole, Flush Rectangular, SAE Round, Snap-In
Reset Option
Non-Reset, Optional Remote Reset
Digits
8 Digits
Counter Type
Totalizing Counter
Input
10 - 300V DC, 20 - 300V AC, 3 - 30V DC
Includes Mounting Hardware
Included
Digit Color
Black
Count Speed - Maximum
40 Hz
Display Features
High Contrast
Counts per Second - Maximum
40
NEMA Enclosure Rating
12, 4
Terminal Connection Type
Tab
Power Source
Battery
Mounting Style
Flush
Counter Display Type
LCD

Description

Electronic Counter, Number of Digits 8, LCD Display, Character Height 0.28 in, Max. Counts per Second 40, Input Signal 20VAC (VIH)/10VDC (Minimum), 3VAC (VIL)/3VDC (Maximum), Output Rating Not Applicable, Mounting Rectangular Flush, Diameter Not Applicable, Height 1.1 in, Width 1.6 in, Preset Yes, Power Required Battery, Prescaling Range 9999,9999, Reset Type Remote Signal, Connector Type Spade Terminal
