  9. Electronic Counter, 8 Digits, 3 Preset, LCD

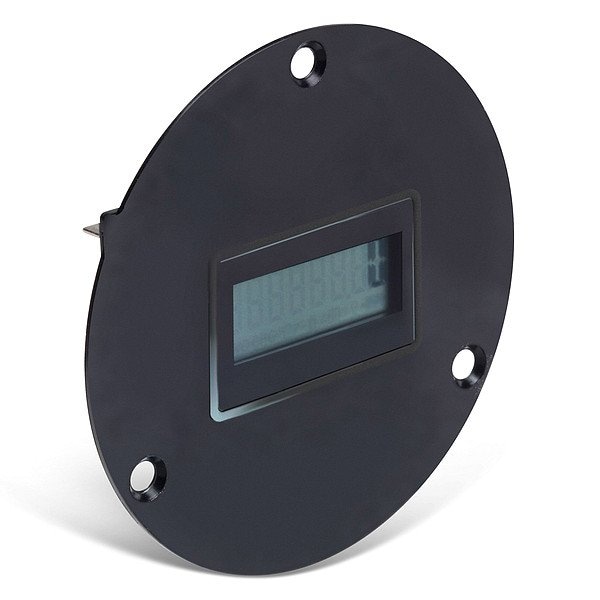

Trumeter Electronic Counter, 8 Digits, 3 Preset, LCD 3400-1000 - main

Electronic Counter, 8 Digits, 3 Preset, LCD

  • Mfr # 3400-1000

  • Zoro # G2080477

product price: $30.99
/ea

Key Features

Reset Type
No Reset
Number of Digits
8
Max. Counts per Second
40
Preset
3
NEMA Rating
12, 4, 4X
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3400-1000
Zoro #
G2080477
UPC #
-
Country of Origin
Malaysia

Dimensions

Depth
1.09 in
Diameter
2.87 in
Character Height
0.28 in Black Numbers on White Background
Overall Diameter
2 7/8 in
Digit Height - Maximum
0.28 in
Overall Depth
1 1/8 in
Cutout Height
1 1/2 in

Details

Item
Electronic Counter
Reset Type
No Reset
Number of Digits
8
Max. Counts per Second
40
Preset
3
NEMA Rating
12, 4, 4X
Standards
CE Approved, cUL, REACH, RoHS, UKCA, UL, WEEE
Special Features
Totally Sealed From Moisture And Dirt, Programmable Output Thresholds, Front Panel Programmable
Display
LCD
Fits
1.45 in x 0.95 in Panel Cutout
Min. On/Off Pulse
1 msec
Scaler
No
IP Rating
IP66
Output
Open-Drain MOSFET
Mounting
3-Hole Round
Accuracy
100%
Power Required
Self Powered (15+ yr Battery)
Series
34
Interface
None
Input Signal
10 to 300V DC, 20 to 300V AC (50/60 Hz)
Connector Type
Tabs
Relay
No
Input Voltage
10 to 300V DC; 20 to 300V AC; 3 to 30V DC
Features
Indoor and Outdoor Applications, Optional Gasket and Polarized Lens
Digits
8 Digits
Power Type
Battery Powered
Input
10 - 300V DC, 20 - 300V AC, 3 - 30V DC
Certifications
CE, cUL, IP66, NEMA 4 & 12, UL
Reset Option
Non-Reset, Optional Remote Reset
Housings
2-Hole, 3-Hole, Flush Rectangular, SAE Round, Snap-In
Counter Type
Totalizing Counter
Mounting Style
Panel
Display Features
High Contrast
Count Speed - Maximum
40 Hz
Digit Color
Black
Power Source
Battery
Counts per Second - Maximum
40
Counter Display Type
LCD
NEMA Enclosure Rating
12, 4
Terminal Connection Type
Tab

Description

Electronic Counter, Number of Digits 8, LCD Display, Character Height 0.28 in Black Numbers on White Background, Max. Counts per Second 40, Input Signal 10 to 300V DC, 20 to 300V AC (50/60 Hz), Output Rating Not Applicable, Output Open-Drain MOSFET, Mounting 3-Hole Round, Diameter 2.87 in, Depth 1.09 in, Series 34, Scaler No, Preset 3, Power Required Self Powered (15+ yr Battery), Min. On/Off Pulse 1 msec, Prescaling Range -, Reset Type No Reset, Interface None, Connector Type Tabs
