Shop TRUMETER

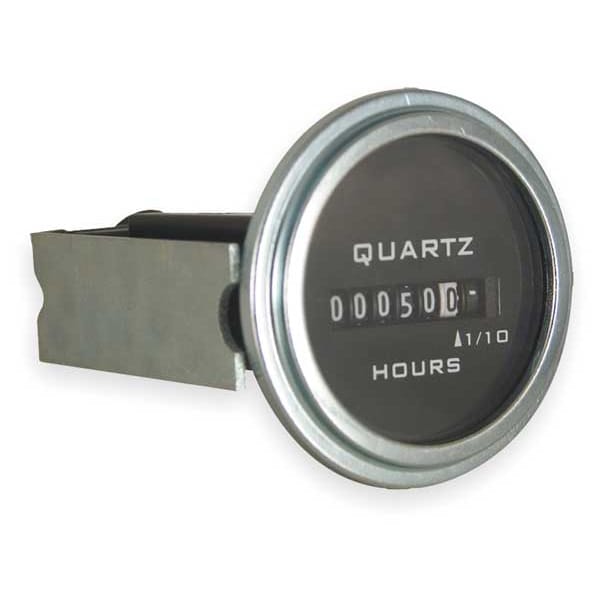

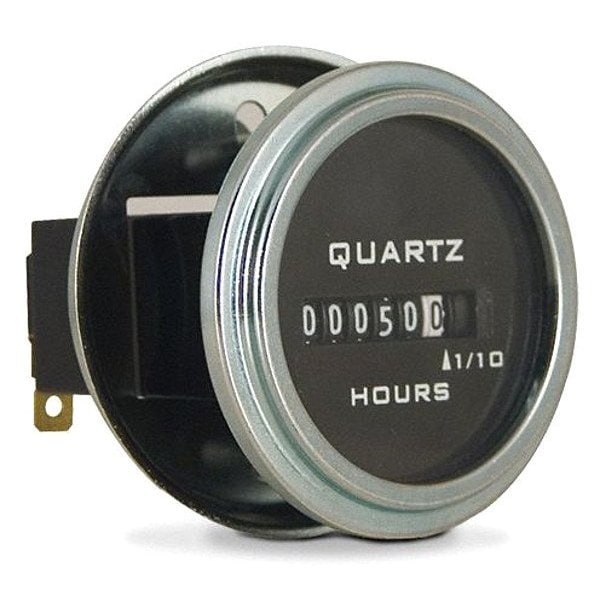

Hour Meter, Electrical, Round, 10-80VDC

  • Mfr # 732-0023
  • Zoro # G3251692
product price:
$
34.49
/ea

Key Features

Display Type
Electromechanical
Reset Type
No Reset
Display Units
Hours/Tenths
Number of Digits
6
Operating Voltage
10 to 80V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
732-0023
Zoro #
G3251692
UPC #
-
Country of Origin
India

Dimensions

Bezel Face Size
2.50 in dia
Bezel To Back Length
2.89 in
Depth
2.89 in
Overall Depth
2 1/2 in
Overall Diameter
2 1/2 in
Cutout Diameter
2 in
Bezel Face Diameter
2 1/4 in

Details

Item
Hour Meter
Display Type
Electromechanical
Reset Type
No Reset
Display Units
Hours/Tenths
Number of Digits
6
Operating Voltage
10 to 80V DC
Time Range
0 to 99999.9
Bezel Face Shape
Round
Bezel Face Type
Flush Mount
Temp. Range
-40 Degrees to 185 Degrees F
Input Type
Rotary Shaft, Clockwise, Right Hand, Spur Drive
Terminal Type
1/4 in Spade Connector
Material of Construction
Black Polymer
Hz
Does Not Apply
Mounting Method
2.50 in dia Stirrup
Ambient Temp. Range
-40 Degrees to 185 Degrees F
Fits
2.0 in dia Opening
Fits Panel Cut Out
2.00 in dia
Elapsed Time To
9,999.9
Standards
CE, CUL, RoHS, UKCA, UL
Digits
6 Digits
Housings
2-Hole, 3-Hole, Cup Mount, Flush Rectangular, SAE Round, Square, Stirrup Mount
Certifications
CE, cUL, IP66, NEMA 4 & 12, ROHS, UKCA, UL
Timer Type
Hour Meter
Reset Option
Non-Reset
Power Type
Electro-Mechanical
Input
10-80V DC
Operating Temperature - Maximum
185 Degrees F
Mounting Style
Panel
Hour Unit Increment
Tenth
Includes Mounting Hardware
Included
Operating Temperature - Minimum
-40 Degrees F
Input Voltage - Maximum
80 V DC
NEMA Enclosure Rating
12, 4
Counter Display Type
Analog
Mount Securing Method
Stirrup
Display Span - Maximum
99,999.9
Input Voltage - Minimum
10 V DC

Description

Hour Meter, Display Type Electromechanical, Time Range 0 to 99999.9, Bezel Face Size 2.50 in dia, Bezel Face Shape Round, Bezel Face Type Flush Mount, Elapsed Time To 9,999.9, Operating Voltage 10 to 80V DC, Hz -, Number of Digits 6, Display Units Hours/Tenths, Bezel To Back Length 2.89 in, Depth 2.89 in, Ambient Temp. Range -40 Degrees to 185 Degrees F, Material of Construction Black Polymer, Input Type -, Reset Type No Reset, Temp. Range -40 Degrees to 185 Degrees F, Fits 2.0 in dia Opening
